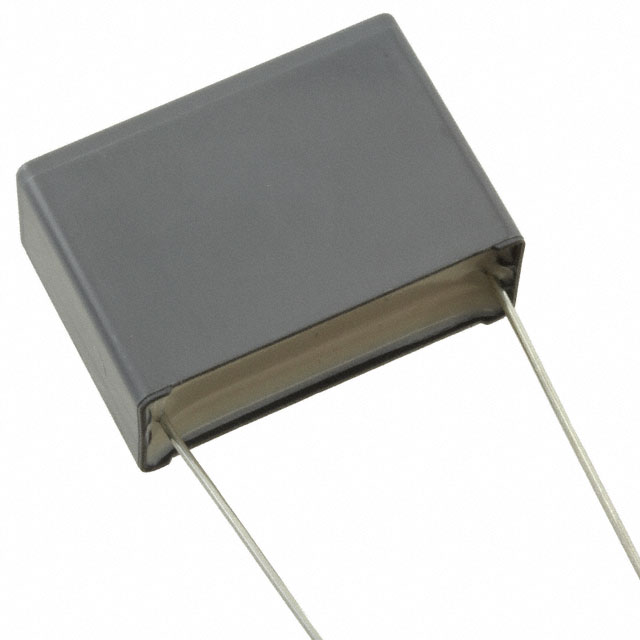

R75RW Series

Manufacturer: KEMET

Catalog

CAP FILM 0.22UF 5% 1.25KVDC RAD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Termination	Dielectric Material	Voltage Rating - DC	Voltage Rating - DC	Package / Case	Mounting Type	Lead Spacing	Lead Spacing	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage Rating - AC	Applications	ESR (Equivalent Series Resistance)	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ratings
KEMET R75RW32205030J	-55 C	105 ░C	0.22 µF	0.87 in	22.1 mm	5 %	PC Pins	Polypropylene (PP) Metallized	1250 V	1.25 kV	Radial	Through Hole	37.5 mm	1.476 in	0.433 in	11 mm	41.5 mm	1.634 in	600 V	DV/DT High Frequency High Pulse Switching	5.1 mOhm
KEMET R75RW339050L3J	-55 C	105 ░C	0.39 µF	0.594 in	15.1 mm	5 %	PC Pins	Polypropylene (PP) Metallized	1250 V	1.25 kV	Radial	Through Hole	37.5 mm	1.476 in	0.945 " 24 mm			1.634 in 41.5 mm	600 V	DV/DT High Frequency High Pulse Switching	8.2 mOhms
KEMET R75RW347050L4J	-55 C	105 ░C	0.47 µF	0.752 "		5 %	PC Pins	Polypropylene (PP) Metallized	1250 V	1.25 kV	Radial	Through Hole	37.5 mm	1.476 in	0.945 " 24 mm			1.634 in 41.5 mm	600 V	DV/DT High Frequency High Pulse Switching	6.8 mOhms	19.1 mm
KEMET R75RW412050H4J	-55 C	125 °C	1.2 µF			5 %	PC Pins	Polypropylene (PP) Metallized	1250 V	1.25 kV	Radial	Through Hole	37.5 mm	1.476 in	0.787 in	20 mm	41.5 mm	1.634 in	600 V	Automotive High Frequency Switching High Pulse DV/DT	4 mOhms		40.1 mm	1.579 in	AEC-Q200
