2314870 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

5P,2MM,BB,REC,SRVT,2.0,0.76AU,TB

Part	Insulation Material	Contact Finish - Mating	Material Flammability Rating	Contact Material	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Features	Insulation Color	Insulation Height	Insulation Height	Fastening Type	Contact Shape	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Connector Type	Termination	Contact Type	Number of Positions
TE Connectivity Raychem Cable Protection 2314870-5	Liquid Crystal Polymer (LCP)	Gold	UL94 V-0	Phosphor Bronze	Tin	125 °C	-40 °C	1	0.079 in	2 mm	All	Pick and Place	Black	0.177 in	4.5 mm	Push-Pull	Square	2 A	30 Áin	0.76 Ám	125 VDC	0.079 "	2 mm	0.3 µm	12 µin	Through Hole	Receptacle	Solder	Female Socket

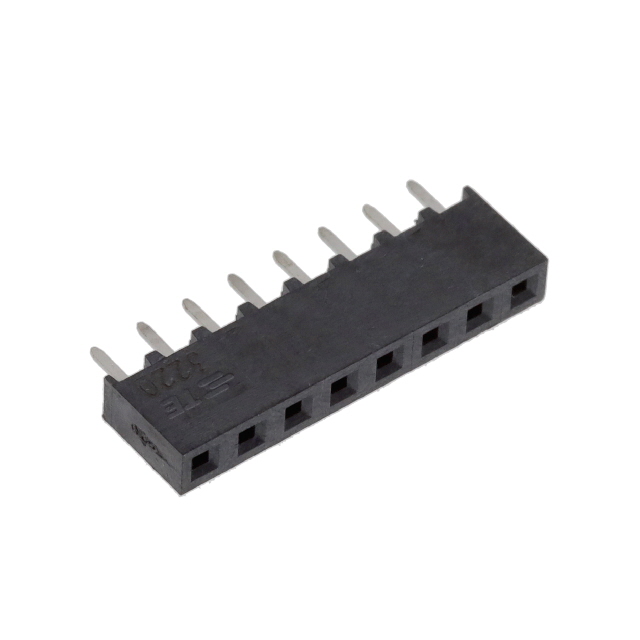

TE Connectivity Raychem Cable Protection 2314870-8	Liquid Crystal Polymer (LCP)	Gold	UL94 V-0	Phosphor Bronze	Tin	125 °C	-40 °C	1	0.079 in	2 mm	All	Pick and Place	Black	0.177 in	4.5 mm	Push-Pull	Square	2 A	30 Áin	0.76 Ám	125 VDC	0.079 "	2 mm	0.3 µm	12 µin	Through Hole	Receptacle	Solder	Female Socket	8
TE Connectivity Raychem Cable Protection 2314870-3	Liquid Crystal Polymer (LCP)	Gold	UL94 V-0	Phosphor Bronze	Tin	125 °C	-40 °C	1	0.079 in	2 mm	All	Pick and Place	Black	0.177 in	4.5 mm	Push-Pull	Square	2 A	30 Áin	0.76 Ám	125 VDC	0.079 "	2 mm	3 µm	118.1 µin	Through Hole	Receptacle	Solder	Female Socket
TE Connectivity Raychem Cable Protection 2314870-2	Liquid Crystal Polymer (LCP)	Gold	UL94 V-0	Phosphor Bronze	Tin	125 °C	-40 °C	1	0.079 in	2 mm	All	Pick and Place	Black	0.177 in	4.5 mm	Push-Pull	Square	2 A	30 Áin	0.76 Ám	125 VDC	0.079 "	2 mm	3 µm	118.1 µin	Through Hole	Receptacle	Solder	Female Socket	2

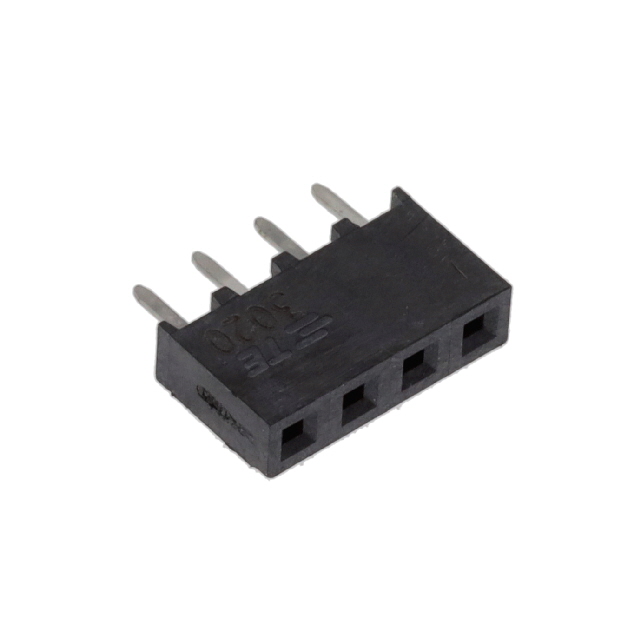

TE Connectivity Raychem Cable Protection 2314870-4	Liquid Crystal Polymer (LCP)	Gold	UL94 V-0	Phosphor Bronze	Tin	125 °C	-40 °C	1	0.079 in	2 mm	All	Pick and Place	Black	0.177 in	4.5 mm	Push-Pull	Square	2 A	30 Áin	0.76 Ám	125 VDC	0.079 "	2 mm	0.3 µm	12 µin	Through Hole	Receptacle	Solder	Female Socket	4

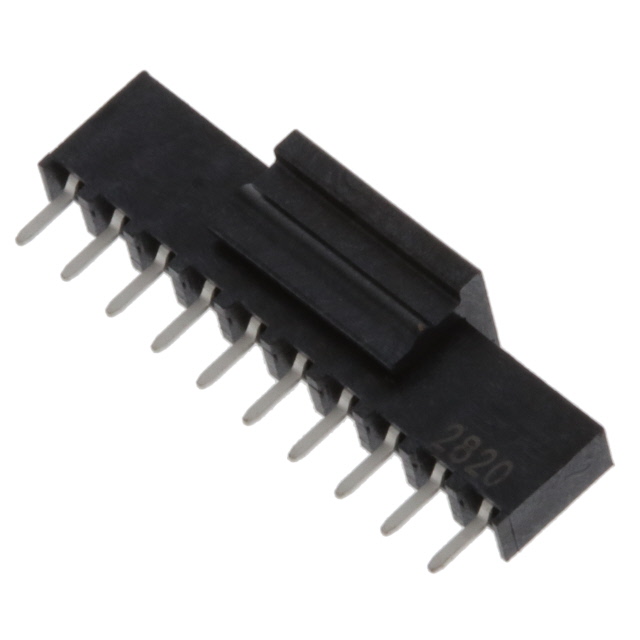

TE Connectivity Raychem Cable Protection 1-2314870-0	Liquid Crystal Polymer (LCP)	Gold	UL94 V-0	Phosphor Bronze	Tin	125 °C	-40 °C	1	0.079 in	2 mm	All	Pick and Place	Black	0.177 in	4.5 mm	Push-Pull	Square	2 A	30 Áin	0.76 Ám	125 VDC	0.079 "	2 mm	3 µm	118.1 µin	Through Hole	Receptacle	Solder	Female Socket	10
TE Connectivity Raychem Cable Protection 2314870-6	Liquid Crystal Polymer (LCP)	Gold	UL94 V-0	Phosphor Bronze	Tin	125 °C	-40 °C	1	0.079 in	2 mm	All	Pick and Place	Black	0.177 in	4.5 mm	Push-Pull	Square	2 A	30 Áin	0.76 Ám	125 VDC	0.079 "	2 mm	3 µm	118.1 µin	Through Hole	Receptacle	Solder	Female Socket	6
