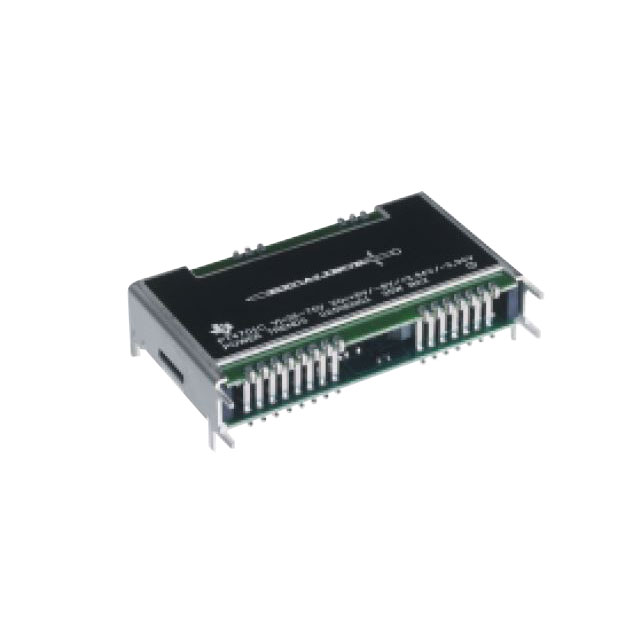

PT4711 Series

Catalog

DC DC CONVERTER +/-15V 45W

Part	Type	Efficiency	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Package / Case	Features	Mounting Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output 1	Power (Watts)	Voltage - Isolation	Number of Outputs
Texas Instruments PT4711C	Isolated Module	86 %	36 V	75 V	-15 V	1.5 A	1.5 A	21-SMD Module	OCP OTP Remote On/Off UVLO	Surface Mount	ITE (Commercial)	85 °C	-40 °C	65.5 mm	12 mm	0.47 "	2.58 "	1.62 in	41.1 mm	15 V	45 W	1.5 kV	2
Texas Instruments PT4711A	Isolated Module	86 %	36 V	75 V	15 V	1.5 A	1.5 A	21-SIP Module		Through Hole Right Angle	ITE (Commercial)	85 °C	-40 °C							15 V	45 W	1.5 kV	2
