5240-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

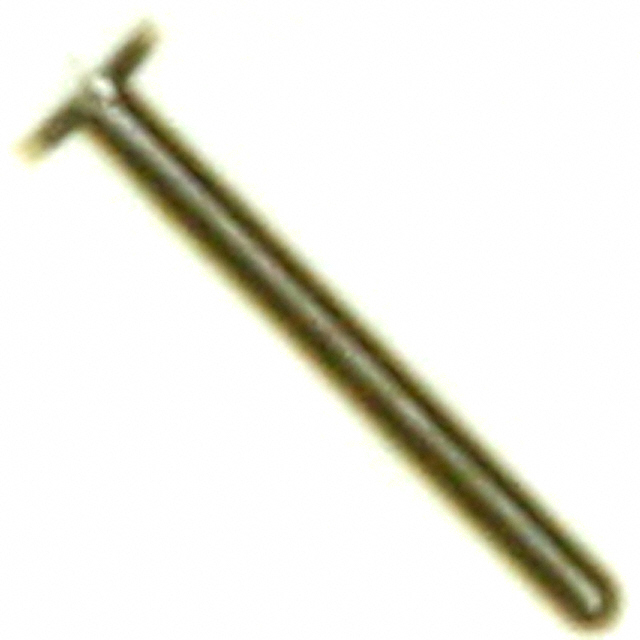

CONN PC PIN CIRC 0.025DIA GOLD
| Part | Mounting Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Contact Finish Thickness | Contact Finish Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Terminal Type | Length - Overall [x] | Length - Overall [x] | Contact Finish | Termination | Length - Above Flange [x] | Length - Above Flange [x] | Contact Material | Terminal Style | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Through Hole | 1.57 mm | 0.062 in | 0.64 mm | 0.025 in | 0.25 Ám | 10 Áin | 0.029 in | 0.74 mm | PC Pin | 0.24 in | 6.1 mm | Gold | Solder | 5.89 mm | 0.232 in | Brass Alloy | Nail Head Single End | Non-Insulated |
