ATS-09E Series
Manufacturer: Advanced Thermal Solutions Inc.
Catalog

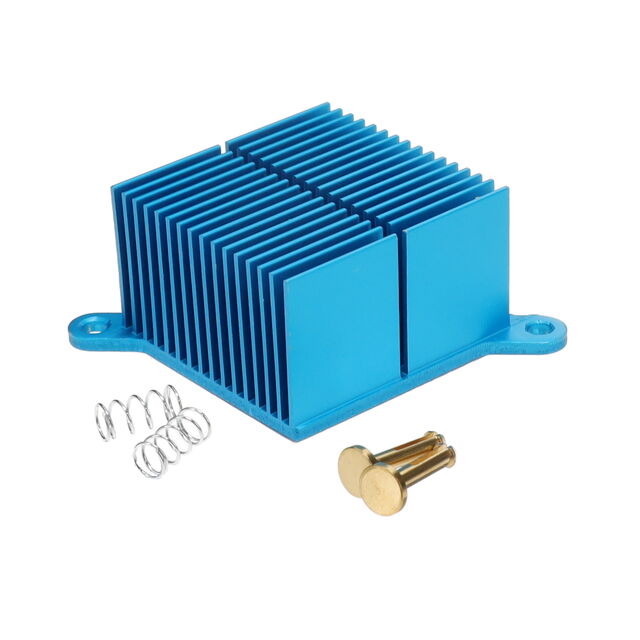

HEATSINK 40X40X35MM L-TAB T412
...
| Part | Package Cooled | Attachment Method | Material Finish | Material | Type | Width [x] | Width [x] | Thermal Resistance @ Forced Air Flow | Fin Height | Fin Height | Shape | Length [x] | Length [x] | Fin Height [z] | Fin Height [z] | Width | Length | Length | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Advanced Thermal Solutions Inc. | ASIC BGA CPU LGA | Push Pin | Blue Anodized | Aluminum | Top Mount | 1.575 in | 40 mm | 2.9 °C/W | 1.378 in | 35 mm | Fins Square | ||||||||
 Advanced Thermal Solutions Inc. | ASIC BGA CPU LGA | Push Pin | Blue Anodized | Aluminum | Top Mount | 2.362 in | 60 mm | 12.98 °C/W | Fins Square | 60 mm | 2.362 in | ||||||||
 Advanced Thermal Solutions Inc. | ASIC BGA CPU LGA | Push Pin | Blue Anodized | Aluminum | Top Mount | 1.772 in | 20.39 °C/W | Fins Square | 1.772 " | 0.394 in | 10 mm | 45 mm | 45 mm | ||||||
 Advanced Thermal Solutions Inc. | ASIC BGA CPU LGA | Push Pin | Blue Anodized | Aluminum | Top Mount | 1.772 in | 14.61 °C/W 100 LFM | 0.59 " | 15 mm | Fins Square | 1.772 " | 45 mm | 45 mm | ||||||
 Advanced Thermal Solutions Inc. | ASIC BGA CPU LGA | Push Pin | Blue Anodized | Aluminum | Top Mount | 1.378 in | 13.48 °C/W 100 LFM | Fins Square | 35 mm | 1.378 in | 0.394 in | 10 mm | 35 mm | ||||||
 Advanced Thermal Solutions Inc. | ASIC BGA CPU LGA | Push Pin | Blue Anodized | Aluminum | Top Mount | 0.984 in | 9.1 °C/W | Fins Square | 0.79 in | 20 mm | 25 mm | 25 mm | 0.984 in | ||||||
Advanced Thermal Solutions Inc. | ASIC BGA CPU LGA | Push Pin | Blue Anodized | Aluminum | Top Mount | 1.575 in | 40 mm | 5.47 °C/W 100 LFM | Fins Square | 0.79 in | 20 mm | ||||||||
 Advanced Thermal Solutions Inc. | ASIC BGA CPU LGA | Push Pin | Blue Anodized | Aluminum | Top Mount | 2.126 " | 54 mm | 9.04 °C/W 100 LFM | Fins Square | 54 mm | 2.126 " | 0.394 in | 10 mm | ||||||
Advanced Thermal Solutions Inc. | ASIC BGA CPU LGA | Push Pin | Blue Anodized | Aluminum | Top Mount | 1.378 in | 35 mm | Fins Square | 30 mm | 1.181 in | 30 mm | 1.181 in | |||||||
 Advanced Thermal Solutions Inc. | ASIC BGA CPU LGA | Push Pin | Blue Anodized | Aluminum | Top Mount | 1.575 in | 40 mm | 25.35 °C/W 100 LFM | Fins Square | 0.5 in | 12.7 mm |
