LDC1314-Q1 Series

4-Ch, 12-bit, general purpose automotive inductance to digital converter

Catalog

4-Ch, 12-bit, general purpose automotive inductance to digital converter

Part	Supplied Contents	Sensor Type	Utilized IC / Part	Voltage - Supply	Voltage - Supply	Interface	Embedded	Type	Sampling Rate (Per Second)	Qualification	Grade	Voltage Supply Source	Package / Case	Resolution (Bits)	Number of Channels	Mounting Type	Data Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package
Texas Instruments LDC1314EVM	Board(s)	Inductive Proximity	LDC1314	5 V	USB	USB	16-Bit MCU

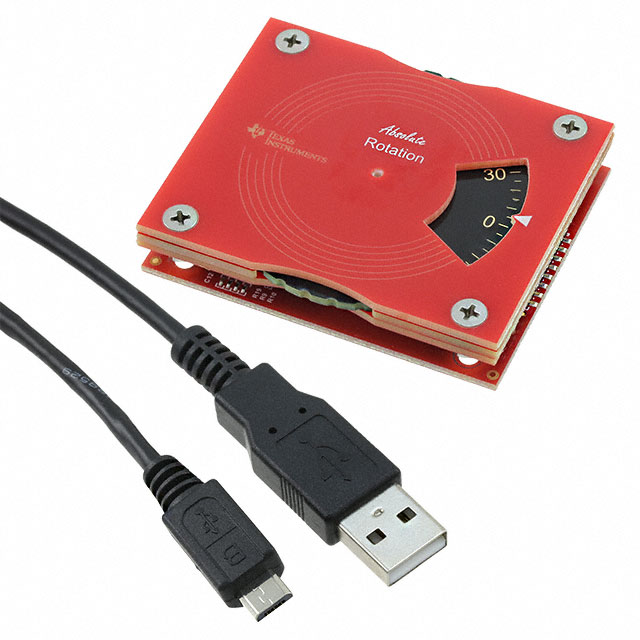

Texas Instruments LDC1314DIAL-EVM	Board(s)	Inductive Proximity	LDC1314	5 V	USB
Texas Instruments LDC1314QRGHTQ1								Inductance-to-Digital Converter	13.3 k	AEC-Q100	Automotive	Single Supply	16-WFQFN Exposed Pad	12 b	4	Surface Mount	I2C	2.7 V	3.6 V	125 °C	-40 °C	16-WQFN (4x4)

Catalog

4-Ch, 12-bit, general purpose automotive inductance to digital converter

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1:–40°C to +125°CAmbient Operating Temperature RangeDevice HBM ESD Classification Level 2Device CDM ESD Classification Level C5Easy-to-use – Minimal Configuration RequiredMeasure up to 4 Sensors with One ICMultiple Channels Support Environmental andAging CompensationMulti-Channel Remote Sensing Provides LowestSystem CostPin-Compatible Medium and High-resolution OptionsLDC1312-Q1/LDC1314-Q1: 2/4-ch 12-bit LDCLDC1612-Q1/LDC1614-Q1: 2/4-ch 28-bit LDCSupports Wide Sensor Frequency Range of 1kHzto 10MHzPower Consumption:35 µA Low Power Sleep Mode200 nA Shutdown Mode3.3V OperationSupport Internal or External Reference ClockImmune to DC Magnetic Fields and MagnetsQualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1:–40°C to +125°CAmbient Operating Temperature RangeDevice HBM ESD Classification Level 2Device CDM ESD Classification Level C5Easy-to-use – Minimal Configuration RequiredMeasure up to 4 Sensors with One ICMultiple Channels Support Environmental andAging CompensationMulti-Channel Remote Sensing Provides LowestSystem CostPin-Compatible Medium and High-resolution OptionsLDC1312-Q1/LDC1314-Q1: 2/4-ch 12-bit LDCLDC1612-Q1/LDC1614-Q1: 2/4-ch 28-bit LDCSupports Wide Sensor Frequency Range of 1kHzto 10MHzPower Consumption:35 µA Low Power Sleep Mode200 nA Shutdown Mode3.3V OperationSupport Internal or External Reference ClockImmune to DC Magnetic Fields and Magnets

Description

The LDC1312-Q1 and LDC1314-Q1 are 2- and 4-channel, 12-bit inductance to digital converters (LDCs) for inductive sensing solutions. With multiple channels and support for remote sensing, the LDC1312-Q1 and LDC1314-Q1 enable the performance and reliability benefits of inductive sensing to be realized at minimal cost and power. The products are easy to use, only requiring that the sensor frequency be within 1 kHz and 10 MHz to begin sensing. The wide 1 kHz to 10 MHz sensor frequency range also enables use of very small PCB coils, further reducing sensing solution cost and size. The LDC1312-Q1 and LDC1314-Q1 offer well-matched channels, which allow for differential and ratiometric measurements. This enables designers to use one channel to compensate their sensing for environmental and aging conditions such as temperature, humidity, and mechanical drift. Given their ease of use, low power, and low system cost these products enable designers to greatly improve on existing sensing solutions and to introduce brand new sensing capabilities to products in all markets, especially consumer and industrial applications. Inductive sensing offers better performance, reliability, and flexibility than competitive sensing technologies at lower system cost and power. The LDC1312-Q1 and LDC1314-Q1 are easily configured via an I2C interface. The two-channel LDC1312-Q1 is available in a WSON-12 package and the four-channel LDC1314-Q1 is available in a WQFN-16 package. The LDC1312-Q1 and LDC1314-Q1 are 2- and 4-channel, 12-bit inductance to digital converters (LDCs) for inductive sensing solutions. With multiple channels and support for remote sensing, the LDC1312-Q1 and LDC1314-Q1 enable the performance and reliability benefits of inductive sensing to be realized at minimal cost and power. The products are easy to use, only requiring that the sensor frequency be within 1 kHz and 10 MHz to begin sensing. The wide 1 kHz to 10 MHz sensor frequency range also enables use of very small PCB coils, further reducing sensing solution cost and size. The LDC1312-Q1 and LDC1314-Q1 offer well-matched channels, which allow for differential and ratiometric measurements. This enables designers to use one channel to compensate their sensing for environmental and aging conditions such as temperature, humidity, and mechanical drift. Given their ease of use, low power, and low system cost these products enable designers to greatly improve on existing sensing solutions and to introduce brand new sensing capabilities to products in all markets, especially consumer and industrial applications. Inductive sensing offers better performance, reliability, and flexibility than competitive sensing technologies at lower system cost and power. The LDC1312-Q1 and LDC1314-Q1 are easily configured via an I2C interface. The two-channel LDC1312-Q1 is available in a WSON-12 package and the four-channel LDC1314-Q1 is available in a WQFN-16 package.
