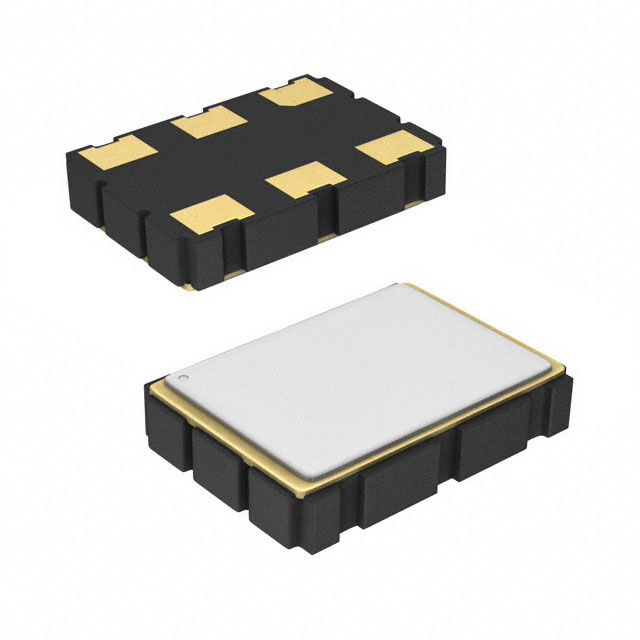

SG5032VAN Series

Manufacturer: EPSON

Catalog

STANDARD CLOCK OSCILLATORS XTAL OSC 2.5~3.3V +/-50PPM -40~85C 250TR

Part	Current - Supply (Disable) (Max) [Max]	Output	Frequency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Base Resonator [custom]	Current - Supply (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Frequency Stability	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Function
EPSON SG5032VAN 200.000000M-KJGA3	20 mA	LVDS	200 MHz	3.2 mm	0.126 in	5 mm	0.197 in	1.2 mm	0.047 "	Crystal	30 mA	6-SMD No Lead	85 °C	-40 C	50 ppm	5	6-SMD	3.2	XO (Standard)	2.5 V	3.3 V	Surface Mount	Enable/Disable
EPSON SG5032VAN 322.265625M-KEGA0	20 mA	LVDS	322.265625 MHz	3.2 mm	0.126 in	5 mm	0.197 in	1.2 mm	0.047 "	Crystal	30 mA	6-SMD No Lead	85 °C	-40 C	30 ppm	5	6-SMD	3.2	XO (Standard)	2.5 V	3.3 V	Surface Mount	Enable/Disable
EPSON SG5032VAN 312.500000M-KJGAB		LVDS	312.5 MHz	3.2 mm	0.126 in	5 mm	0.197 in	1.2 mm	0.047 "	Crystal	30 mA	6-SMD No Lead	85 °C	-40 C	50 ppm	5	6-SMD	3.2	XO (Standard)	2.5 V	3.3 V	Surface Mount	Enable/Disable
EPSON SG5032VAN 100.000000M-KEGA3		LVDS	100 MHz	3.2 mm	0.126 in	5 mm	0.197 in	1.2 mm	0.047 "	Crystal	30 mA	6-SMD No Lead	85 °C	-40 C	30 ppm	5	6-SMD	3.2	XO (Standard)	2.5 V	3.3 V	Surface Mount	Enable/Disable
EPSON SG5032VAN 312.500000M-KEGA3		LVDS	312.5 MHz	3.2 mm	0.126 in	5 mm	0.197 in	1.2 mm	0.047 "	Crystal	30 mA	6-SMD No Lead	85 °C	-40 C	30 ppm	5	6-SMD	3.2	XO (Standard)	2.5 V	3.3 V	Surface Mount	Enable/Disable
EPSON SG5032VAN 250.000000M-KEGAB	20 mA	LVDS	250 MHz	3.2 mm	0.126 in	5 mm	0.197 in	1.2 mm	0.047 "	Crystal	30 mA	6-SMD No Lead	85 °C	-40 C	30 ppm	5	6-SMD	3.2	XO (Standard)	2.5 V	3.3 V	Surface Mount	Enable/Disable
EPSON SG5032VAN 78.125000M-KJGAB		LVDS	78.125 MHz	3.2 mm	0.126 in	5 mm	0.197 in	1.2 mm	0.047 "	Crystal	30 mA	6-SMD No Lead	85 °C	-40 C	50 ppm	5	6-SMD	3.2	XO (Standard)	2.5 V	3.3 V	Surface Mount	Enable/Disable
EPSON SG5032VAN 75.000000M-KJGAB		LVDS	75 MHz	3.2 mm	0.126 in	5 mm	0.197 in	1.2 mm	0.047 "	Crystal	30 mA	6-SMD No Lead	85 °C	-40 C	50 ppm	5	6-SMD	3.2	XO (Standard)	2.5 V	3.3 V	Surface Mount	Enable/Disable
EPSON SG5032VAN 400.000000M-KJGAB		LVDS	400 MHz	3.2 mm	0.126 in	5 mm	0.197 in	1.2 mm	0.047 "	Crystal	30 mA	6-SMD No Lead	85 °C	-40 C	50 ppm	5	6-SMD	3.2	XO (Standard)	2.5 V	3.3 V	Surface Mount	Enable/Disable
EPSON SG5032VAN 155.520000M-KEGA3		LVDS	155.52 MHz	3.2 mm	0.126 in	5 mm	0.197 in	1.2 mm	0.047 "	Crystal	30 mA	6-SMD No Lead	85 °C	-40 C	30 ppm	5	6-SMD	3.2	XO (Standard)	2.5 V	3.3 V	Surface Mount	Enable/Disable
