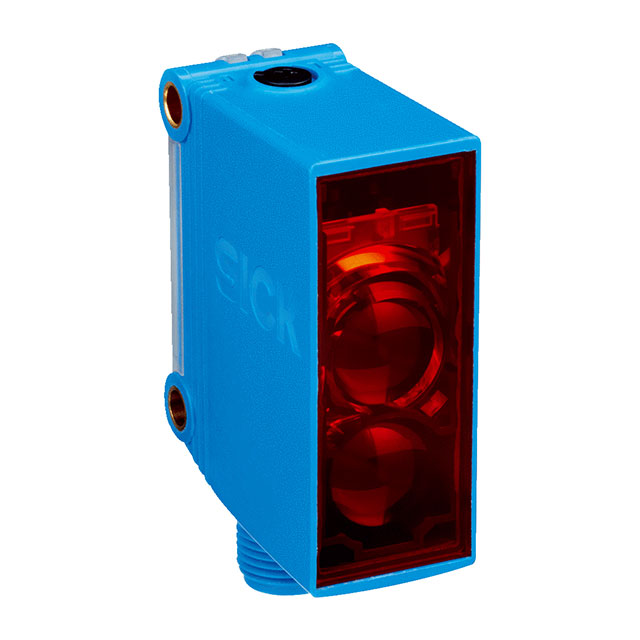

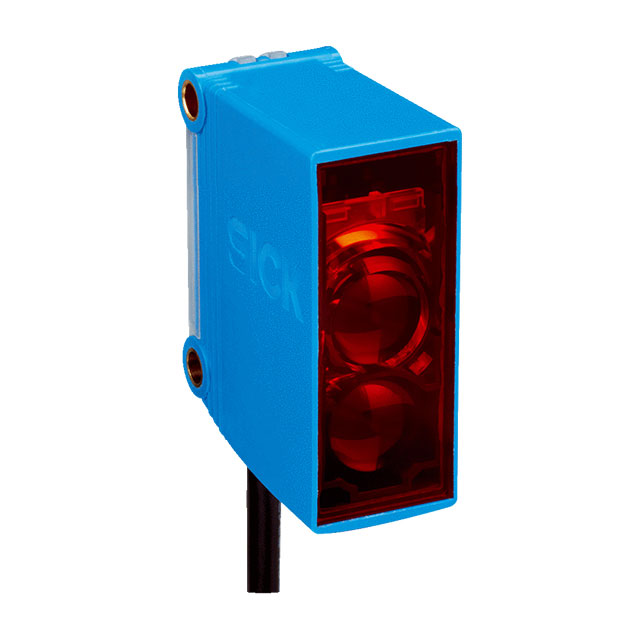

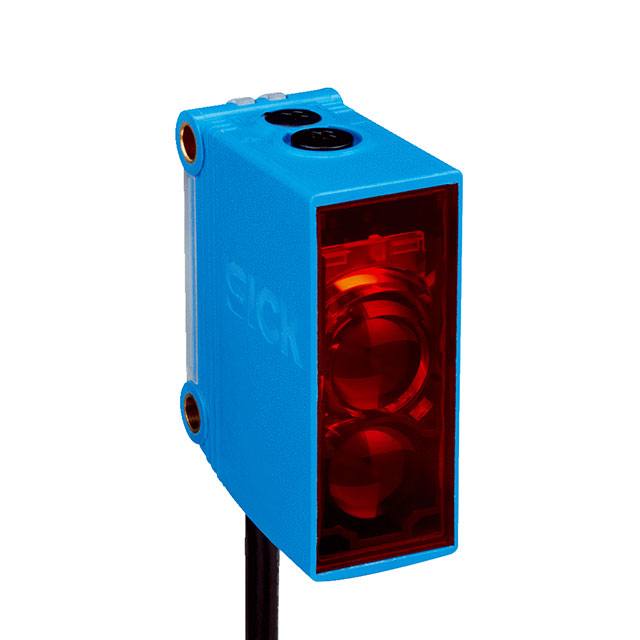

GL10-P Series

Catalog

SENSOR RETROREFLECTIVE 15M PNP

Part	Cable Length	Cable Length	Voltage - Supply [Min]	Voltage - Supply [Max]	Response Time	Light Source	Output Configuration	Sensing Method	Operating Temperature [Max]	Operating Temperature [Min]	Connection Method	Ingress Protection	Adjustment Type	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]
SICK, Inc. 1065877	78.74 "	2 m	10 VDC	30 VDC	500 µs	Red (625nm)	PNP	Retroreflective	60 °C	-30 °C	Cable	IP67
SICK, Inc. 1065878			10 VDC	30 VDC	500 µs	Red (625nm)	PNP	Retroreflective	60 °C	-30 °C	Connector M12	IP67
SICK, Inc. 1065879			10 VDC	30 VDC	500 µs	Red (625nm)	PNP	Retroreflective	60 °C	-30 °C	Connector M12	IP67
SICK, Inc. 1065890			10 VDC	30 VDC	500 µs	Red (625nm)	PNP	Retroreflective	60 °C	-30 °C	Connector M12	IP67	Adjustable Potentiometer
SICK, Inc. 1069046	11.81 "	0.3 m	10 VDC	30 VDC	1 ms	Red (625nm)	PNP	Retroreflective	60 °C	-30 ░C	Cable with Connector	IP67		374.02 in	9.5 m	30 cm	11.81 "
SICK, Inc. 1065886	78.74 "	2 m	10 VDC	30 VDC	500 µs	Red (625nm)	PNP	Retroreflective	60 °C	-30 °C	Cable	IP67	Adjustable Potentiometer
SICK, Inc. 1065887			10 VDC	30 VDC	500 µs	Red (625nm)	PNP	Retroreflective	60 °C	-30 °C	Connector M12	IP67	Adjustable Potentiometer
SICK, Inc. 1065876	78.74 "	2 m	10 VDC	30 VDC	500 µs	Red (625nm)	PNP	Retroreflective	60 °C	-30 °C	Cable	IP67
