3283 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

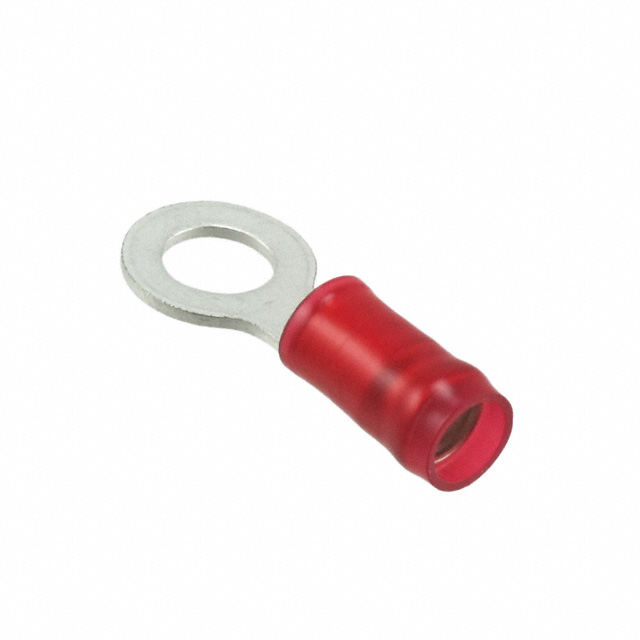

CONN RING CIRC 16-22AWG #10
| Part | Mounting Type | Color | Width - Outer Edges [y] | Width - Outer Edges [y] | Termination | Terminal Type | Wire Gauge [Max] | Wire Gauge [Min] | Insulation | Contact Finish | Stud/Tab Size | Thickness | Thickness | Material - Insulation | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Length - Overall [x] | Length - Overall [x] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | Red | 0.344 in | 8.74 mm | Crimp | Circular | 22 AWG | 16 AWG | Insulated | Tin | 10 Stud | 0.031 in | 0.79 mm | Nylon Polyamide (PA) | 0.14 in | 0.105 in | 3.56 mm | 2.67 mm | 22.25 mm | 0.876 " | Copper |
