ACDA56 Series

Catalog

DISPLAY 7SEG 0.56" DBL BLU 12SMD

Part	Power Dissipation (Max)	Common Pin	Package / Case	Display Type	Millicandela Rating	Color	Number of Characters	Current - Test	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Digit/Alpha Size	Digit/Alpha Size	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Power Dissipation (Max) [Max]	Number of Characters

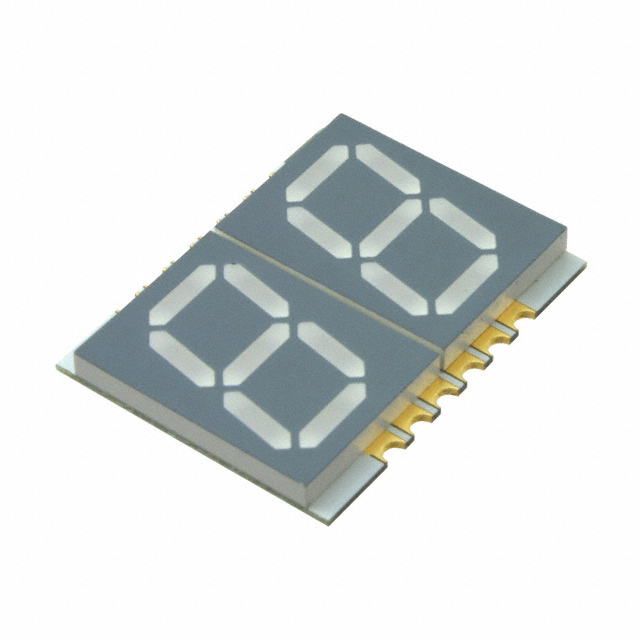

Kingbright ACDA56-51PBWA/A	120 mW	Common Anode	12-SMD No Lead	7-Segment	4 mcd	Blue	2	20 mA	0.669 "	25.3 mm	0.094 "	2.4 mm	0.996 in	17 mm	0.56 in	14.22 mm	468 nm	3.2 V
Kingbright ACDA56-41PBWA/A-F01	120 mW	Common Anode	20-SMD No Lead	7-Segment	9 mcd	Blue	2	20 mA	0.148 in	25.1 mm	0.748 in	19 mm	0.988 "	3.75 mm	0.56 in	14.22 mm	468 nm	3.2 V
Kingbright ACDA56-41SRWA-F01		Common Anode	20-SMD No Lead	7-Segment	26 mcd	Red	2	20 mA	0.148 in	25.1 mm	0.669 in	17 mm	0.988 "	3.75 mm	0.56 in	14.22 mm	660 nm	1.85 V	75 mw
Kingbright ACDA56-41SURKWA-F01		Common Anode	20-SMD No Lead	7-Segment	44 mcd	Red	2	20 mA	0.148 in	25.1 mm	0.669 in	17 mm	0.988 "	3.75 mm	0.56 in	14.22 mm	650 nm	1.95 V	75 mw
Kingbright ACDA56-41QBWA/D-F01	120 mW	Common Anode	20-SMD No Lead	7-Segment	15 mcd	Blue	2	20 mA	0.148 in	25.1 mm	0.669 in	17 mm	0.988 "	3.75 mm	0.56 in	14.22 mm	468 nm	3.3 V
Kingbright ACDA56-41SGWA-F01		Common Anode	20-SMD No Lead	7-Segment	6 mcd	Green	2	20 mA	0.148 in	25.1 mm	0.669 in	17 mm	0.988 "	3.75 mm	0.56 in	14.22 mm	565 nm	2.2 V	62.5 mW

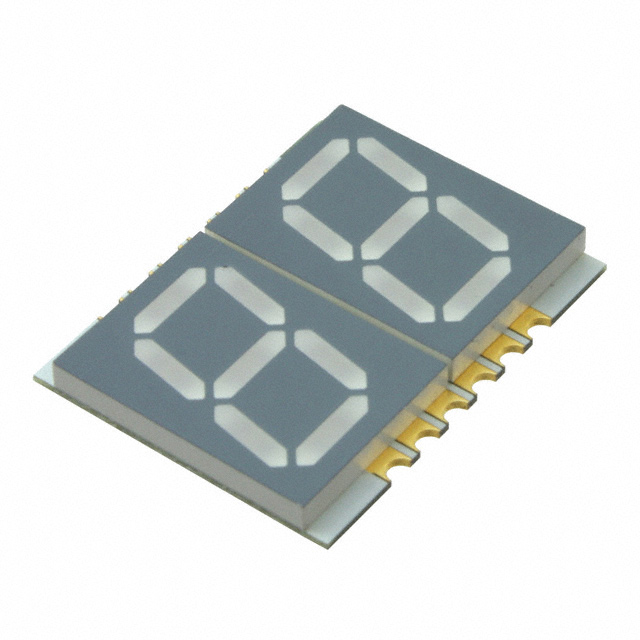

Kingbright ACDA56-51SURKWA		Common Anode	10-SMD No Lead	7-Segment	36 mcd	Red		20 mA	0.094 "	12.5 mm	0.669 in	17 mm	0.492 "	2.4 mm	0.56 in	14.22 mm	650 nm	1.95 V	75 mw	1

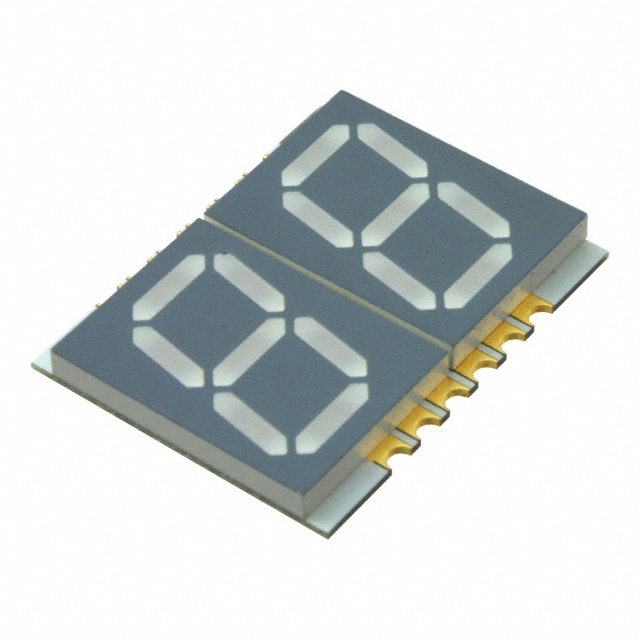

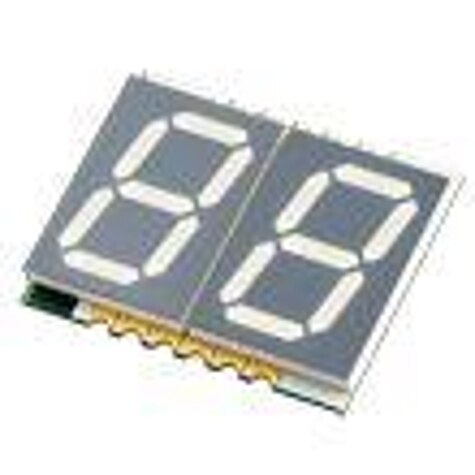

Kingbright ACDA56-51SYKWA		Common Anode	12-SMD No Lead	7-Segment	117 mcd	Yellow	2	20 mA	0.669 "	25.3 mm	0.094 "	2.4 mm	0.996 in	17 mm	0.56 in	14.22 mm	590 nm	2 V	75 mw
Kingbright ACDA56-41EWA-F01		Common Anode	20-SMD No Lead	7-Segment	5.4 mcd	Red	2	10 mA	0.148 in	25.1 mm	0.748 in	19 mm	0.988 "	3.75 mm	0.56 in	14.22 mm	627 nm	2.5 V	75 mw
Kingbright ACDA56-51CGKWA		Common Anode	12-SMD No Lead	7-Segment	26 mcd	Green	2	20 mA	0.669 "	25.3 mm	0.094 "	2.4 mm	0.996 in	17 mm	0.56 in	14.22 mm		2.1 V	75 mw
