SM11B-SH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

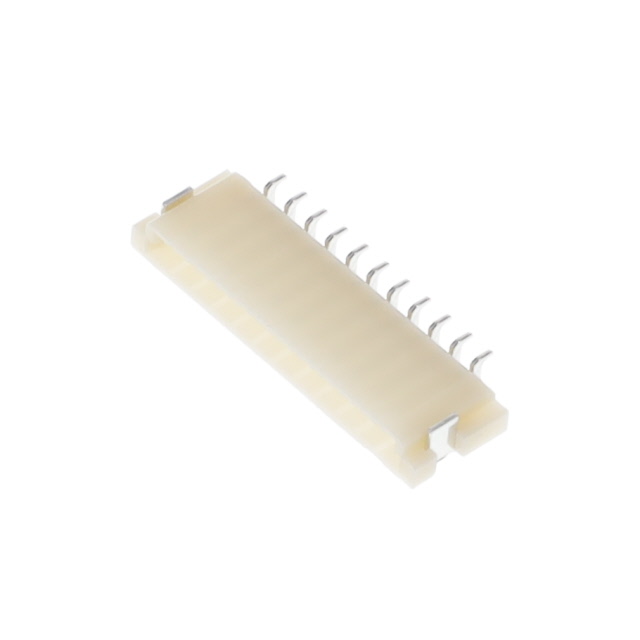

CONN HEADER SMD R/A 11POS 1MM
| Part | Mounting Type | Material Flammability Rating | Connector Type | Voltage Rating | Insulation Height [z] | Insulation Height [z] | Contact Shape | Termination | Pitch - Mating | Pitch - Mating | Insulation Material | Insulation Color | Number of Positions | Style | Contact Finish - Post | Contact Type | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Features | Shrouding | Fastening Type | Number of Rows | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Right Angle Surface Mount | UL94 V-0 | Header | 50 V | 0.069 in | 1.75 mm | Rectangular | Solder | 1 mm | 0.039 in | Nylon Polyamide (PA) | Natural | 11 | Board to Cable/Wire | Tin | Outer Shroud Contact | Phosphor Bronze | 85 °C | -25 °C | Solder Retention | Shrouded - 4 Wall | Push-Pull | 1 | All |
