0577-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Tail Type	Socket Depth	Socket Depth	Contact Material	Termination	Flange Diameter	Flange Diameter	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]	Features	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]

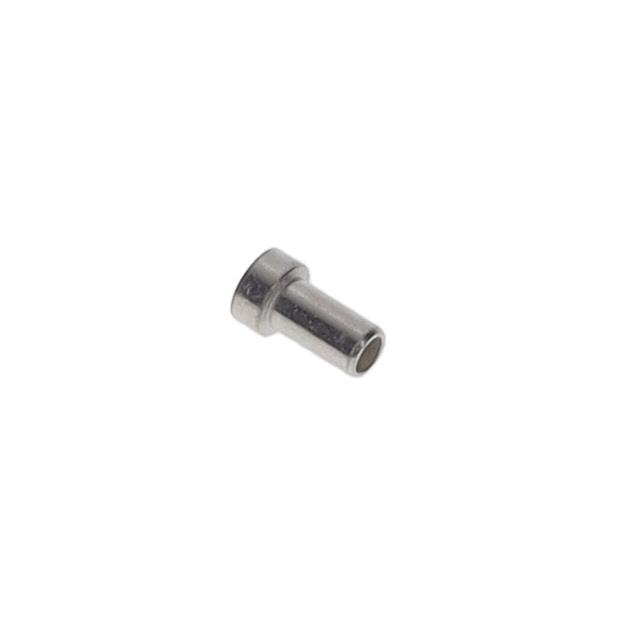

Mill-Max Manufacturing Corp. 0577-0-15-80-21-27-10-0	-55 C	125 °C	0.38 mm	0.022 in	0.015 "	0.56 mm	No Tail	2.54 mm	0.1 in	Beryllium Copper	Solder	0.058 in	1.47 mm	Gold	30 Áin	0.76 Ám	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 0577-0-15-01-21-02-10-0	-55 C	125 °C	0.38 mm	0.022 in	0.015 "	0.56 mm	No Tail	2.54 mm	0.1 in	Beryllium Copper	Solder	0.058 in	1.47 mm	Gold	30 Áin	0.76 Ám	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 0577-0-15-80-21-14-10-0	-55 C	125 °C	0.38 mm	0.022 in	0.015 "	0.56 mm	No Tail	2.54 mm	0.1 in	Beryllium Copper	Solder	0.058 in	1.47 mm	Gold	10 Áin	0.25 Ám	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 0577-0-15-80-21-84-10-0	-55 C	125 °C	0.38 mm	0.022 in	0.015 "	0.56 mm	No Tail	2.54 mm	0.1 in	Beryllium Copper	Solder	0.058 in	1.47 mm	Tin	100 µin	2.54 µm	0.1 in	2.54 mm

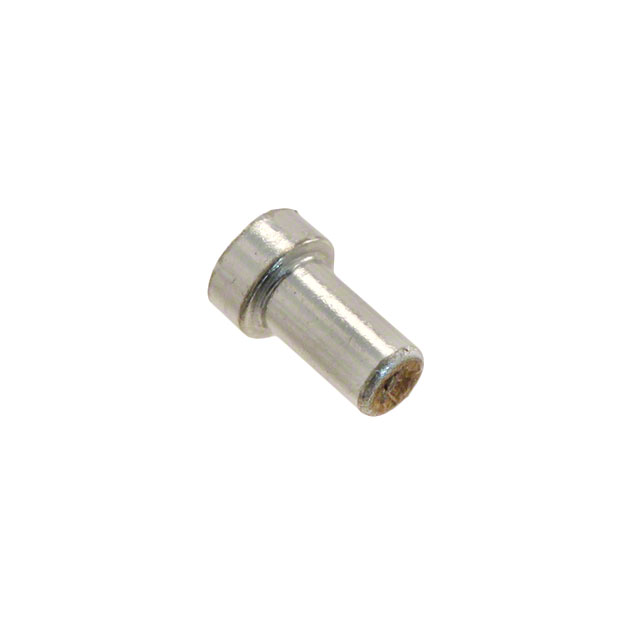

Mill-Max Manufacturing Corp. 0577-0-67-80-21-27-10-0	-55 C	125 °C	0.38 mm	0.022 in	0.015 "	0.56 mm	No Tail	2.54 mm	0.1 in	Beryllium Copper	Solder	0.058 in	1.47 mm	Gold	30 Áin	0.76 Ám	0.1 in	2.54 mm	Knockout Bottom (Organic Fiber Plug®)	0.031 in	0.79 mm
Mill-Max Manufacturing Corp. 0577-0-15-15-21-14-10-0	-55 C	125 °C	0.38 mm	0.022 in	0.015 "	0.56 mm	No Tail	2.54 mm	0.1 in	Beryllium Copper	Solder	0.058 in	1.47 mm	Gold	10 Áin	0.25 Ám	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 0577-0-15-15-21-27-10-0	-55 C	125 °C	0.38 mm	0.022 in	0.015 "	0.56 mm	No Tail	2.54 mm	0.1 in	Beryllium Copper	Solder	0.058 in	1.47 mm	Gold	30 Áin	0.76 Ám	0.1 in	2.54 mm
