BVE-M Series
Manufacturer: Isabellenhuette USA
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

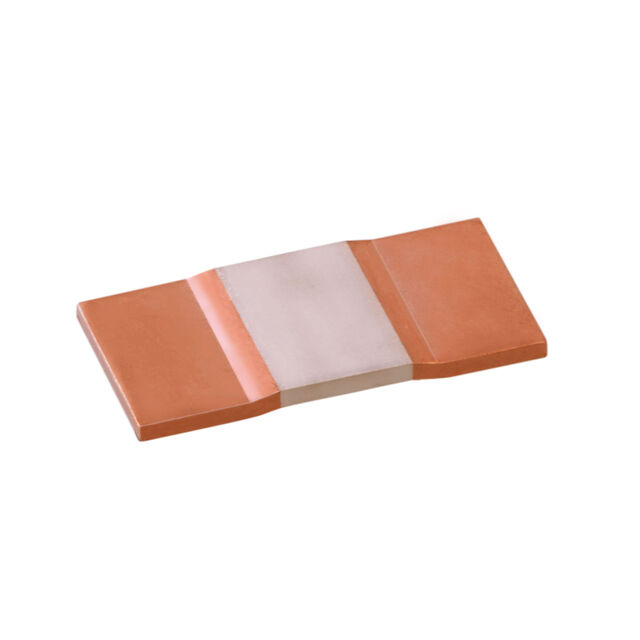

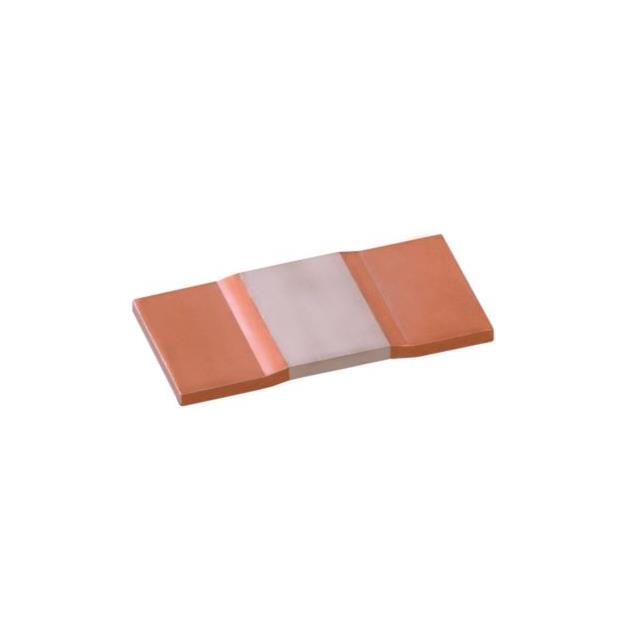

RESISTOR - ISA-WELD SHUNT, 0.000
| Part | Number of Terminations | Features | Package Name | Size / Dimension Length | Size / Dimension Width | Ratings | Tolerance | Temperature Coefficient | Operating Temperature (Min) | Operating Temperature (Max) | Power (Watts) | Resistance | Height - Seated (Max) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Isabellenhuette USA | 2 | Automotive AEC-Q200 Current Sense | 5930 | 0.591 in | 0.305 in | AEC-Q200 | 1 % | 100 ppm/°C | -55 °C | 170 °C | 10 W | 300 µOhms | 0.065 in | Nonstandard |
Isabellenhuette USA | 2 | Automotive AEC-Q200 Current Sense | 5930 | 0.591 in | 0.305 in | AEC-Q200 | 1 % | 75 ppm/¯C | -55 °C | 170 °C | 8 W | 0.5 mOhms | 0.05 in | Nonstandard |
 Isabellenhuette USA | 2 | Automotive AEC-Q200 Current Sense | 5930 | 0.591 in | 0.305 in | AEC-Q200 | 1 % | 100 ppm/°C | -55 °C | 170 °C | 15 W | 0.2 mOhms | 0.083 in | Nonstandard |
