M83-LML3M Series

Catalog

CONNECTOR, HEADER, 54POS, 3ROW, 2MM ROHS COMPLIANT: YES

Part	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Voltage Rating	Shrouding	Insulation Color	Contact Type	Insulation Material	Connector Type	Mounting Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Number of Positions Loaded	Style	Number of Positions	Contact Length - Post [x]	Contact Length - Post	Features	Termination	Contact Finish - Mating	Contact Material	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Number of Rows [custom]	Contact Shape	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post

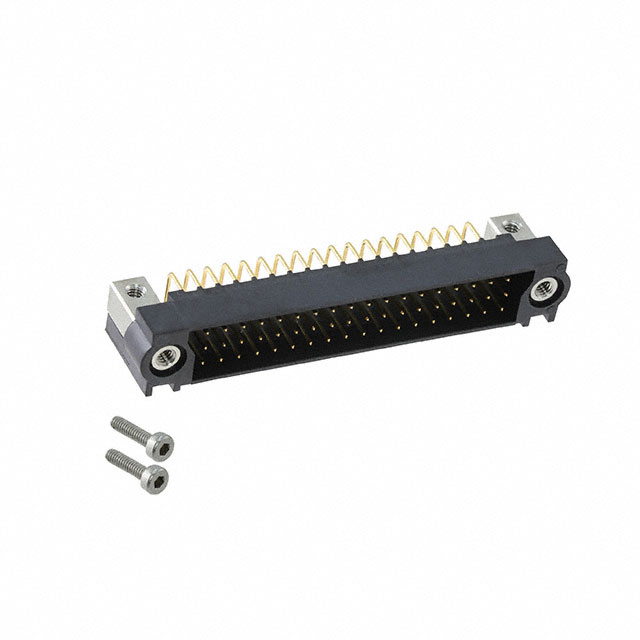

Harwin Inc. M83-LML3M7N54-0000-000	2 mm	0.079 in	2.2 A	800 V	Shrouded - 4 Wall	Black	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	Header	Right Angle Through Hole	Threaded	-55 C	125 °C	7.7 mm	0.303 in	All	Board to Board Cable	54	0.157 in	4 mm	Mating Flange Mounting Flange Mounting Hardware	Solder	Gold	Phosphor Bronze	UL94 V-0	0.079 "	2 mm	29.5 µin	0.75 µm	3	Circular

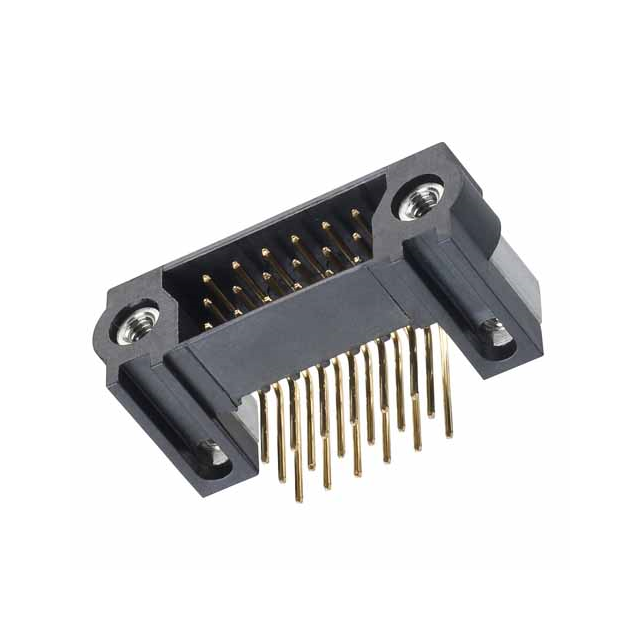

Harwin Inc. M83-LML3M1N18-0000-000	2 mm	0.079 in	2.2 A	800 V	Shrouded - 4 Wall	Black	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	Header	Right Angle Through Hole	Threaded	-55 C	125 °C	7.7 mm	0.303 in	All	Board to Board Cable	18		3.5 mm	Mating Flange Mounting Flange	Solder	Gold	Phosphor Bronze	UL94 V-0	0.079 "	2 mm	29.5 µin	0.75 µm	3	Circular	0.138 in

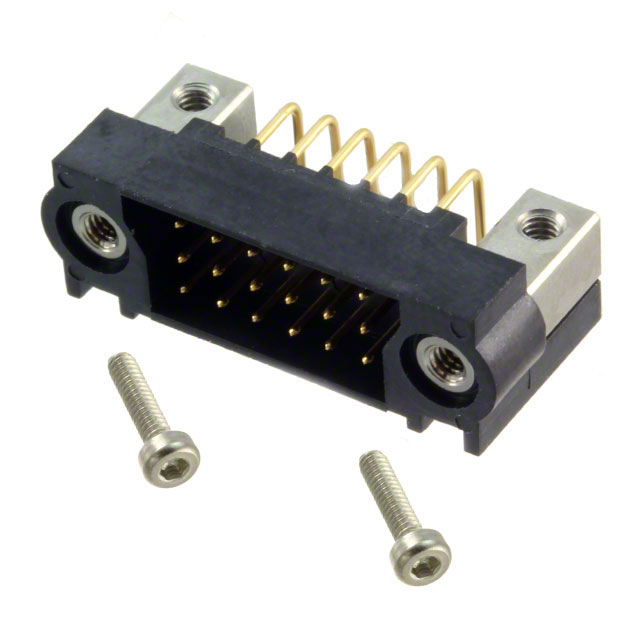

Harwin Inc. M83-LML3M7N18-0000-000	2 mm	0.079 in	2.2 A	800 V	Shrouded - 4 Wall	Black	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	Header	Right Angle Through Hole	Threaded	-55 C	125 °C	7.7 mm	0.303 in	All	Board to Board Cable	18	0.157 in	4 mm	Mating Flange Mounting Flange Mounting Hardware	Solder	Gold	Phosphor Bronze	UL94 V-0	0.079 "	2 mm	29.5 µin	0.75 µm	3	Circular

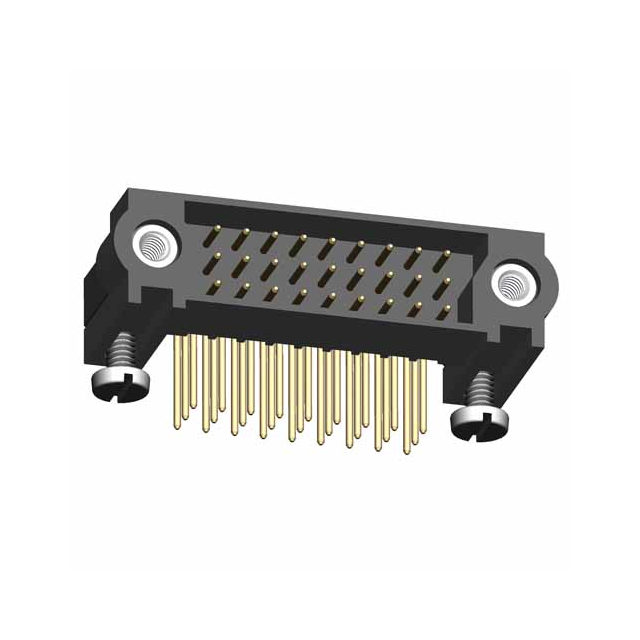

Harwin Inc. M83-LML3M5N96-0000-000	2 mm	0.079 in	2.2 A	120 VDC	Shrouded - 4 Wall	Black	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	Header	Right Angle Through Hole	Threaded	-55 C	125 °C	7.7 mm	0.303 in	All	Board to Board Cable	96	0.157 in	4 mm	Mating Flange Mounting Flange Mounting Hardware	Solder	Gold	Phosphor Bronze	UL94 V-0	0.079 "	2 mm	29.5 µin	0.75 µm	3	Circular
Harwin Inc. M83-LML3M1N54-0000-000	2 mm	0.079 in	2.2 A	800 VAC	Shrouded - 4 Wall	Black	Male Pin	Polyphenylene Sulfide (PPS)	Header	Right Angle Through Hole	Threaded	-55 C	125 °C	7.7 mm	0.303 in	All	Board to Board Cable	54		3.5 mm	Mating Flange Mounting Flange	Solder	Gold	Phosphor Bronze	UL94 V-0	0.079 "	2 mm	29.5 µin	0.75 µm	3	Circular	0.138 in	29.5 µin	0.75 µm	Gold
Harwin Inc. M83-LML3M5N36-0000-000	2 mm	0.079 in	2.2 A	120 VDC	Shrouded - 4 Wall	Black	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	Header	Right Angle Through Hole	Threaded	-55 C	125 °C	7.7 mm	0.303 in	All	Board to Board Cable	36	0.157 in	4 mm	Mating Flange Mounting Flange Mounting Hardware	Solder	Gold	Phosphor Bronze	UL94 V-0	0.079 "	2 mm	29.5 µin	0.75 µm	3	Circular
Harwin Inc. M83-LML3M5N27-0000-000	2 mm	0.079 in	2.2 A	120 VDC	Shrouded - 4 Wall	Black	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	Header	Right Angle Through Hole	Threaded	-55 C	125 °C	7.7 mm	0.303 in	All	Board to Board Cable	27	0.157 in	4 mm	Mating Flange Mounting Flange Mounting Hardware	Solder	Gold	Phosphor Bronze	UL94 V-0	0.079 "	2 mm	29.5 µin	0.75 µm	3	Circular
Harwin Inc. M83-LML3M5N60-0000-000	2 mm	0.079 in	2.2 A	120 VDC	Shrouded - 4 Wall	Black	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	Header	Right Angle Through Hole	Threaded	-55 C	125 °C	7.7 mm	0.303 in	All	Board to Board Cable	60	0.157 in	4 mm	Mating Flange Mounting Flange Mounting Hardware	Solder	Gold	Phosphor Bronze	UL94 V-0	0.079 "	2 mm	29.5 µin	0.75 µm	3	Circular

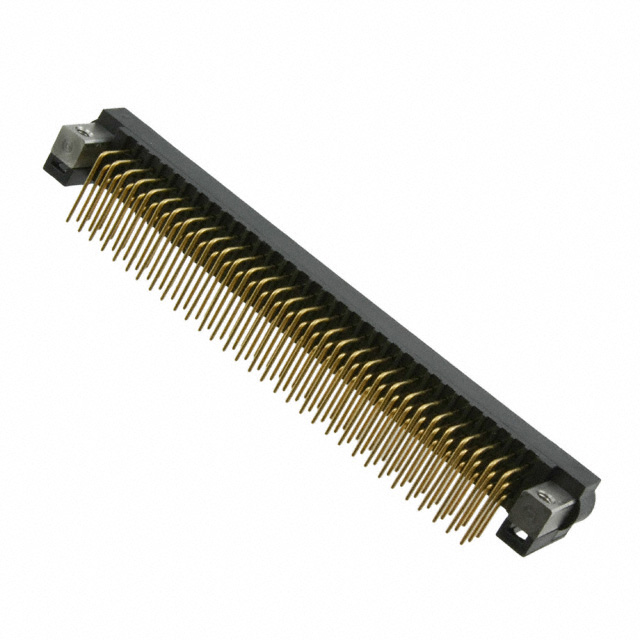

Harwin Inc. M83-LML3M1N96-0000-000	2 mm	0.079 in	2.2 A	800 V	Shrouded - 4 Wall	Black	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	Header	Right Angle Through Hole	Threaded	-55 C	125 °C	7.7 mm	0.303 in	All	Board to Board Cable	96		3.5 mm	Mating Flange Mounting Flange	Solder	Gold	Phosphor Bronze	UL94 V-0	0.079 "	2 mm	29.5 µin	0.75 µm	3	Circular	0.138 in
Harwin Inc. M83-LML3M5N54-0000-000	2 mm	0.079 in	2.2 A	120 VDC	Shrouded - 4 Wall	Black	Male Pin	Polyphenylene Sulfide (PPS) Glass Filled	Header	Right Angle Through Hole	Threaded	-55 C	125 °C	7.7 mm	0.303 in	All	Board to Board Cable	54	0.157 in	4 mm	Mating Flange Mounting Flange Mounting Hardware	Solder	Gold	Phosphor Bronze	UL94 V-0	0.079 "	2 mm	29.5 µin	0.75 µm	3	Circular
