HCMP06 Series

Catalog

CABLE MOUNTING & ACCESSORIES HARNESS CLIP MOUNT

Part	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Width [y]	Width [y]	Color	Panel Hole Size [Min]	Panel Hole Size [Min]	Panel Hole Size [Max]	Panel Hole Size [Max]	Material	Mounting Type	Type Attributes	Height	Height	Opening Size [Min]	Opening Size [Max]	Opening Size [Min]	Opening Size [Max]	Type	Length	Length [x]	Length	Height [z]	Height [z]	Width [x]	Width [x]	Features

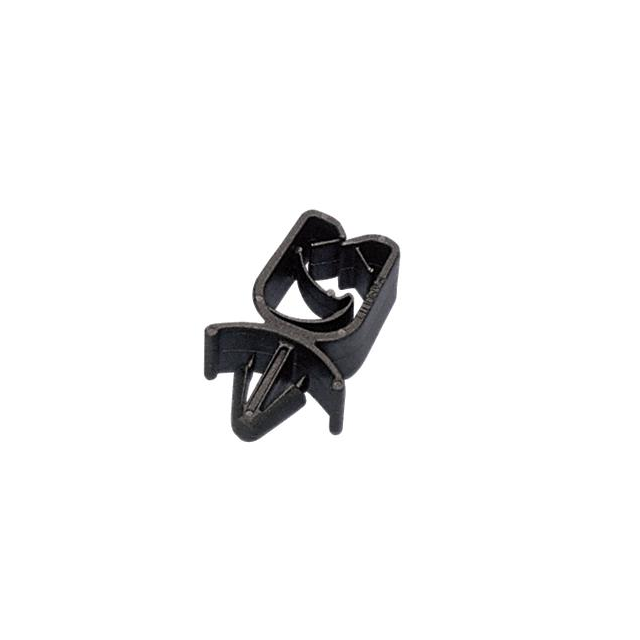

Panduit Corp HCMP06B12-M20	0.118 in	3 mm	0.6 mm	0.024 in	9.5 mm	0.374 in	Black	0.248 in	6.3 mm	0.283 in	7.2 mm	Polyamide (PA66) Nylon 6/6	Arrowhead Winged	Webbed	19.5 mm	0.768 in	0.236 in	12 mm	6 mm	0.472 in	Clip Wire Saddle	19 mm	0.748 in
Panduit Corp HCMP06C12-M20	0.118 in	3 mm	0.6 mm	0.024 in			Black	0.248 in	6.3 mm	0.283 in	7.2 mm	Polyamide (PA66) Nylon 6/6	Arrowhead Winged	Side Entry Webbed			0.236 in	12 mm	6 mm	0.472 in	Clip Wire Saddle	20.19 mm		0.795 in	0.618 in	15.7 mm	10 mm	0.394 "
Panduit Corp HCMP06B12-M130	0.118 in	3 mm	0.6 mm	0.024 in	9.5 mm	0.374 in	Black	0.248 in	6.3 mm	0.283 in	7.2 mm	Polyacetal (POM)	Arrowhead Winged	Webbed	19.5 mm	0.768 in	0.236 in	12 mm	6 mm	0.472 in	Clip Wire Saddle	19 mm	0.748 in						Heat Stabilized
Panduit Corp HCMP06E16-M30							Black														Clip Wire Saddle								Heat Stabilized
