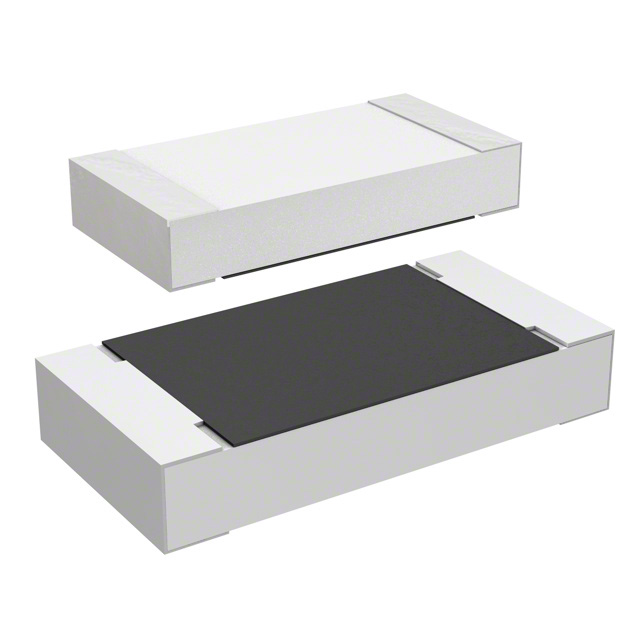

RCG1206 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

RES 220 OHM 5% 1/4W 1206

Part	Temperature Coefficient	Package / Case	Tolerance	Supplier Device Package	Number of Terminations	Resistance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Composition	Power (Watts)	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]
Vishay General Semiconductor - Diodes Division RCG1206220RJNEA	200 ppm/°C	1206 (3216 Metric)	5 %	1206	2	220 Ohms	0.063 in	1.6 mm	0.126 "	3.2 mm	0.6 mm	0.024 in	Thick Film	0.25 W	250 mW	155 °C	-55 °C
Vishay General Semiconductor - Diodes Division RCG120610R0JNEA	200 ppm/°C	1206 (3216 Metric)	5 %	1206	2	10 Ohms	0.063 in	1.6 mm	0.126 "	3.2 mm	0.6 mm	0.024 in	Thick Film	0.25 W	250 mW	155 °C	-55 °C
Vishay General Semiconductor - Diodes Division RCG120610R0FKEA	100 ppm/°C	1206 (3216 Metric)	1 %	1206	2	10 Ohms	0.063 in	1.6 mm	0.126 "	3.2 mm	0.6 mm	0.024 in	Thick Film	0.25 W	250 mW	155 °C	-55 °C
Vishay General Semiconductor - Diodes Division RCG12061R00JNEA	200 ppm/°C	1206 (3216 Metric)	5 %	1206	2	1 Ohms	0.063 in	1.6 mm	0.126 "	3.2 mm	0.6 mm	0.024 in	Thick Film	0.25 W	250 mW	155 °C	-55 °C
Vishay General Semiconductor - Diodes Division RCG1206464RFKEA	100 ppm/°C	1206 (3216 Metric)	1 %	1206	2	464 Ohms	0.063 in	1.6 mm	0.126 "	3.2 mm	0.6 mm	0.024 in	Thick Film	0.25 W	250 mW	155 °C	-55 °C
Vishay General Semiconductor - Diodes Division RCG120651R1FKEA	100 ppm/°C	1206 (3216 Metric)	1 %	1206	2	51.1 Ohms	0.063 in	1.6 mm	0.126 "	3.2 mm	0.6 mm	0.024 in	Thick Film	0.25 W	250 mW	155 °C	-55 °C
Vishay General Semiconductor - Diodes Division RCG12062K00FKEA	100 ppm/°C	1206 (3216 Metric)	1 %	1206	2	2 kOhms	0.063 in	1.6 mm	0.126 "	3.2 mm	0.6 mm	0.024 in	Thick Film	0.25 W	250 mW	155 °C	-55 °C
Vishay General Semiconductor - Diodes Division RCG1206909RFKEA	100 ppm/°C	1206 (3216 Metric)	1 %	1206	2	909 Ohms	0.063 in	1.6 mm	0.126 "	3.2 mm	0.6 mm	0.024 in	Thick Film	0.25 W	250 mW	155 °C	-55 °C
Vishay General Semiconductor - Diodes Division RCG12063K24FKEA	100 ppm/°C	1206 (3216 Metric)	1 %	1206	2	3.24 kOhms	0.063 in	1.6 mm	0.126 "	3.2 mm	0.6 mm	0.024 in	Thick Film	0.25 W	250 mW	155 °C	-55 °C
Vishay General Semiconductor - Diodes Division RCG12061K91FKEA	100 ppm/°C	1206 (3216 Metric)	1 %	1206	2	1.91 kOhms	0.063 in	1.6 mm	0.126 "	3.2 mm	0.6 mm	0.024 in	Thick Film	0.25 W	250 mW	155 °C	-55 °C
