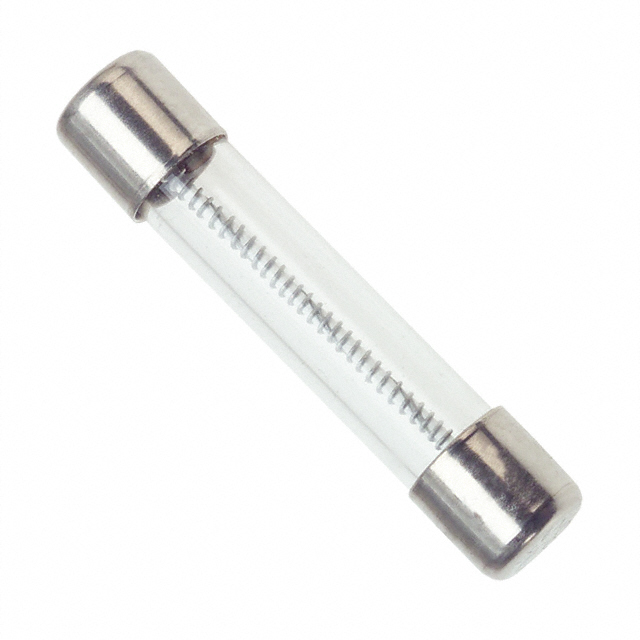

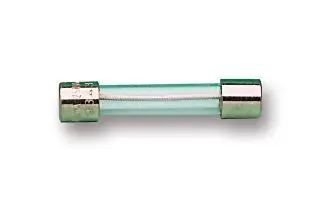

FUSE 250V SB 3AG Pb-FREE 2A
Description
AI
The 3AG Slo-Blo® fuse solves a broad range of application requirements while offering reliable performance and costeffective circuit protection.
Beta
⌘K
FUSE 250V SB 3AG Pb-FREE 2A
FUSE 250V SB 3AG Pb-FREE 2A
| Part | DC Cold Resistance | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Response Time | Melting I²t | Package / Case [y] | Package / Case [x] | Package / Case | Mounting Type | Fuse Type | Voltage Rating - AC | Breaking Capacity @ Rated Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.1169 Ohms | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | Slow Blow | 77 | 0.25 in | 3AB 3AG | Requires Holder | Cartridge Glass | 250 V | 100 A | -55 C | 125 °C | CE CSA PSE UL | 2 A | |
LITTELFUSE | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | Slow Blow | 77 | 0.25 in | 3AB 3AG | Requires Holder | Cartridge Glass | 250 V | 100 A | -55 C | 125 °C | CE CSA PSE UL | 2 A | ||
LITTELFUSE | 0.1169 Ohms | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | Slow Blow | 77 | 0.25 in | 3AB 3AG | Requires Holder | Cartridge Glass | 250 V | 100 A | -55 C | 125 °C | CE CSA PSE UL | 2 A | |
 LITTELFUSE | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | Slow Blow | 77 | 0.25 in | 3AB 3AG | Requires Holder | Cartridge Glass | 250 V | 100 A | -55 C | 125 °C | CE CSA PSE UL | 2 A |
