S8B-XH-A Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

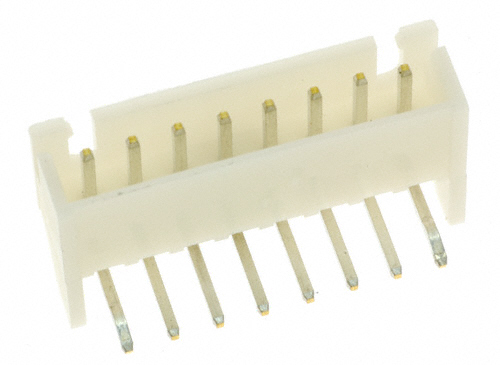

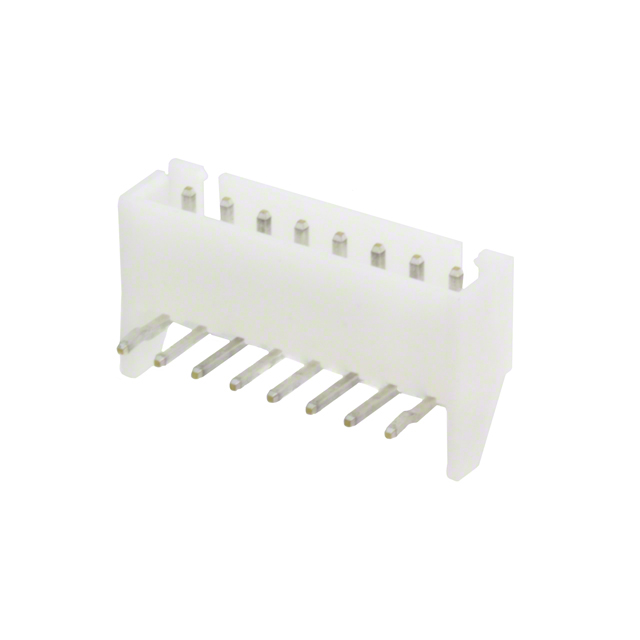

CONN HEADER R/A 8POS 2.5MM
| Part | Current Rating (Amps) | Contact Type | Contact Length - Post [x] | Contact Length - Post | Connector Type | Contact Finish - Post | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Pitch - Mating | Pitch - Mating | Insulation Height [z] | Insulation Height [z] | Contact Material | Fastening Type | Number of Positions | Insulation Material | Number of Positions Loaded | Contact Shape | Shrouding | Mounting Type | Termination | Material Flammability Rating | Number of Rows | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 3 A | Male Pin | 0.134 " | 3.4 mm | Header | Tin | Natural | 85 °C | -25 °C | 250 V | 2.5 mm | 0.098 in | 6.1 mm | 0.24 in | Brass | Detent Lock | 8 | Nylon 6/6 Polyamide (PA66) | All | Square | Shrouded - 4 Wall | Right Angle Through Hole | Press-Fit Solder | UL94 V-0 | 1 | Board to Cable/Wire |
 JST Sales America Inc. | 3 A | Male Pin | 0.134 " | 3.4 mm | Header | Tin | Natural | 85 °C | -25 °C | 250 V | 2.5 mm | 0.098 in | 6.1 mm | 0.24 in | Brass | Detent Lock | 8 | Nylon 6/6 Polyamide (PA66) | All | Square | Shrouded - 4 Wall | Right Angle Through Hole | Press-Fit Solder | UL94 V-0 | 1 | Board to Cable/Wire |
