325-096 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 96POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Pitch	Pitch	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Termination	Card Thickness	Card Thickness	Color	Mounting Type	Read Out	Contact Type	Gender	Number of Positions	Number of Positions/Bay/Row	Contact Finish	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Card Type
EDAC Inc. 325-096-520-209	Diallyl Phthalate (DAP)	2	0.1 "	2.54 mm	2	0.25 Ám	10 Áin	Solder	3.18 mm	0.125 in	Green	Through Hole	Dual	Cantilever	Female	96	48	Gold	Copper Alloy	-65 ░C	125 °C	Flush Mount Top Opening Unthreaded	0.16 "	4.06 mm	Non Specified - Dual Edge
EDAC Inc. 325-096-500-209	Diallyl Phthalate (DAP)	2	0.1 "	2.54 mm	2	0.25 Ám	10 Áin	Solder Eyelet(s)	3.18 mm	0.125 in	Green	Through Hole	Dual	Cantilever	Female	96	48	Gold	Copper Alloy	-65 ░C	125 °C	Flush Mount Top Opening Unthreaded	0.16 "	4.06 mm	Non Specified - Dual Edge

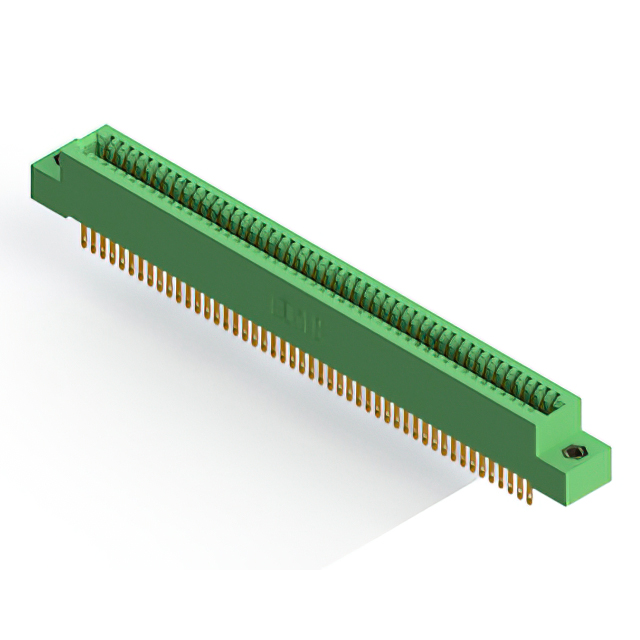

EDAC Inc. 325-096-500-207	Diallyl Phthalate (DAP)	2	0.1 "	2.54 mm	2	0.25 Ám	10 Áin	Solder Eyelet(s)	3.18 mm	0.125 in	Green	Through Hole	Dual	Cantilever	Female	96	48	Gold	Copper Alloy	-65 ░C	125 °C	Flush Mount M3 Threaded Insert Top Opening			Non Specified - Dual Edge
EDAC Inc. 325-096-540-207	Diallyl Phthalate (DAP)	2	0.1 "	2.54 mm	2	0.25 Ám	10 Áin	Wire Wrap	3.18 mm	0.125 in	Green	Through Hole	Dual	Cantilever	Female	96	48	Gold	Copper Alloy	-65 ░C	125 °C	Flush Mount M3 Threaded Insert Top Opening			Non Specified - Dual Edge
