KWH3L531 Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K

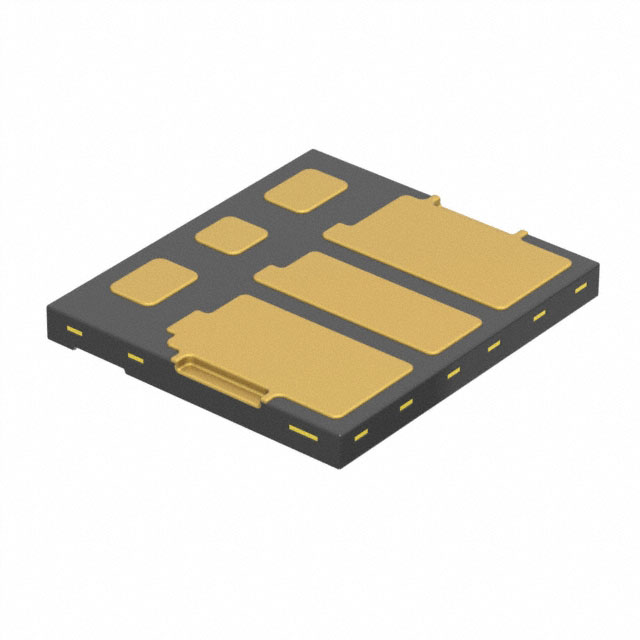

LED OSLON WHITE SMD
| Part | Thermal Resistance of Package | Package / Case | Viewing Angle | Voltage - Forward (Vf) (Typ) | Supplier Device Package | Current - Max [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] [z] | Mounting Type | Flux @ 25°C, Current - Test [Max] | Flux @ 25°C, Current - Test | Flux @ 25°C, Current - Test [Min] | Lumens/Watt @ Current - Test | Current - Test | Color | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | 1.3 °C/W | 6-SMD No Lead | 120 ° | 9.2 V | SMD | 1.2 A | 0.49 mm | 0.019 " | Surface Mount | 1320 lm | 1080 lm | 840 lm | 117 lm/W | 1 A | White | 3.75 mm | 4.2 mm | 0.148 in | 0.165 in |
ams-OSRAM USA INC. | 1.3 °C/W | 6-SMD No Lead | 120 ° | 9.2 V | SMD | 1.2 A | 0.49 mm | 0.019 " | Surface Mount | 1 A | White | 3.75 mm | 4.2 mm | 0.148 in | 0.165 in |
