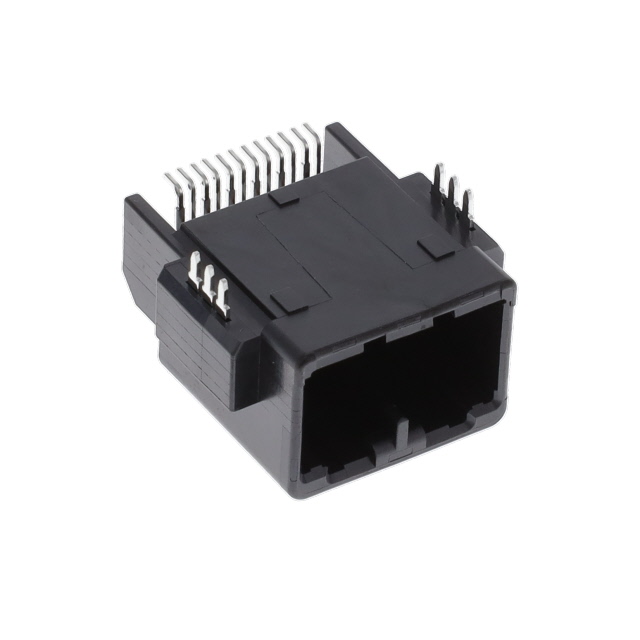

MX34R12H Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN HEADER SMD R/A 12POS 2.2MM
| Part | Applications | Insulation Color | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Fastening Type | Contact Material | Current Rating (Amps) | Insulation Height | Insulation Height | Features | Insulation Material | Shrouding | Connector Type | Contact Shape | Row Spacing - Mating | Row Spacing - Mating | Contact Length - Mating | Contact Length - Mating | Number of Positions Loaded | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Style | Mounting Type | Number of Rows [custom] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Automotive | Black | Male Pin | 85 °C | -40 C | Solder | Locking Ramp | Copper Alloy | 3 A | 13.8 mm | 0.543 in | Solder Retention | Polyphenylene Sulfide (PPS) Glass Filled | Shrouded - 4 Wall | Header | Square | 0.118 in | 3 mm | 0.303 in | 7.7 mm | All | Tin | 0.087 in | 2.2 mm | Board to Cable/Wire | Right Angle Surface Mount | 2 | 12 |
