302-S64 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

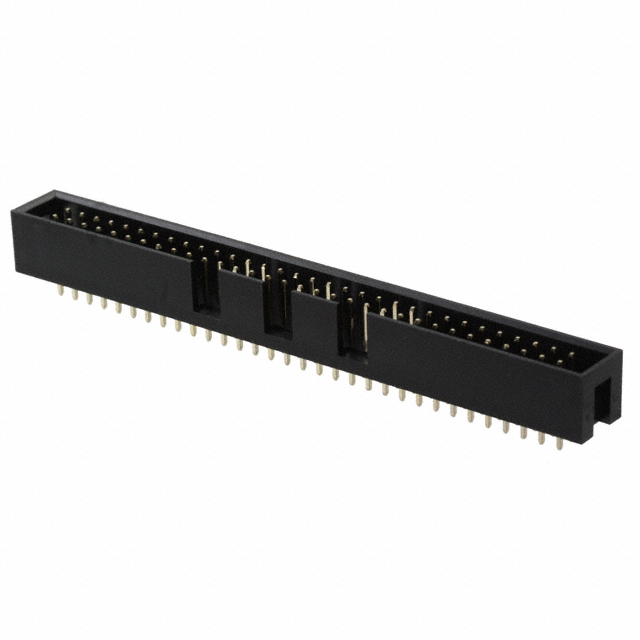

CONN HEADER VERT 64POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Termination | Insulation Color | Number of Rows [custom] | Connector Type | Style | Insulation Height | Insulation Height | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish - Mating | Material Flammability Rating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Features | Shrouding | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Contact Shape | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Current Rating (Amps) | Insulation Material | Fastening Type | Number of Positions | Contact Type | Voltage Rating | Number of Positions Loaded | Contact Finish Thickness - Mating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 1.25 µin | 0.032 µm | Solder | Black | 2 | Header | Board to Cable/Wire | 0.358 " | 9.1 mm | 0.122 in | 3.1 mm | Gold | UL94 V-0 | Brass | -40 C | 105 ░C | Keying Slot | Shrouded - 4 Wall | 0.1 " | 2.54 mm | Gold | Square | 0.1 in | 2.54 mm | 3 A | Polyester Glass Filled | Push-Pull | 64 | Male Pin | 250 V | All | Flash | Through Hole |
