VSRP1206SD Series

Catalog

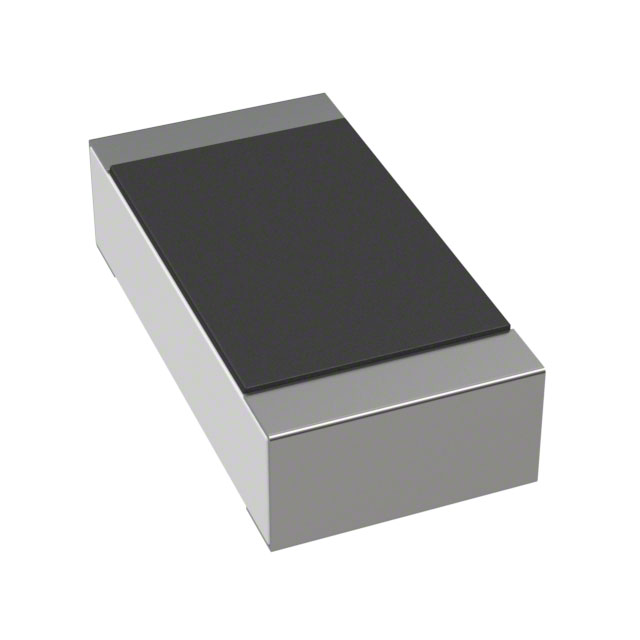

RES 0.05 OHM 1% 1/2W 1206

Part	Ratings	Composition	Power (Watts)	Power (Watts)	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Number of Terminations [custom]	Package / Case	Supplier Device Package	Temperature Coefficient	Resistance
Delta Electronics/Cyntec VSRP1206SD-R050F	AEC-Q200	Thick Film	0.5 W	0.5 W	1 %	0.063 "	0.126 "	3.2 mm	1.6 mm	0.033 in	0.85 mm	Automotive AEC-Q200 Current Sense	155 C	-55 C	2	1206 (3216 Metric)	1206	100 ppm/°C	0.05 Ohms
Delta Electronics/Cyntec VSRP1206SD-R030J	AEC-Q200	Thick Film	0.5 W	0.5 W	5 %	0.063 "	0.126 "	3.2 mm	1.6 mm	0.033 in	0.85 mm	Automotive AEC-Q200 Current Sense	155 C	-55 C	2	1206 (3216 Metric)	1206	100 ppm/°C	0.03 Ohms
Delta Electronics/Cyntec VSRP1206SD-R050J	AEC-Q200	Thick Film	0.5 W	0.5 W	5 %	0.063 "	0.126 "	3.2 mm	1.6 mm	0.033 in	0.85 mm	Automotive AEC-Q200 Current Sense	155 C	-55 C	2	1206 (3216 Metric)	1206	100 ppm/°C	0.05 Ohms
Delta Electronics/Cyntec VSRP1206SD-R010J	AEC-Q200	Thick Film	0.5 W	0.5 W	5 %	0.063 "	0.126 "	3.2 mm	1.6 mm	0.033 in	0.85 mm	Automotive AEC-Q200 Current Sense	155 C	-55 C	2	1206 (3216 Metric)	1206	200 ppm/°C	10 mOhms
Delta Electronics/Cyntec VSRP1206SD-R030F	AEC-Q200	Thick Film	0.5 W	0.5 W	1 %	0.063 "	0.126 "	3.2 mm	1.6 mm	0.033 in	0.85 mm	Automotive AEC-Q200 Current Sense	155 C	-55 C	2	1206 (3216 Metric)	1206	100 ppm/°C	0.03 Ohms
Delta Electronics/Cyntec VSRP1206SD-R020F	AEC-Q200	Thick Film	0.5 W	0.5 W	1 %	0.063 "	0.126 "	3.2 mm	1.6 mm	0.033 in	0.85 mm	Automotive AEC-Q200 Current Sense	155 C	-55 C	2	1206 (3216 Metric)	1206	100 ppm/°C	0.02 Ohms
