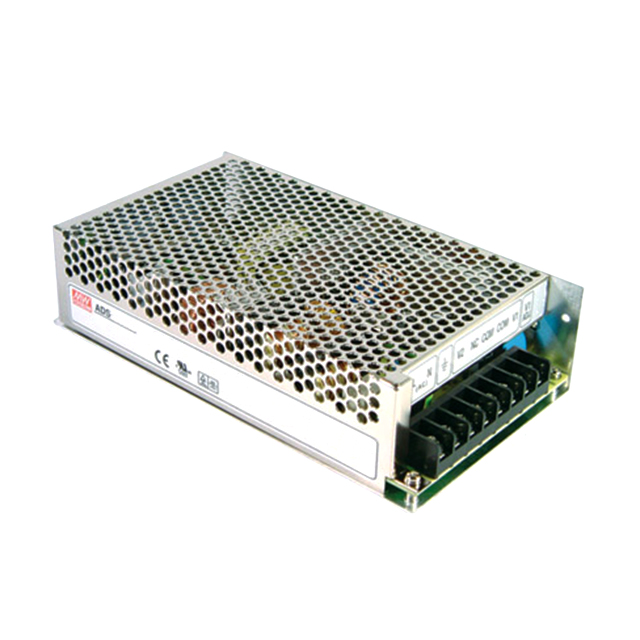

AD-155 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 13.8V 13.3V 152W
| Part | Minimum Load Required | Applications | Current - Output 1 | Mounting Type | Efficiency | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Features | Type | Voltage - Isolation | Current - Output 2 | Voltage - Output 1 [custom] | Voltage - Output 2 | Voltage - Input [Max] | Voltage - Input [Min] | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Number of Outputs | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | ITE (Commercial) | 10.5 A | Chassis Mount | 80 % | 50 mm | 199 mm | 110 mm | 1.97 " | 7.83 in | 4.33 " | Adjustable Output Universal Input | Enclosed | 3000 V | 500 mA | 13.8 V | 13.3 V | 264 VAC 370 VDC | 88 VAC 124 VDC | 152 W | -10 °C | 60 °C | CB CE cURus TUV | 2 | ||
MEAN WELL USA Inc. | ITE (Commercial) | 2.7 A | Chassis Mount | 84 % | 50 mm | 199 mm | 110 mm | 1.97 " | 7.83 in | 4.33 " | Adjustable Output Universal Input | Enclosed | 3000 V | 200 mA | 53.5 V | 264 VAC 370 VDC | 88 VAC 124 VDC | 157 W | -10 °C | 60 °C | CB CE cURus TUV | 2 | 54 V |
