GBC08D Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD 16POS 2.54MM

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Insulation Color	Fastening Type	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Finish - Post	Number of Positions Loaded	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Contact Finish - Mating	Insulation Height	Insulation Height	Connector Type	Mounting Type	Number of Positions	Number of Rows	Contact Material	Contact Length - Mating [x]	Contact Length - Mating [x]	Style	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]
Sullins Connector Solutions GBC08DFBN-M30	2.54 mm	0.1 in	Solder	UL94 V-0	0.1 in	2.54 mm	Black	Push-Pull	Nylon 9T Polyamide (PA9T)	10 çin	0.25 çm	3 A	Tin	All	Square	2.54 µm	100 µin	Unshrouded	Gold	0.1 in	2.54 mm	Breakaway Header	Surface Mount	16	2	Phosphor Bronze	0.318 "	8.08 mm	Board to Board Cable	Male Pin	-65 ░C	150 °C

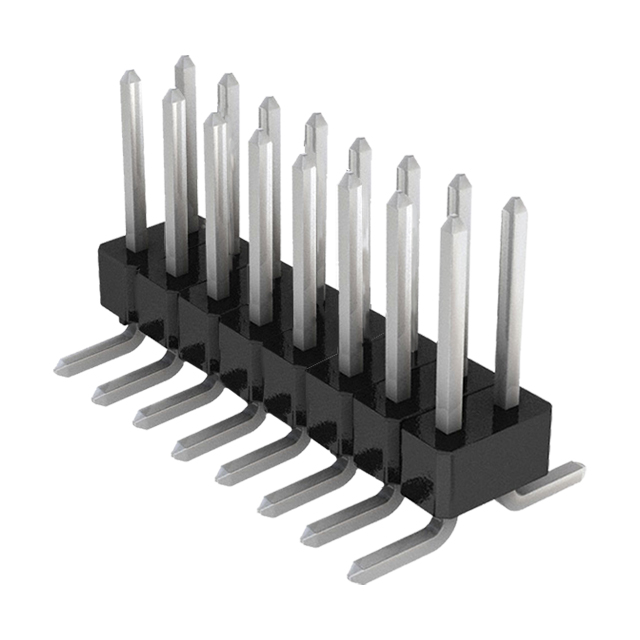

Sullins Connector Solutions GBC08DABN-M30	2.54 mm	0.1 in	Solder	UL94 V-0	0.1 in	2.54 mm	Black	Push-Pull	Nylon 9T Polyamide (PA9T)	10 çin	0.25 çm	3 A	Tin	All	Square	2.54 µm	100 µin	Unshrouded	Gold	0.1 in	2.54 mm	Breakaway Header	Surface Mount	16	2	Phosphor Bronze	0.23 in		Board to Board Cable	Male Pin	-65 ░C	150 °C	5.84 mm

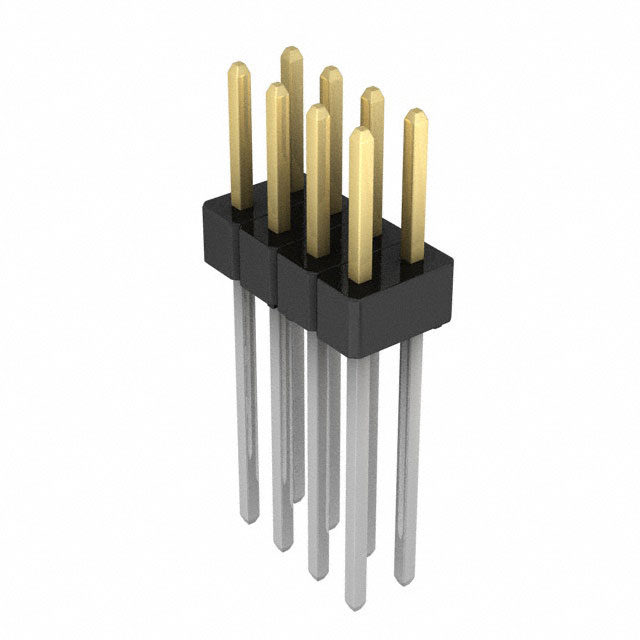

Sullins Connector Solutions GBC08DAEN	2.54 mm	0.1 in	Solder	UL94 V-0	0.1 in	2.54 mm	Black	Push-Pull	Nylon 9T Polyamide (PA9T)	10 çin	0.25 çm	3 A	Tin	All	Square	2.54 µm	100 µin	Unshrouded	Gold	0.1 in	2.54 mm	Breakaway Header	Through Hole	16	2	Phosphor Bronze	0.23 in		Board to Board Cable	Male Pin	-65 ░C	150 °C	5.84 mm	13.21 mm	0.52 "	0.85 in	21.59 mm
Sullins Connector Solutions GBC08DFAN	2.54 mm	0.1 in	Solder	UL94 V-0	0.1 in	2.54 mm	Black	Push-Pull	Nylon 9T Polyamide (PA9T)	10 çin	0.25 çm	3 A	Tin	All	Square	2.54 µm	100 µin	Unshrouded	Gold	0.1 in	2.54 mm	Breakaway Header	Through Hole	16	2	Phosphor Bronze	0.318 "	8.08 mm	Board to Board Cable	Male Pin	-65 ░C	150 °C				0.538 "	13.67 mm	0.12 in	3.05 mm
Sullins Connector Solutions GBC08DAAN	2.54 mm	0.1 in	Solder	UL94 V-0	0.1 in	2.54 mm	Black	Push-Pull	Nylon 9T Polyamide (PA9T)	10 çin	0.25 çm	3 A	Tin	All	Square	2.54 µm	100 µin	Unshrouded	Gold	0.1 in	2.54 mm	Breakaway Header	Through Hole	16	2	Phosphor Bronze	0.23 in		Board to Board Cable	Male Pin	-65 ░C	150 °C	5.84 mm			0.45 "	11.43 mm	0.12 in	3.05 mm
