345-010 Series
Manufacturer: EDAC Inc.
Catalog

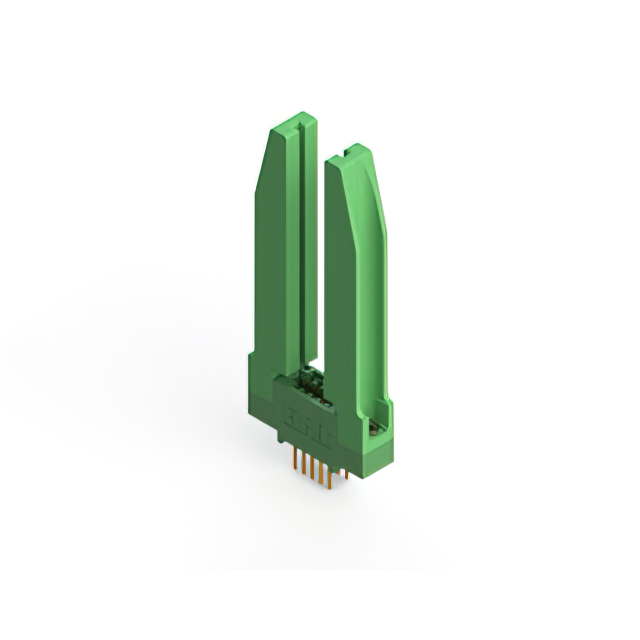

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 10 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
...
| Part | Contact Material | Number of Positions | Features | Mounting Type | Material - Insulation | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Termination | Termination Rows | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Gender | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Type | Contact Finish | Pitch [x] | Pitch [x] | Number of Rows | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | 10 | Card Extender | Board Edge Straddle Mount | Polyester Thermoplastic | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 5 | Solder | 2 | -40 °C | 105 ░C | Green | Cantilever | 10 Áin | 0.25 Ám | Female | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Non Specified - Dual Edge | Gold | 2.54 mm | 0.1 in | 2 | ||
 EDAC Inc. | Copper Alloy | 10 | Card Guides | Through Hole | Polyester Thermoplastic | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 | Solder | 1 | -40 °C | 105 ░C | Green | Cantilever | 10 Áin | 0.25 Ám | Female | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Gold | 2.54 mm | 0.1 in | 1 | ||||
 EDAC Inc. | Copper Alloy | 10 | Through Hole | Polyester Thermoplastic | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 | Wire Wrap | 1 | -40 °C | 105 ░C | Green | Cantilever | 10 Áin | 0.25 Ám | Female | Non Specified - Single Edge | Gold | 2.54 mm | 0.1 in | 1 | 3.25 mm | 0.128 in | ||||
 EDAC Inc. | Copper Alloy | 10 | Through Hole | Polyester Thermoplastic | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 | Wire Wrap | 1 | -40 °C | 105 ░C | Green | Cantilever | 10 Áin | 0.25 Ám | Female | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | Gold | 2.54 mm | 0.1 in | 1 | |||||
 EDAC Inc. | Copper Alloy | 10 | Through Hole | Polyester Thermoplastic | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 | Solder | 1 | -40 °C | 105 ░C | Green | Cantilever | 10 Áin | 0.25 Ám | Female | Non Specified - Single Edge | Gold | 2.54 mm | 0.1 in | 1 | ||||||
 EDAC Inc. | Copper Alloy | 10 | Card Guides | Through Hole | Polyester Thermoplastic | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 5 | Wire Wrap | 2 | -40 °C | 105 ░C | Green | Cantilever | 10 Áin | 0.25 Ám | Female | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | Gold | 2.54 mm | 0.1 in | 2 | ||||
 EDAC Inc. | Copper Alloy | 10 | Card Extender | Board Edge Straddle Mount | Polyester Thermoplastic | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 5 | Solder | 2 | -40 °C | 105 ░C | Green | Cantilever | 10 Áin | 0.25 Ám | Female | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Non Specified - Dual Edge | Gold | 2.54 mm | 0.1 in | 2 | ||
 EDAC Inc. | Copper Alloy | 10 | Card Guides | Through Hole | Polyester Thermoplastic | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 5 | Wire Wrap | 2 | -40 °C | 105 ░C | Green | Cantilever | 10 Áin | 0.25 Ám | Female | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | Gold | 2.54 mm | 0.1 in | 2 | ||||
 EDAC Inc. | Copper Alloy | 10 | Card Guides | Through Hole | Polyester Thermoplastic | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 5 | Wire Wrap | 2 | -40 °C | 105 ░C | Green | Cantilever | 10 Áin | 0.25 Ám | Female | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | Gold | 2.54 mm | 0.1 in | 2 | ||||
 EDAC Inc. | Copper Alloy | 10 | Card Guides | Through Hole Right Angle | Polyester Thermoplastic | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 | Wire Wrap | 1 | -40 °C | 105 ░C | Green | Cantilever | 10 Áin | 0.25 Ám | Female | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | Gold | 2.54 mm | 0.1 in | 1 |
