747912 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

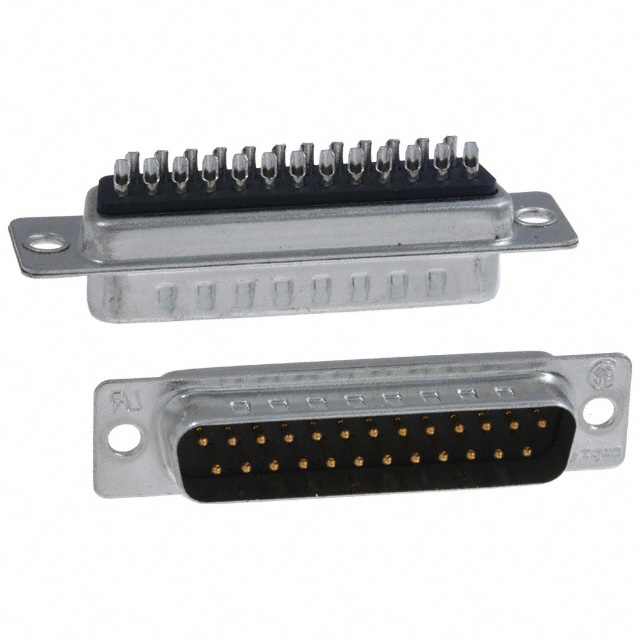

CONN D-SUB PLUG 25POS SLDR CUP

Part	Dielectric Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Material	Features	Contact Finish	Mounting Type	Number of Positions	Shell Size, Connector Layout	Shell Size, Connector Layout [x]	Material Flammability Rating	Contact Type	Flange Feature	Connector Type	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Number of Rows [custom]	Shell Material, Finish [custom]	Shell Material, Finish [custom]
TE Connectivity AMP Connectors 747912-8	Polybutylene Terephthalate (PBT) Glass Filled	250 V	-55 C	105 ░C	Black	Brass	Grounding Indents	Gold	Free Hanging (In-Line)	25	B DB	3	UL94 V-0	Signal	Housing/Shell (Unthreaded)	Plug Male Pins	3 A	0.203 çm	8 µin	D-Sub	2
TE Connectivity AMP Connectors 747912-4	Polybutylene Terephthalate (PBT) Glass Filled	250 V	-55 C	105 ░C	Black	Brass		Gold	Free Hanging (In-Line)	25	B DB	3	UL94 V-0	Signal	Housing/Shell (Unthreaded)	Plug Male Pins	3 A	0.203 çm	8 µin	D-Sub	2	Blue Zinc Plated	Steel
TE Connectivity AMP Connectors 747912-2	Polybutylene Terephthalate (PBT) Glass Filled	250 V	-55 C	105 ░C	Black	Brass	Grounding Indents	Gold	Free Hanging (In-Line)	25	B DB	3	UL94 V-0	Signal	Housing/Shell (Unthreaded)	Plug Male Pins	3 A	0.203 çm	8 µin	D-Sub	2

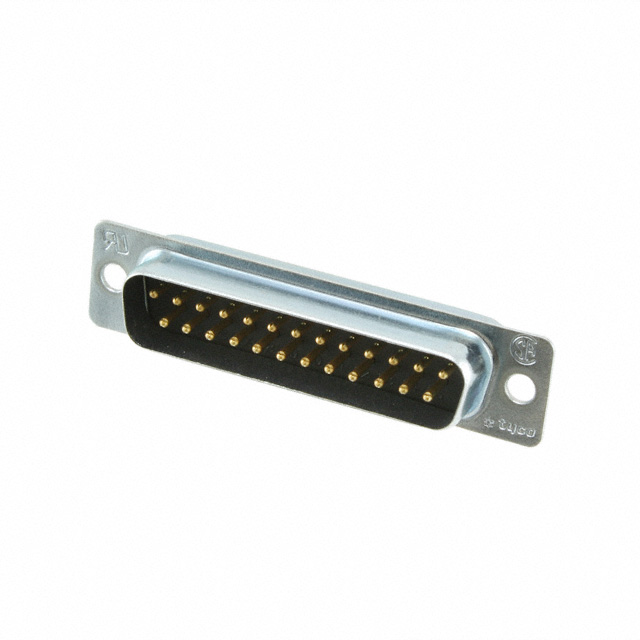

TE Connectivity AMP Connectors 5-747912-4	Polybutylene Terephthalate (PBT) Glass Filled	250 V	-55 C	105 ░C	Black	Brass	Grounding Indents	Gold	Free Hanging (In-Line)	25	B DB	3	UL94 V-0	Signal	Housing/Shell (Unthreaded)	Plug Male Pins	3 A	0.203 çm	8 µin	D-Sub	2
TE Connectivity AMP Connectors 5-747912-7	Polybutylene Terephthalate (PBT) Glass Filled	250 V	-55 C	105 ░C	Black	Brass	Grounding Indents	Gold	Free Hanging (In-Line)	25	B DB	3	UL94 V-0	Signal	Cable Side (4-40)	Plug Male Pins	3 A	0.203 çm	8 µin	D-Sub	2
