SFH 325 Series

Catalog

SENSOR PHOTO 980NM SID VIEW PLCC

Part	Current - Collector (Ic) (Max) [Max]	Viewing Angle	Package / Case	Current - Dark (Id) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Power - Max [Max]	Wavelength	Voltage - Collector Emitter Breakdown (Max) [Max]	Orientation [custom]

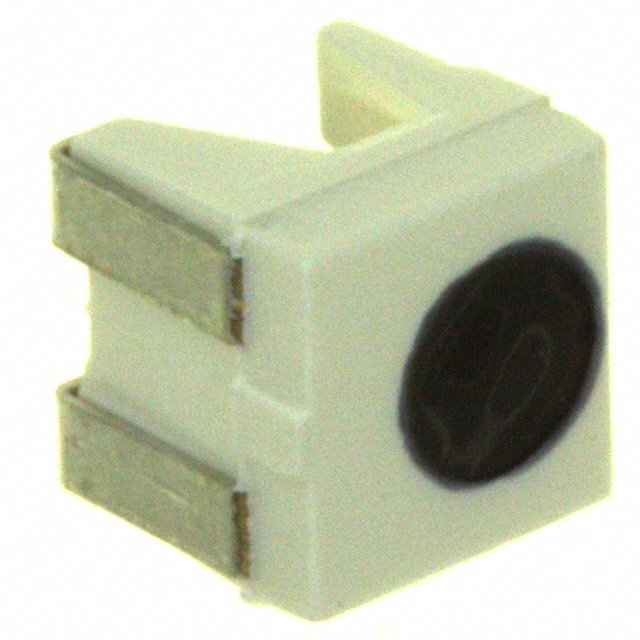

ams-OSRAM USA INC. SFH 325 FA-4-Z	15 mA	120 °	2-LCC (J-Lead)	50 nA	-40 C	100 °C	Right Angle Surface Mount	165 mW	980 nm	35 V	Side View
ams-OSRAM USA INC. SFH 325 FA-Z	15 mA	120 °	2-LCC (J-Lead)	50 nA	-40 C	100 °C	Right Angle Surface Mount	165 mW	980 nm	35 V	Side View
ams-OSRAM USA INC. SFH 325 FA-3/4-Z	15 mA	120 °	2-SMD Boomerang	50 nA	-40 C	100 °C	Right Angle Surface Mount	165 mW	980 nm	35 V	Side View

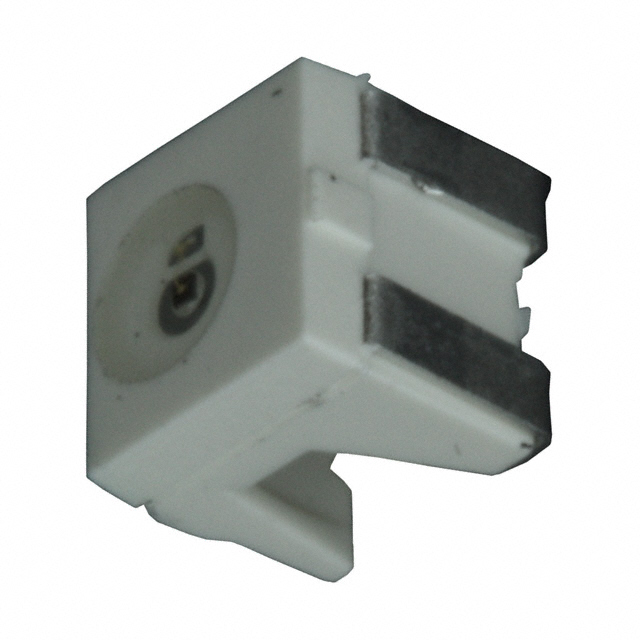

ams-OSRAM USA INC. SFH 325-Z	15 mA	120 °	2-SMD Boomerang	50 nA	-40 C	100 °C	Right Angle Surface Mount	165 mW	980 nm	35 V	Side View
ams-OSRAM USA INC. SFH 325 FAG-Z

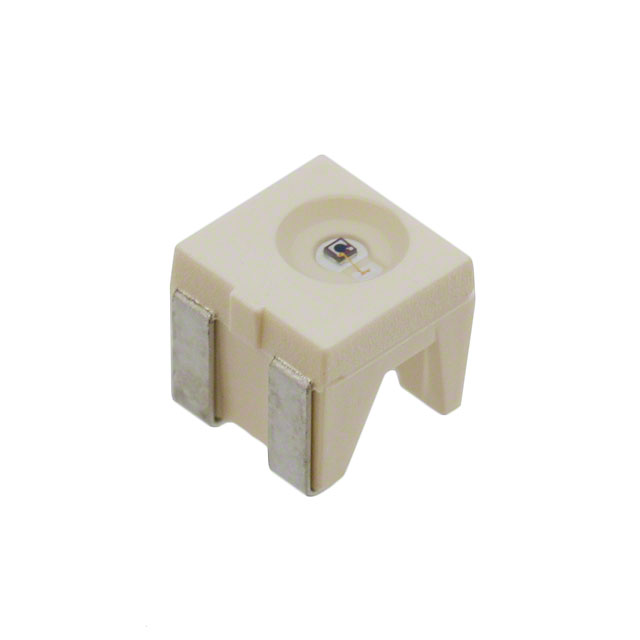

ams-OSRAM USA INC. SFH 325-3/4-Z	15 mA	120 °	2-SMD Boomerang	50 nA	-40 C	100 °C	Right Angle Surface Mount	165 mW	980 nm	35 V	Side View
ams-OSRAM USA INC. SFH 325-3-Z	15 mA	120 °	2-LCC (J-Lead)	50 nA	-40 C	100 °C	Right Angle Surface Mount	165 mW	980 nm	35 V	Side View
