195-015 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CONN D-SUB HD RCPT 15POS PNL MNT
| Part | Dielectric Material | Contact Form | Color | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Contact Finish Thickness | Number of Rows [custom] | Shell Material, Finish | Material Flammability Rating | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Current Rating (Amps) | Number of Positions | Features | Connector Type | Mounting Type | Contact Finish | Termination | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

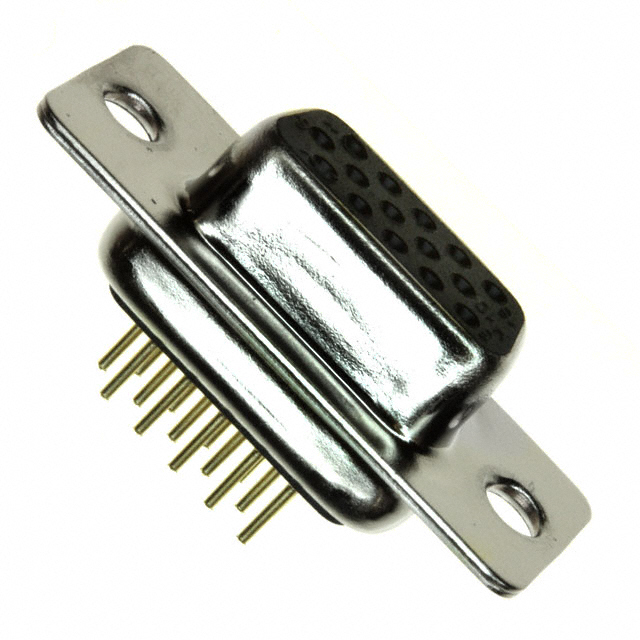

 NorComp Inc. | Polybutylene Terephthalate (PBT) | Stamped | Black | Phosphor Bronze | -55 C | 125 °C | Housing/Shell (Unthreaded) | Flash | 3 | Nickel Plated Steel | UL94 V-0 | D-Sub High Density | (DE E) High Density | 1 | 2 A | 15 | Shielded | Receptacle Female Sockets | Panel Mount Through Hole | Gold | Solder | Signal |

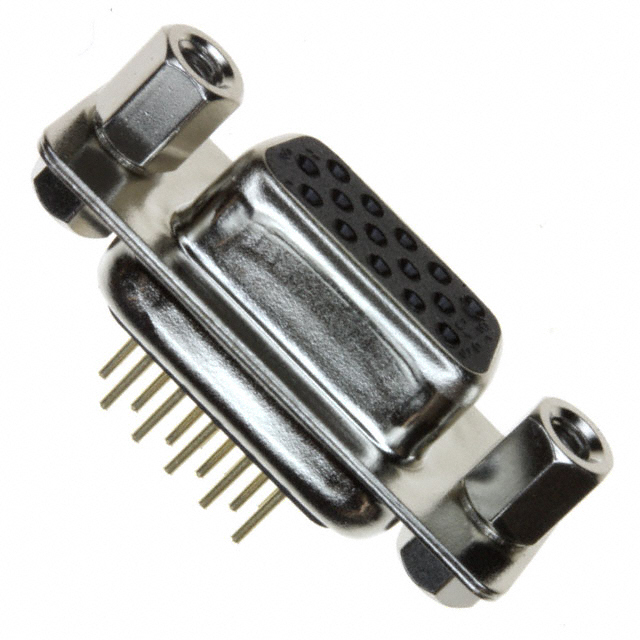

 NorComp Inc. | Polybutylene Terephthalate (PBT) | Stamped | Black | Phosphor Bronze | -55 C | 125 °C | 4-40 Mating Side Female Screwlock | Flash | 3 | Nickel Plated Steel | UL94 V-0 | D-Sub High Density | (DE E) High Density | 1 | 2 A | 15 | Shielded | Receptacle Female Sockets | Panel Mount Through Hole | Gold | Solder | Signal |
 NorComp Inc. | Polyester Thermoplastic | Stamped | Black | Phosphor Bronze | -55 C | 125 °C | Housing/Shell (Unthreaded) | Flash | 3 | Nickel Plated Steel | UL94 V-0 | D-Sub High Density | (DE E) High Density | 1 | 2 A | 15 | Receptacle Female Sockets | Panel Mount Through Hole | Gold | Solder | Signal |
