SSI-LXH072 Series

Catalog

LED PANEL INDICATOR YELLOW 2.1V

Part	Lens Size [x]	Lens Size [y]	Panel Cutout Shape	Lens Transparency	Current	Lens Color	Lamp Color	Type	Voltage	Viewing Angle	Lens Style	Millicandela Rating	Wavelength - Peak	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]
Lumex Opto/Components Inc. SSI-LXH072SYD-150	7 mm	2.3 mm	Rectangle	Diffused	20 mA	Yellow	Yellow	LED	2.1 V	110 °	Rectangle with Flat Top	160 mcd	585 nm

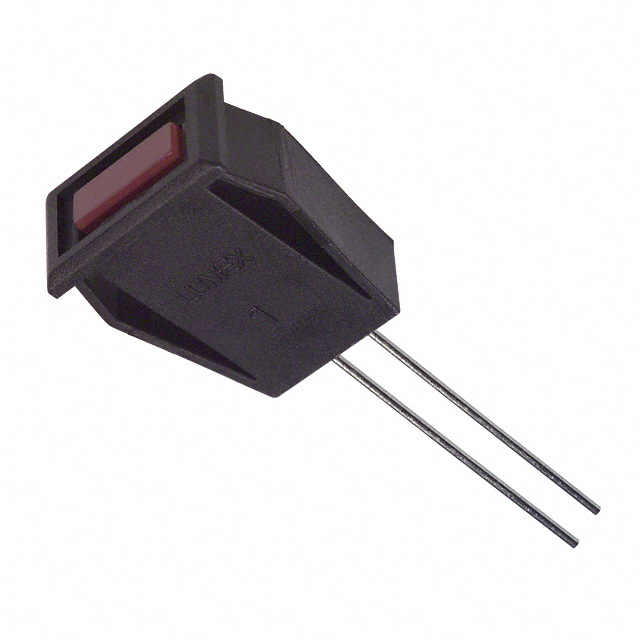

Lumex Opto/Components Inc. SSI-LXH072SRD	7 mm	2.3 mm	Rectangle	Diffused	30 mA	Red	Red	LED	1.7 V	110 °	Rectangle with Flat Top	50 mcd	660 nm	0.21 in	0.43 "	5.3 mm	11 mm

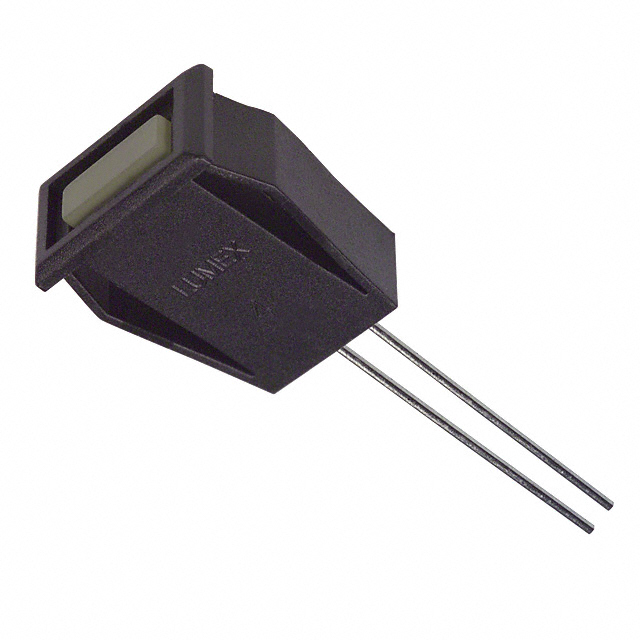

Lumex Opto/Components Inc. SSI-LXH072YD	7 mm	2.3 mm	Rectangle	Diffused	30 mA	Yellow	Yellow	LED	2.1 V	110 °	Rectangle with Flat Top	9 mcd	585 nm	0.21 in	0.43 "	5.3 mm	11 mm

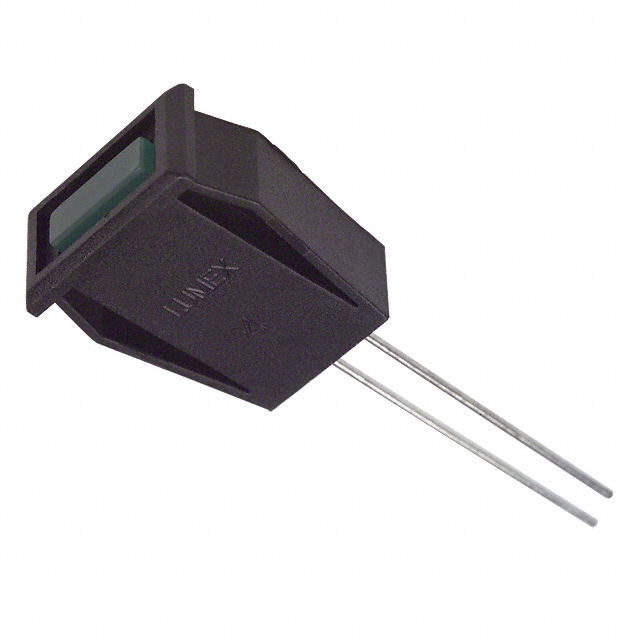

Lumex Opto/Components Inc. SSI-LXH072GD	7 mm	2.3 mm	Rectangle	Diffused	25 mA	Green	Green	LED	2.2 V	110 °	Rectangle with Flat Top	9 mcd	565 nm	0.21 in	0.43 "	5.3 mm	11 mm
Lumex Opto/Components Inc. SSI-LXH072SRD-150	7 mm	2.3 mm	Rectangle	Diffused	20 mA	Red	Red	LED	1.8 V	110 °	Rectangle with Flat Top	50 mcd	660 nm
Lumex Opto/Components Inc. SSI-LXH072IGW3-150	7 mm	2.3 mm	Rectangle	Diffused	20 mA 20 mA	White	Green Red	LED	2 V 2.2 V	110 °	Rectangle with Flat Top	9 mcd 10 mcd	565 nm 635 nm
