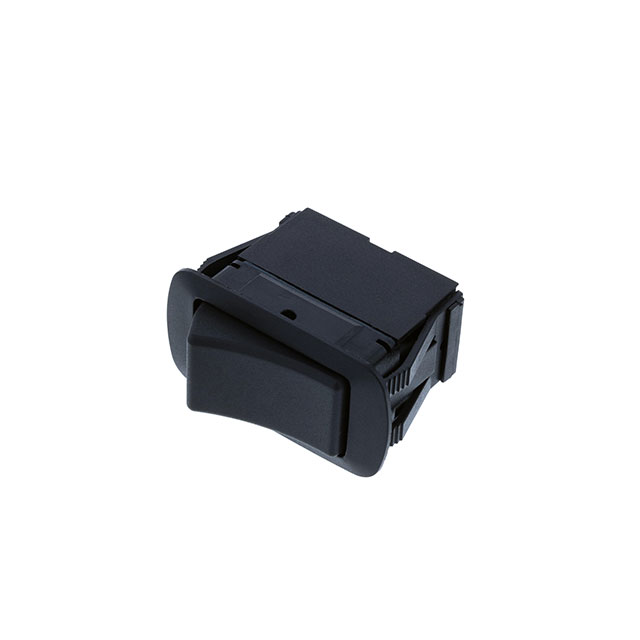

SRB1-1A Series
Manufacturer: Switch Components
Beta
⌘K
SWITCH ROCKER SPST 10A 125V
| Part | Electrical Life (Cycles) | Mechanical Life (Cycles) | Quick Connect Size (0.250") | Termination Style | Voltage Rating - DC | Circuit | Operating Temperature (Max) | Operating Temperature (Min) | Actuator Marking | Switch Function | Current Rating | Panel Cutout Width | Panel Cutout Shape | Panel Cutout Length | Voltage Rating - AC | Actuator Type | Color - Actuator/Cap | Ingress Protection IP Rating | Ingress Protection Description | Approval Agency | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch Components | 6000 Cycles | 10000 Cycles | 0.25 in | Quick Connect | 14 V | SPST | 85 °C | -20 °C | No Marking | On-Off | 20 A 21 A | 21.2 mm | Rectangular | 36.6 mm | 125 V | Concave (Curved) | Black | IP56 | Dust Protected Water Resistant | CSA cURus ENEC | Panel Mount Snap-In |
