A-CSL-S Series
Manufacturer: Assmann WSW Components
Beta
⌘K
CONN PIN SPRING LOAD 2.540MM AU
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Plunger Size [diameter] | Plunger Size [diameter] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Contact Type | Current Rating (Amps) | Minimum Working Height | Minimum Working Height | Operating Force - Initial | Pad Layout Dimension | Pad Layout Dimension | Mounting Type | Recommended Working Height | Recommended Working Height | Mating Cycles | Maximum Working Height [Max] | Maximum Working Height [Max] | Contact Material | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

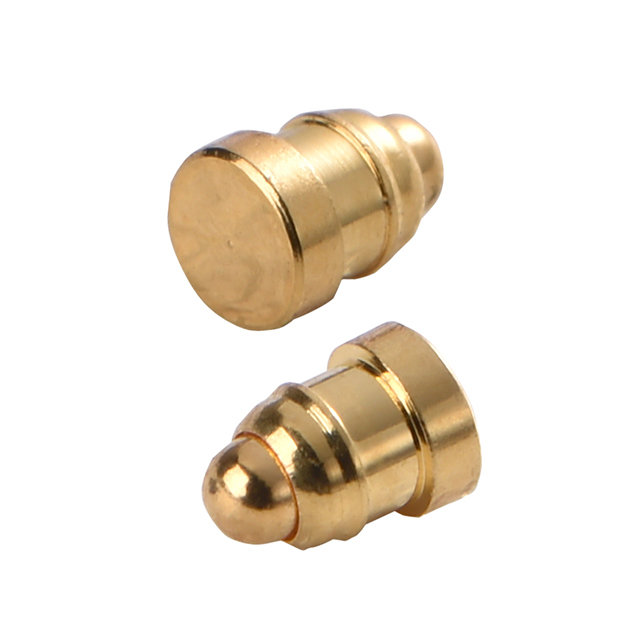

 Assmann WSW Components | -55 C | 125 °C | 0.042 in | 1.07 mm | 20 µin | 0.51 µm | Gold | Sleeve & Plunger (Pogo Pins) | 2 A | 1.93 mm | 0.076 in | 70 gf | 0.072 in | 1.83 mm | Surface Mount | 0.088 in | 2.24 mm | 1000000 | 2.54 mm | 0.1 " | Brass | ||

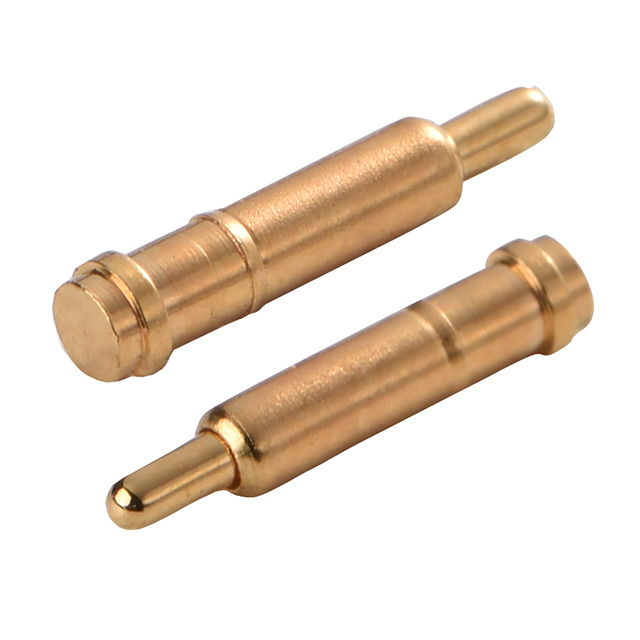

 Assmann WSW Components | -55 C | 125 °C | 0.032 " | 0.81 mm | 20 µin | 0.51 µm | Gold | Sleeve & Plunger (Pogo Pins) | 2 A | 6.1 mm | 0.24 in | 60 gf | Surface Mount | 0.268 in | 6.8 mm | 1000000 | 7.49 mm | 0.295 in | Brass | 0.066 in | 1.68 mm |
