SAN.M13 Series

Manufacturer: LEMO

Catalog

CONN PLUG MALE 13P GOLD SLDR CUP

Part	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Features	Mounting Type	Shell Size - Insert	Fastening Type	Color	Applications	Number of Positions	Connector Type	Backshell Material, Plating	Shell Material	Orientation	Current Rating (Amps)	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Contact Finish - Mating	Insert Material	Primary Material	Shielding

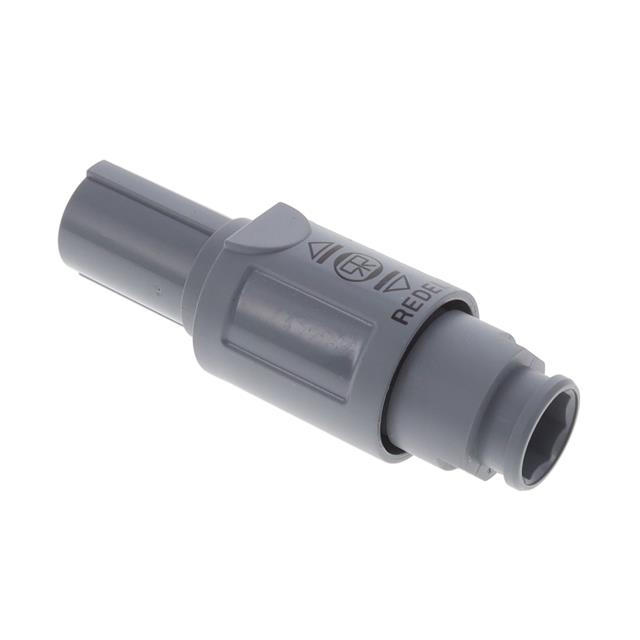

LEMO SAN.M13.GLA.6GZ	IP50 - Dust Protected	170 °C	-50 °C	Backshell	Free Hanging (In-Line)	M13	Push-Pull	Gray	Automotive Industrial Medical Testing Equipment & Measurement	13	Plug Male Pins	Sulfone	Sulfone	N (Normal)	4 A	6.5 mm	0.209 in	0.256 in	5.3 mm	Gold	Polyetheretherketone (PEEK)	Plastic	Unshielded

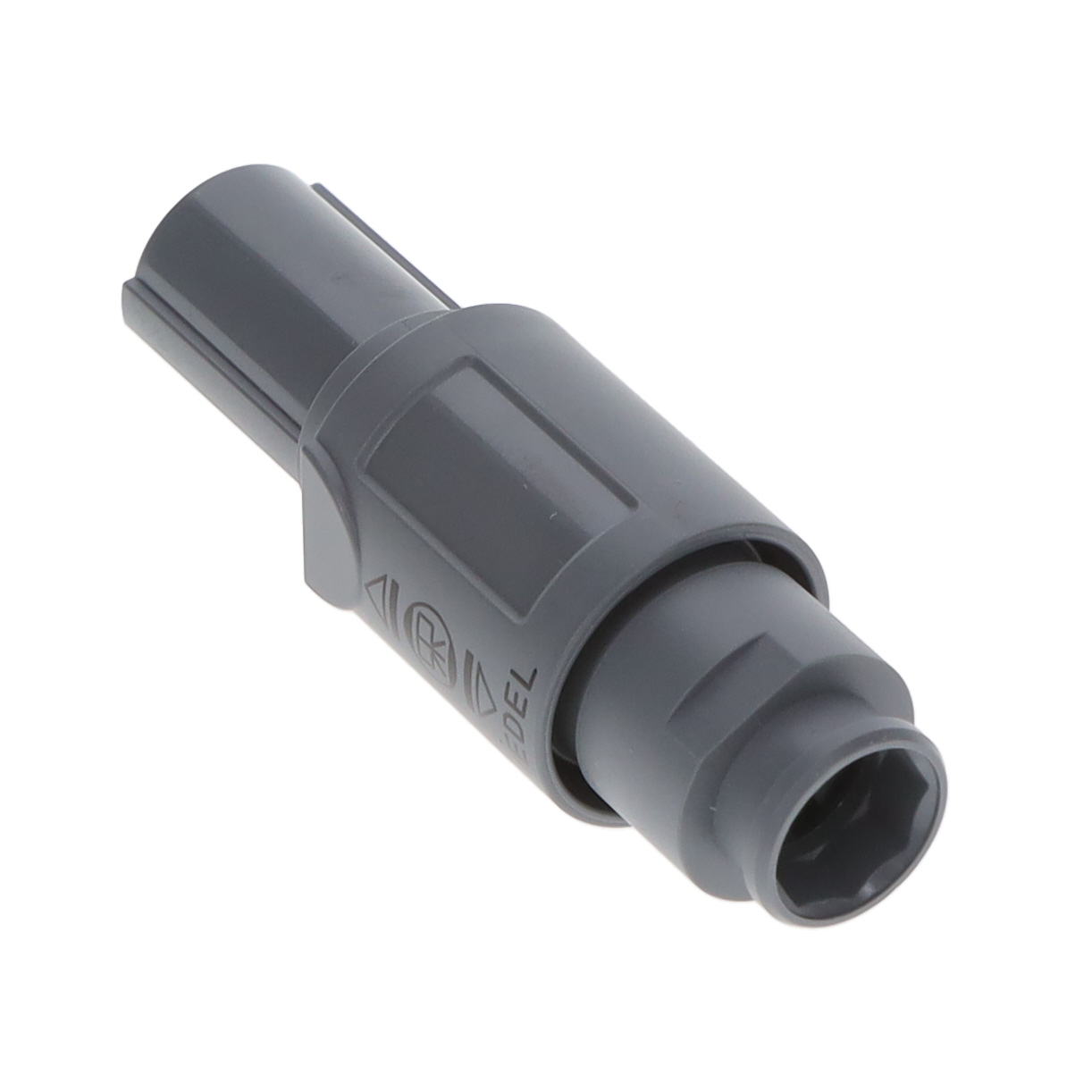

LEMO SAN.M13.GLA.3GZ	IP50 - Dust Protected	170 °C	-50 °C	Backshell	Free Hanging (In-Line)	M13	Push-Pull	Gray	Automotive Industrial Medical Testing Equipment & Measurement	13	Plug Male Pins	Sulfone	Sulfone	N (Normal)	4 A	3.9 mm	0.098 in	0.154 in	2.5 mm	Gold	Polyetheretherketone (PEEK)	Plastic	Unshielded
LEMO SAN.M13.GLA.3G	IP50 - Dust Protected	170 °C	-50 °C	Backshell	Free Hanging (In-Line)	M13	Push-Pull	Gray	Automotive Industrial Medical Testing Equipment & Measurement	13	Plug Male Pins	Sulfone	Sulfone	N (Normal)	4 A	3.9 mm	0.098 in	0.154 in	2.5 mm	Gold	Polyetheretherketone (PEEK)	Plastic	Unshielded
LEMO SAN.M13.GLA.6G	IP50 - Dust Protected	170 °C	-50 °C	Backshell	Free Hanging (In-Line)	M13	Push-Pull	Gray	Automotive Industrial Medical Testing Equipment & Measurement	13	Plug Male Pins	Sulfone	Sulfone	N (Normal)	4 A	6.5 mm	0.209 in	0.256 in	5.3 mm	Gold	Polyetheretherketone (PEEK)	Plastic	Unshielded
LEMO SAN.M13.GLA.6A	IP50 - Dust Protected	170 °C	-50 °C	Backshell	Free Hanging (In-Line)	M13	Push-Pull	Blue Gray	Automotive Industrial Medical Testing Equipment & Measurement	13	Plug Male Pins	Sulfone	Sulfone	N (Normal)	4 A	6.5 mm	0.209 in	0.256 in	5.3 mm	Gold	Polyetheretherketone (PEEK)	Plastic	Unshielded
LEMO SAN.M13.GLA.7GZ	IP50 - Dust Protected	170 °C	-50 °C	Backshell	Free Hanging (In-Line)	M13	Push-Pull	Gray	Automotive Industrial Medical Testing Equipment & Measurement	13	Plug Male Pins	Sulfone	Sulfone	N (Normal)	4 A	7.5 mm	0.26 "	0.295 in	6.6 mm	Gold	Polyetheretherketone (PEEK)	Plastic	Unshielded
