745-076 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 76 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Part	Termination Rows [custom]	Material - Insulation	Number of Rows [custom]	Number of Positions	Number of Positions/Bay/Row [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Card Type	Contact Finish	Contact Type	Termination	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Color	Contact Finish Thickness	Contact Finish Thickness	Gender	Pitch	Pitch	Read Out

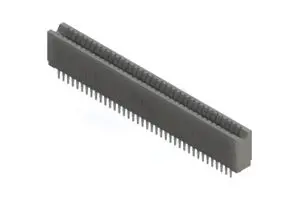

EDAC Inc. 745-076-520-206	2	Polyester Thermoplastic	2	76	38	-40 C	105 ░C	Through Hole	Non Specified - Dual Edge	Gold	Cantilever	Press-Fit	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	30 Áin	0.76 Ám	Female	0.1 "	2.54 mm	Dual
EDAC Inc. 745-076-525-206	2	Polyester Thermoplastic	2	76	38	-40 C	105 ░C	Through Hole	Non Specified - Dual Edge	Gold	Cantilever	Press-Fit	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	30 Áin	0.76 Ám	Female	0.1 "	2.54 mm	Dual

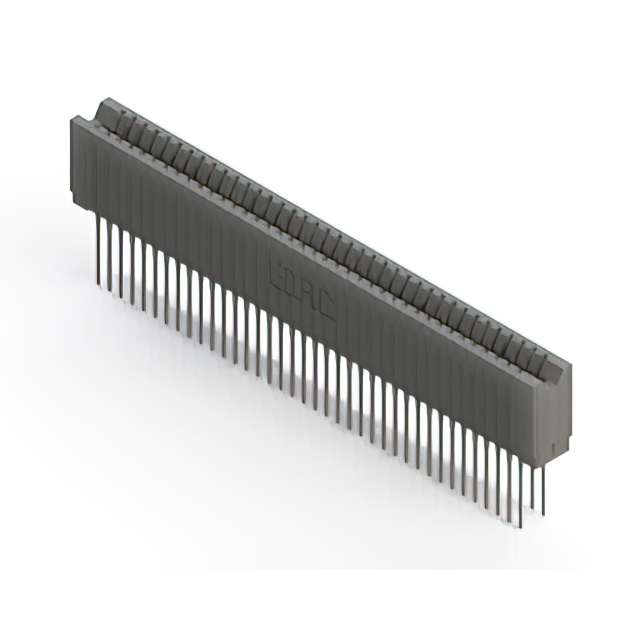

EDAC Inc. 745-076-545-206	2	Polyester Thermoplastic	2	76	38	-40 C	105 ░C	Through Hole	Non Specified - Dual Edge	Gold	Cantilever	Press-Fit	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	30 Áin	0.76 Ám	Female	0.1 "	2.54 mm	Dual
EDAC Inc. 745-076-522-201	2	Polyester Thermoplastic	2	76	38	-40 C	105 ░C	Through Hole	Non Specified - Dual Edge	Gold	Cantilever	Press-Fit	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	30 Áin	0.76 Ám	Female	0.1 "	2.54 mm	Dual

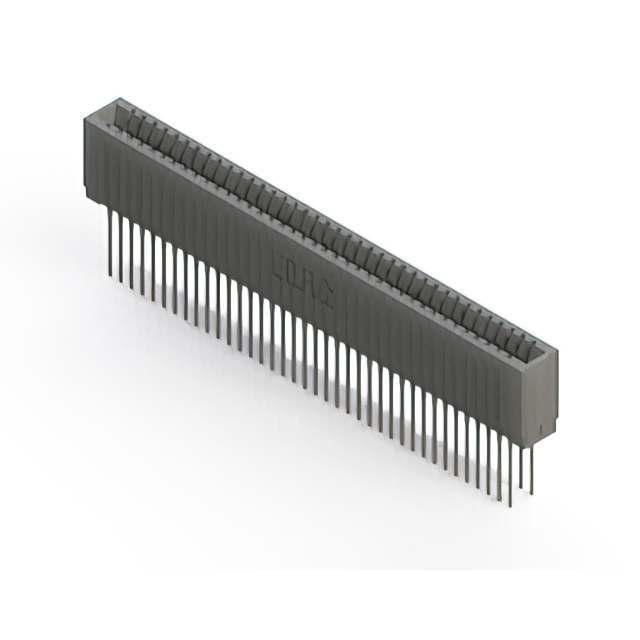

EDAC Inc. 745-076-541-201	2	Polyester Thermoplastic	2	76	38	-40 C	105 ░C	Through Hole	Non Specified - Dual Edge	Gold	Cantilever	Press-Fit Wire Wrap	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	30 Áin	0.76 Ám	Female	0.1 "	2.54 mm	Dual
EDAC Inc. 745-076-525-201	2	Polyester Thermoplastic	2	76	38	-40 C	105 ░C	Through Hole	Non Specified - Dual Edge	Gold	Cantilever	Press-Fit	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	30 Áin	0.76 Ám	Female	0.1 "	2.54 mm	Dual
