IP405 Series
Manufacturer: Freescale Semiconductor - NXP
Beta
⌘K
FILTER RC(PI) ESD SMD
| Part | Height [z] | Height [z] | Mounting Type | Applications | ESD Protection | Values | Package / Case | Resistance - Channel (Ohms) | Resistance - Channel (Ohms) | Technology | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Type | Filter Order | Number of Channels [custom] | Number of Channels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

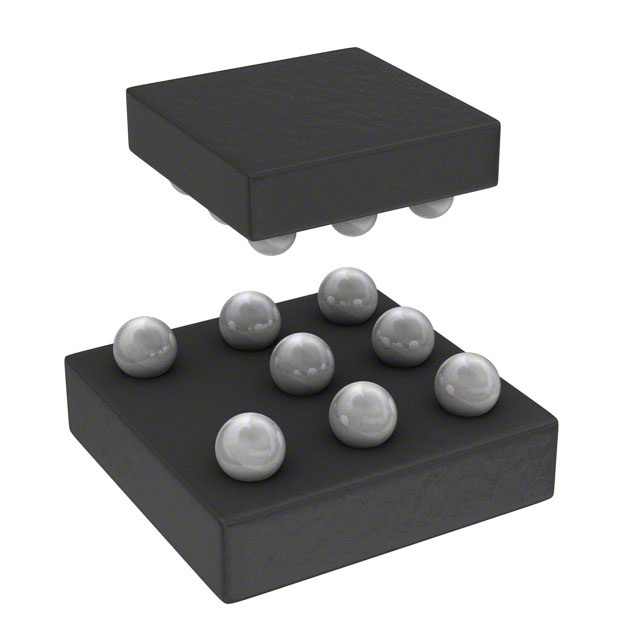

 Freescale Semiconductor - NXP | 0.026 in | 0.65 mm | Surface Mount | USB | 1.5 kOhms 33 Ohms 35 pF | 8-UFBGA WLCSP | 1.5k | 33 Ohms | RC (Pi) | -30 ░C | 85 °C | 0.91 mm | 0.075 in | 1.9 mm | 0.036 in | Low Pass | 2nd | 2 | ||
Freescale Semiconductor - NXP | 0.026 in | 0.65 mm | Surface Mount | Data Lines for Mobile Devices | 25 pF 47 Ohms | 11-WFBGA WLCSP | 13k 47 56k | RC (Pi) | -40 °C | 85 °C | 1.41 mm | 0.075 in | 1.91 mm | 0.056 in | Low Pass | 2nd | 4 |
