391-056 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 56POS 0.100

Part	Material - Insulation	Termination Rows	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row	Card Type	Flange Feature	Number of Rows	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Gender	Read Out	Contact Finish	Mounting Type	Termination	Color	Contact Type	Number of Positions	Termination Rows [custom]	Number of Rows [custom]	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 391-056-524-108	Polyester Thermoplastic	1	Copper Alloy	0.25 Ám	10 Áin	-40 C	105 ░C	56	Non Specified - Single Edge	4-40 Flush Mount Threaded Insert Top Opening	1	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female	Single	Gold	Through Hole	Solder	Black	Semi Bellows	56
EDAC Inc. 391-056-521-207	Polyester Thermoplastic		Copper Alloy	0.25 Ám	10 Áin	-40 C	105 ░C	28	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening		0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female	Dual	Gold	Through Hole	Solder	Black	Semi Bellows	56	2	2
EDAC Inc. 391-056-522-108	Polyester Thermoplastic	1	Copper Alloy	0.25 Ám	10 Áin	-40 C	105 ░C	56	Non Specified - Single Edge	4-40 Flush Mount Threaded Insert Top Opening	1	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female	Single	Gold	Through Hole	Solder	Black	Semi Bellows	56
EDAC Inc. 391-056-560-201	Polyester Thermoplastic		Copper Alloy	0.25 Ám	10 Áin	-40 C	105 ░C	28	Non Specified - Dual Edge			0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female	Dual	Gold	Board Edge Straddle Mount	Solder	Black	Semi Bellows	56	2	2	Card Extender
EDAC Inc. 391-056-521-103	Polyester Thermoplastic	1	Copper Alloy	0.25 Ám	10 Áin	-40 C	105 ░C	56	Non Specified - Single Edge	Floating Bobbin Flush Mount	1	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female	Single	Gold	Through Hole	Solder	Black	Semi Bellows	56				0.116 "	2.95 mm
EDAC Inc. 391-056-560-202	Polyester Thermoplastic		Copper Alloy	0.25 Ám	10 Áin	-40 C	105 ░C	28	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded		0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female	Dual	Gold	Board Edge Straddle Mount	Solder	Black	Semi Bellows	56	2	2	Card Extender	0.128 "	3.25 mm

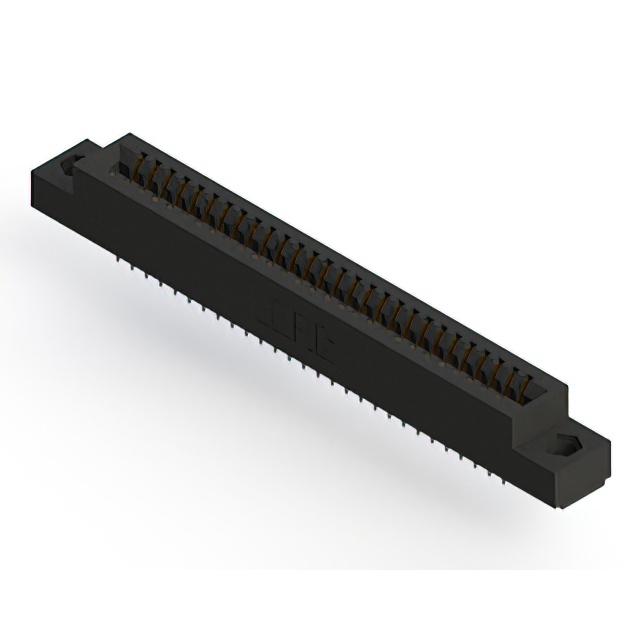

EDAC Inc. 391-056-520-204	Polyester Thermoplastic		Copper Alloy	0.25 Ám	10 Áin	-40 C	105 ░C	28	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded		0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female	Dual	Gold	Through Hole	Solder	Black	Semi Bellows	56	2	2		0.156 "	3.96 mm
EDAC Inc. 391-056-521-202	Polyester Thermoplastic		Copper Alloy	0.25 Ám	10 Áin	-40 C	105 ░C	28	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded		0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female	Dual	Gold	Through Hole	Solder	Black	Semi Bellows	56	2	2		0.128 "	3.25 mm
EDAC Inc. 391-056-520-103	Polyester Thermoplastic	1	Copper Alloy	0.25 Ám	10 Áin	-40 C	105 ░C	56	Non Specified - Single Edge	Floating Bobbin Flush Mount	1	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female	Single	Gold	Through Hole	Solder	Black	Semi Bellows	56				0.116 "	2.95 mm

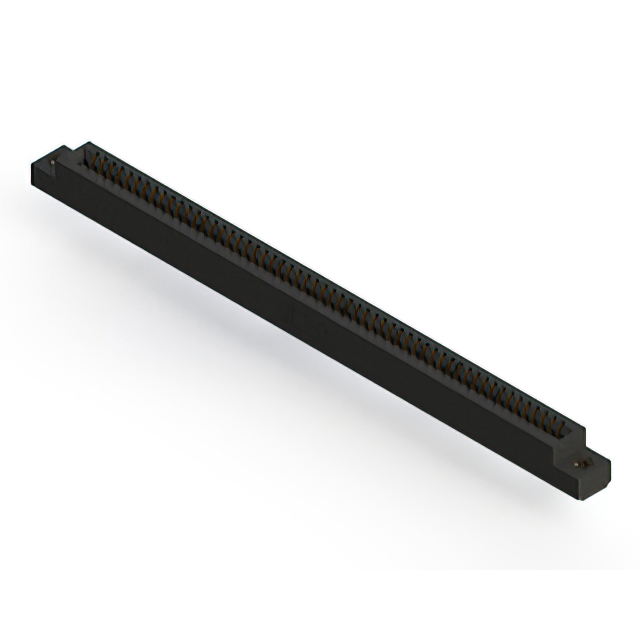

EDAC Inc. 391-056-520-107	Polyester Thermoplastic	1	Copper Alloy	0.25 Ám	10 Áin	-40 C	105 ░C	56	Non Specified - Single Edge	Flush Mount M3 Threaded Insert Top Opening	1	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	Female	Single	Gold	Through Hole	Solder	Black	Semi Bellows	56
