170324 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

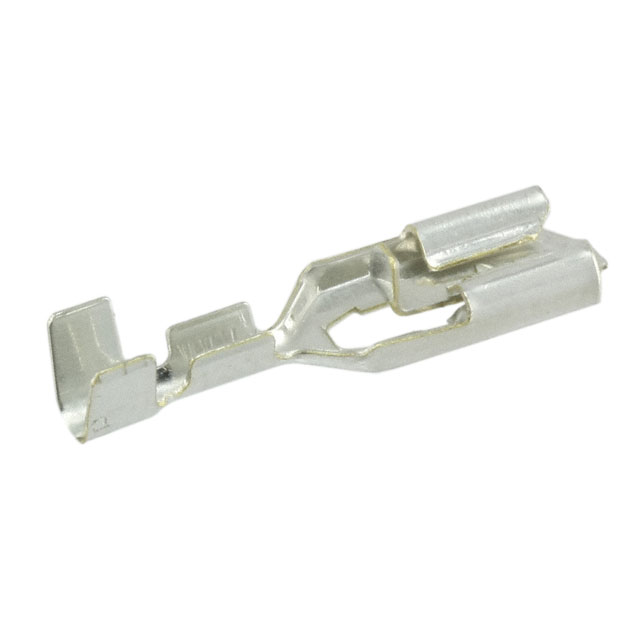

CONN QC RCPT 20-24AWG 0.187
| Part | Terminal Type | Gender | Contact Finish | Tab Thickness | Tab Thickness | Length - Overall [x] | Length - Overall [x] | Contact Material | Tab Width | Tab Width | Mounting Type | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation | Wire Gauge [Min] | Wire Gauge [Max] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Standard | Female | Tin | 0.02 " | 0.51 mm | 21.59 mm | 0.85 " | Brass | 4.75 mm | 0.187 in | Free Hanging (In-Line) | 0.059 " | 0.106 " | 1.5 mm | 2.69 mm | Non-Insulated | 20 AWG | 24 AWG | Crimp |
