BD88400GUL Series

80-mW Coupling Capacitorless Stereo Headphone Amplifier

Catalog

80-mW Coupling Capacitorless Stereo Headphone Amplifier

Part	Supplier Device Package	Output Type	Features	Voltage - Supply [Min]	Voltage - Supply [Max]	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [x]	Package / Case [y]	Package / Case	Type	Mounting Type
Rohm Semiconductor BD88400FJ-GE2	14-SOPJ	2-Channel (Stereo)	Short-Circuit and Thermal Protection	2.4 V	5.5 V	16 Ohm 80 mW	2	85 °C	-40 °C	0.154 in	3.9 mm	14-SOIC	Class AB	Surface Mount

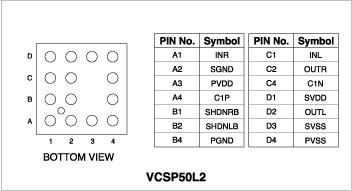

Rohm Semiconductor BD88400GUL-E2	VCSP50L2	2-Channel (Stereo)	Short-Circuit and Thermal Protection	2.4 V	5.5 V	16 Ohm 80 mW	2	85 °C	-40 °C			14-UFBGA CSPBGA	Class AB	Surface Mount

Catalog

80-mW Coupling Capacitorless Stereo Headphone Amplifier

Key Features

• No Bulky DC-Blocking Capacitors Required, No Degradation of Low-Frequency Response Due to Output Capacitors, Ground-Referenced Outputs, Gain setting: Variable Gain with External Resistors, Low THD+N, Low Supply Current, Integrated Negative Power Supply, Integrated Short-Circuit and Thermal-Overload Protection

Description

BD88xxxGUL is output coupling capacitorless headphone amplifier. This IC has a negative voltage generator of regulated type built-in and generates the direct regulated negative voltage from the positive voltage. It is possible to drive headphones in a ground standard with both voltage of the supply voltage and the negative voltage. Therefore a large-capacity output coupling capacitor become needless and can reduce a cost, a board area, and the height of the part. In addition, there is not the signal decrement by the low range to happen by output coupling capacitor and output load impedance and can output a rich low tone. This series has a line up with the reference voltage type and the gain type.
