GFC0848 Series
Manufacturer: Delta Electronics
Beta
⌘K

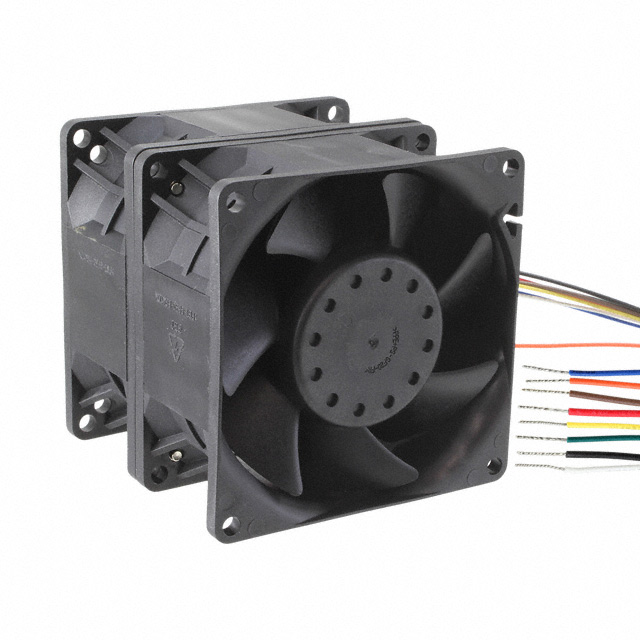

FAN AXIAL DUAL 80X80MM 48VDC
| Part | Current Rating (Amps) | Material - Blade | Material - Frame | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Size / Dimension [z] | Size / Dimension [x] | Fan Type | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Noise | Bearing Type | Features | Air Flow | Air Flow | Width [y] | Static Pressure | Static Pressure | Termination | Ingress Protection | Weight | Weight | RPM [custom] | RPM [custom] | Approval Agency | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 1.56 A | Plastic | Plastic | 36 VDC | 60 V | 70000 Hrs | 80 mm | 80 mm | Tubeaxial (Dual) | 74.88 W | 70 °C | -10 °C | 76.5 dB(A) | Ball | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 175 CFM | 4.9 mł/min | 80 mm | 1113.4 Pa | 4.47 in H2O | 4 | IP51 - Dust Protected | 387.82 g | 0.855 lb | 11000 RPM | 12500 RPM | CE cURus TUV | 48 VDC |
