ND3FR10 Series

Catalog

SWITCH ROTARY DIP BCD 0.1A 5V

Part	Electrical Life	Body Material	Length [x]	Length [x]	Mechanical Life	Features	Voltage Rating	Height Above Board	Height Above Board	Pitch	Pitch	Pitch	Contact Material	Termination Style	Number of Positions	Contact Finish	Washable	Mounting Type	Circuit	Actuator Level	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Pitch	Height Above Board [z]	Height Above Board [z]
NKK Switches ND3FR10H	20000 Steps	Polyamide (PA) Nylon Glass Filled	0.32 in	8.13 mm	20000 Cycles	Epoxy Sealed Terminals	5 V	8.03 mm	0.316 in	0.05 "	1.27 mm	Half	Beryllium Copper	Gull Wing	10	Gold		Right Angle Surface Mount	BCD	Flush Recessed	Rotary for Tool	85 °C	-25 °C	100 mA

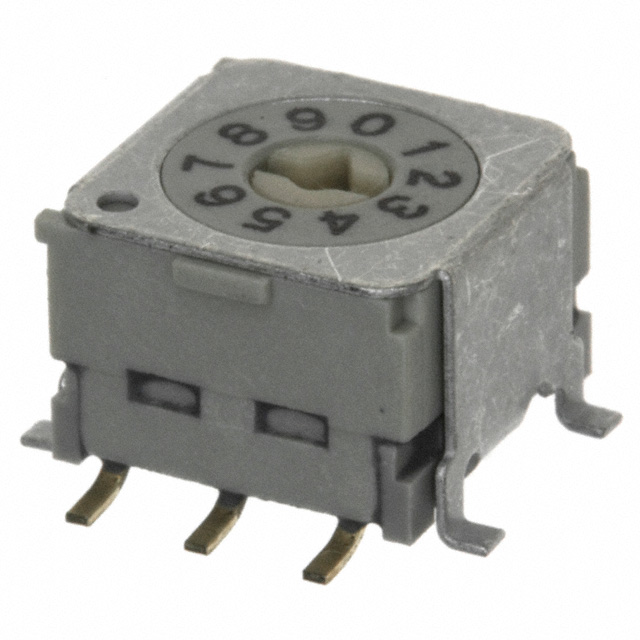

NKK Switches ND3FR10B-R	20000 Steps	Polyamide (PA) Nylon Glass Filled	0.32 in	8.13 mm	20000 Cycles	Epoxy Sealed Terminals	5 V				2.54 mm		Beryllium Copper	Gull Wing	10	Gold		Surface Mount	BCD	Flush Recessed	Rotary for Tool	85 °C	-25 °C	100 mA	0.1 "	0.22 in	5.59 mm
