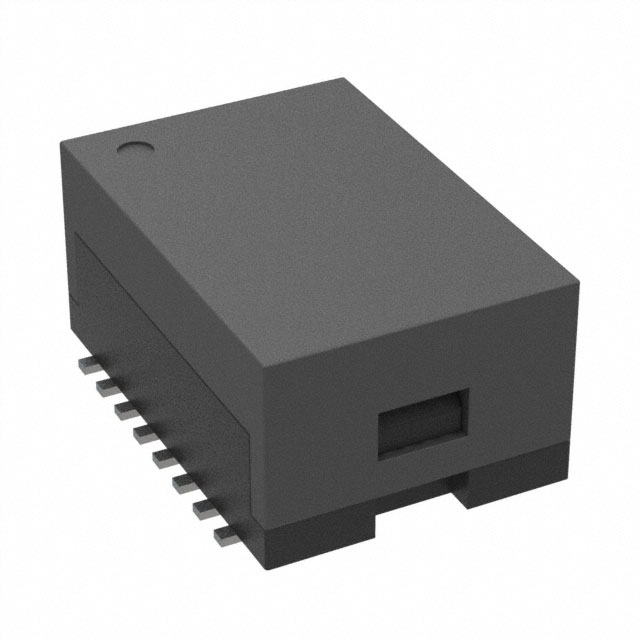

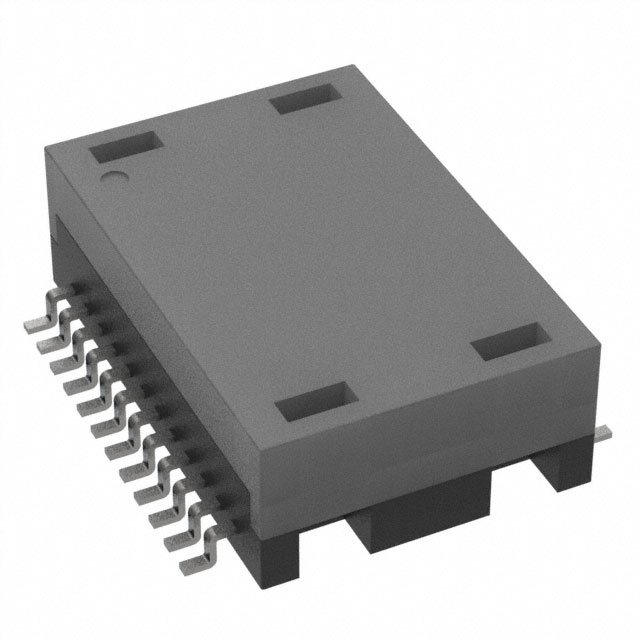

2337822 Series

Catalog

DISCR.ETH.MAG. 1GB SINGLE SMT POE

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Insertion Loss	Termination Style	Height - Seated (Max) [Max]	Height - Seated (Max)	Return Loss	Voltage - Isolation	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
TE Connectivity Raychem Cable Protection 2337822-5	-40 °C	105 ░C	Surface Mount

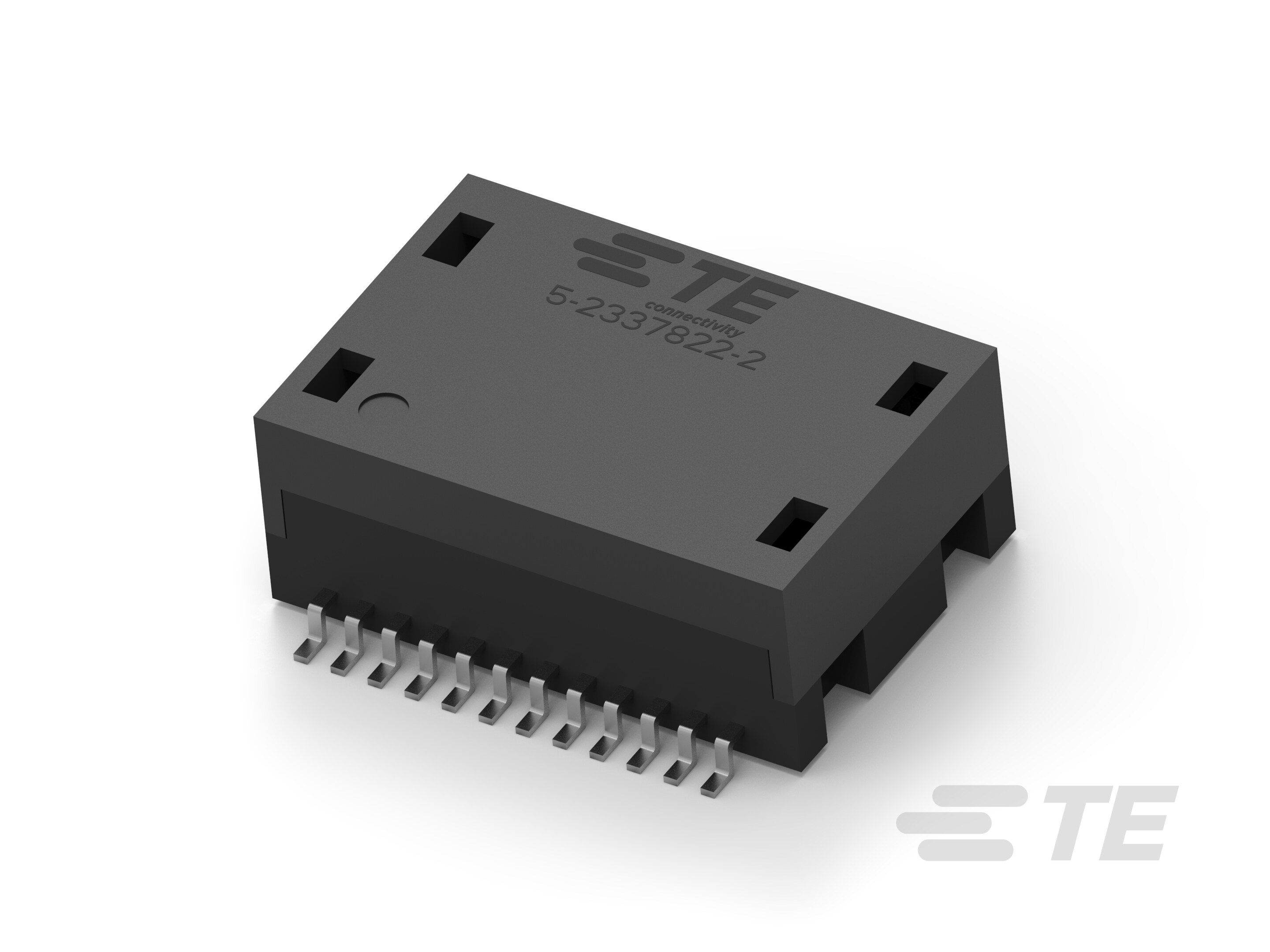

TE Connectivity Raychem Cable Protection 5-2337822-2	-40 °C	105 ░C	Surface Mount	18.25 mm	0.482 in	0.719 "	12.24 mm	1CT	1CT	-1 dB	Gull Wing	0.285 in	7.24 mm	-18 dB	1500 VAC
TE Connectivity Raychem Cable Protection 5-2337822-1	-40 °C	105 ░C	Surface Mount	12.7 mm	0.343 in	0.5 in		1CT	1CT	-1 dB	Gull Wing			-18 dB	1500 VAC	8.7 mm	6.2 mm	0.244 in
TE Connectivity Raychem Cable Protection 5-2337822-4	-40 °C	105 ░C	Surface Mount	12.7 mm	0.343 in	0.5 in		1CT	1CT	-1 dB	Gull Wing			-18 dB	1500 VAC	8.7 mm	6.2 mm	0.244 in
