1971895 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

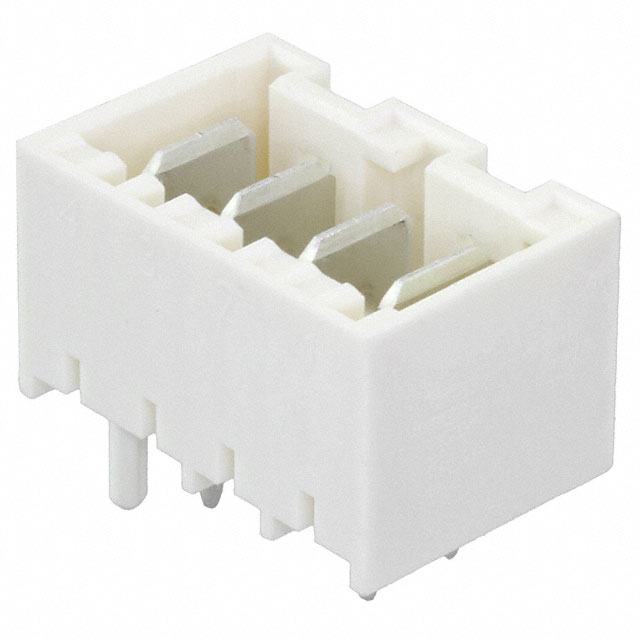

CONN HEADER VERT 4POS 5MM
| Part | Applications | Contact Shape | Fastening Type | Contact Finish - Post | Number of Positions | Mounting Type | Number of Rows | Connector Type | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Insulation Material | Contact Material | Material Flammability Rating | Features | Pitch - Mating | Pitch - Mating | Shrouding | Number of Positions Loaded | Contact Length - Post | Contact Length - Post | Insulation Color | Insulation Height | Insulation Height | Contact Type | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | General Purpose | Rectangular | Latch Holder | Tin | 4 | Through Hole | 1 | Header | Solder | -40 °C | 120 °C | 250 VAC | Nylon Polyamide (PA) | Copper Alloy | UL94 V-0 | Board Guide Glow Wire Compliant | 5 mm | 0.197 " | Shrouded - 4 Wall | All | 3.5 mm | 0.138 in | Natural | 12.8 mm | 0.504 in | Tab | Board to Cable/Wire |
 TE Connectivity Raychem Cable Protection | General Purpose | Rectangular | Latch Holder | Tin | Through Hole | 1 | Header | Solder | -40 °C | 120 °C | 250 VAC | Nylon Polyamide (PA) | Copper Alloy | UL94 V-0 | Board Guide Glow Wire Compliant | 5 mm | 0.197 " | Shrouded - 4 Wall | All | 3.5 mm | 0.138 in | Natural | 12.8 mm | 0.504 in | Tab | Board to Cable/Wire | |
 TE Connectivity Raychem Cable Protection | General Purpose | Rectangular | Latch Holder | Tin | 2 | Through Hole | 1 | Header | Solder | -40 °C | 120 °C | 250 VAC | Nylon Polyamide (PA) | Copper Alloy | UL94 V-0 | Board Guide Glow Wire Compliant | 5 mm | 0.197 " | Shrouded - 4 Wall | All | 3.5 mm | 0.138 in | Natural | 12.8 mm | 0.504 in | Tab | Board to Cable/Wire |
