ETH-127 Series

Catalog

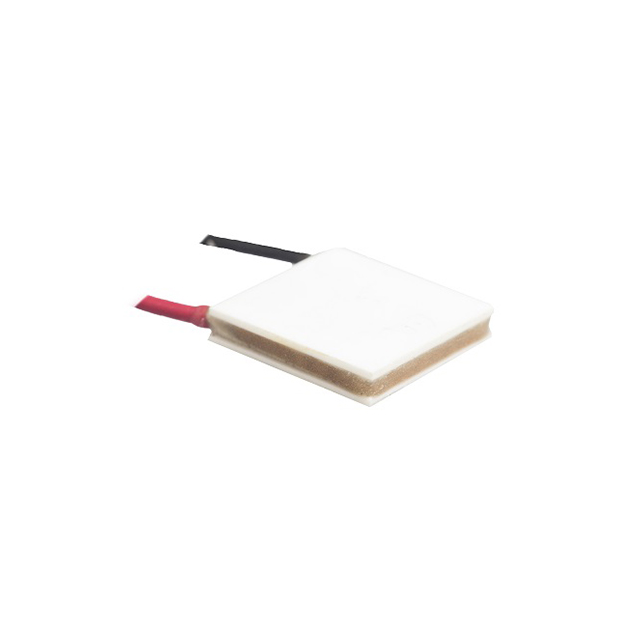

TE HIGH TEMP,127COUPLES,H1,EPOXY

Part	Number of Stages	Resistance	Operating Temperature	Current - Max [Max]	Voltage - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Delta Tmax @ Th	Features	Qmax @ Th	Type	Height	Height [z]
European Thermodynamics Ltd ETH-127-14-15-S-H1	1	2 Ohms	150 °C	6.5 A	15.7 V	40 mm	40 mm	72 °C	Lead Wires Sealed - Silicone	60 W	TEC (Thermoelectric Cooler)	3.8 mm
European Thermodynamics Ltd ETH-127-10-15-E-H1	1	4 Ohms	150 °C	3.1 A	16 V	34 mm	30 mm	72 °C	Lead Wires Sealed - Epoxy	29 W	TEC (Thermoelectric Cooler)		3.4 mm
European Thermodynamics Ltd ETH-127-14-11-S-H1	1			9.2 A	15.8 V	30 mm	15 mm	70 °C			TEC (Thermoelectric Cooler)		3.6 mm
