OSTEX Series

Catalog

TERM BLOCK HDR 4POS VERT 5MM

Part	Contact Tail Length	Contact Tail Length	Mounting Type	Insulation Height [z]	Insulation Height [z]	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Type	Positions Per Level	Pitch	Pitch	Header Orientation	Voltage - UL	Number of Levels	Termination Style	Positions Per Level [custom]

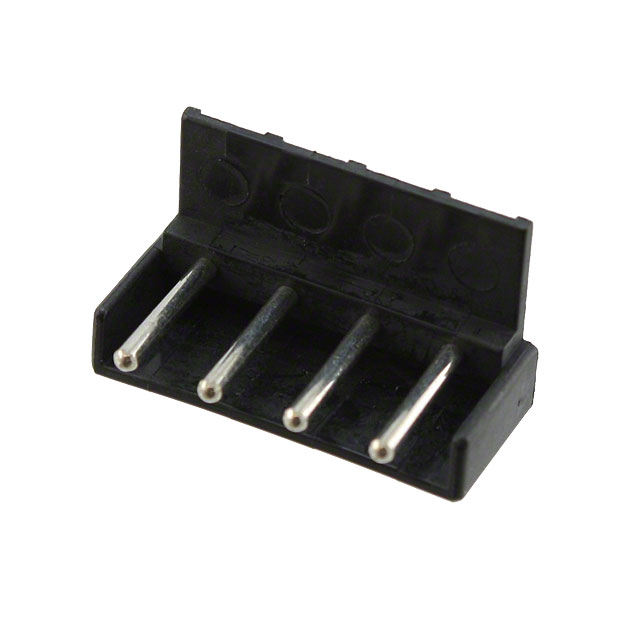

On Shore Technology Inc. OSTEX040000	0.13 in	3.3 mm	Solder Through Hole	0.13 in	3.3 mm	Brass	-30 ░C	105 ░C	4	Header Male Pins Partial Shroud	4	0.197 in	5 mm	Vertical	300 V	1	Solder
On Shore Technology Inc. OSTEX160000	0.13 in	3.3 mm	Solder Through Hole	0.13 in	3.3 mm	Brass	-30 ░C	105 ░C	16	Header Male Pins Partial Shroud	16	0.197 in	5 mm	Vertical	300 V	1	Solder
On Shore Technology Inc. OSTEX020000	0.13 in	3.3 mm	Solder Through Hole	0.13 in	3.3 mm	Brass	-30 ░C	105 ░C	2	Header Male Pins Partial Shroud	2	0.197 in	5 mm	Vertical	300 V	1	Solder
On Shore Technology Inc. OSTEX090000	0.13 in	3.3 mm	Solder Through Hole	0.13 in	3.3 mm	Brass	-30 ░C	105 ░C	9	Header Male Pins Partial Shroud	9	0.197 in	5 mm	Vertical	300 V	1	Solder
On Shore Technology Inc. OSTEX070000	0.13 in	3.3 mm	Solder Through Hole	0.13 in	3.3 mm	Brass	-30 ░C	105 ░C	7	Header Male Pins Partial Shroud		0.197 in	5 mm	Vertical	300 V	1	Solder	7
On Shore Technology Inc. OSTEX140000	0.13 in	3.3 mm	Solder Through Hole	0.13 in	3.3 mm	Brass	-30 ░C	105 ░C	14	Header Male Pins Partial Shroud	14	0.197 in	5 mm	Vertical	300 V	1	Solder
On Shore Technology Inc. OSTEX030000	0.13 in	3.3 mm	Solder Through Hole	0.13 in	3.3 mm	Brass	-30 ░C	105 ░C		Header Male Pins Partial Shroud	3	0.197 in	5 mm	Vertical	300 V	1	Solder
On Shore Technology Inc. OSTEX240000	0.13 in	3.3 mm	Solder Through Hole	0.13 in	3.3 mm	Brass	-30 ░C	105 ░C	24	Header Male Pins Partial Shroud		0.197 in	5 mm	Vertical	300 V	1	Solder	24
On Shore Technology Inc. OSTEX040020	0.13 in	3.3 mm	Solder Through Hole	0.13 in	3.3 mm	Brass	-30 ░C	105 ░C	4	Header Male Pins Partial Shroud	4	0.197 in	5 mm	Vertical	300 V	1	Solder
On Shore Technology Inc. OSTEX220000	0.13 in	3.3 mm	Solder Through Hole	0.13 in	3.3 mm	Brass	-30 ░C	105 ░C	22	Header Male Pins Partial Shroud	22	0.197 in	5 mm	Vertical	300 V	1	Solder
