9556 Series
Manufacturer: Belden Inc.
Beta
⌘K

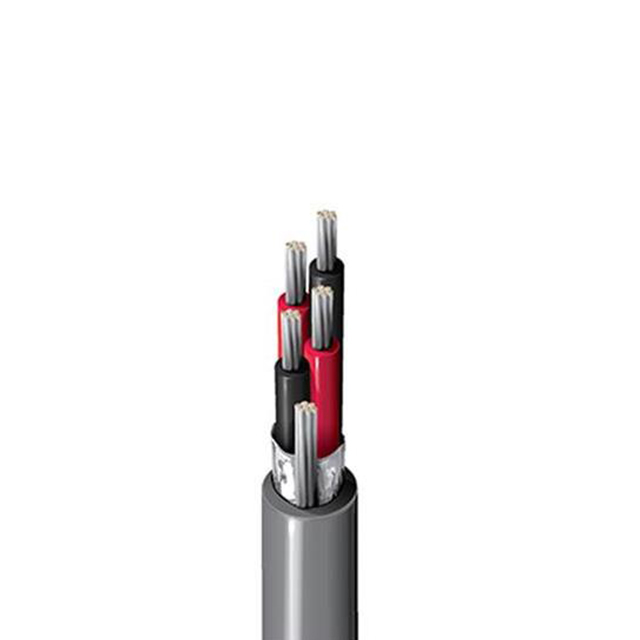

MULTI-PAIR 12COND 18AWG
| Part | Shield Material | Shield Coverage | Conductor Material | Usage | Jacket Color | Shield Type | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Wire Gauge | Ratings | Length | Length | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Copper Tinned | Instrumentation | Chrome | Foil | Poly-Vinyl Chloride (PVC) | 0.053 " | 1.346 mm | Drain Wire Rip Cord | 18 AWG | UL Style 2464 | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | 30 AWG | 19 | Multi-Pair | 0.497 " | 12.62 mm | 12 | -30 ░C | 105 ░C |
Belden Inc. | Aluminum | 100 % | Copper Tinned | Instrumentation | Chrome | Foil | Poly-Vinyl Chloride (PVC) | 0.053 " | 1.346 mm | Drain Wire Rip Cord | 18 AWG | UL Style 2464 | Poly-Vinyl Chloride (PVC) | 30 AWG | 19 | Multi-Pair | 0.497 " | 12.62 mm | 12 | -30 ░C | 105 ░C |
