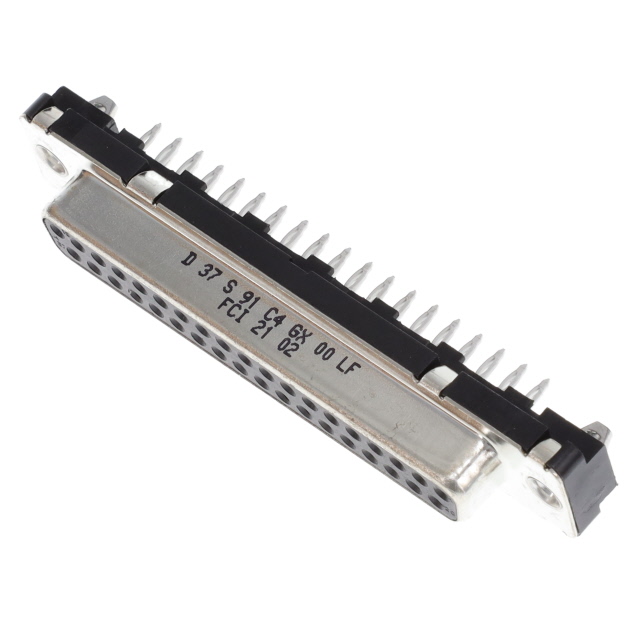

D37S91 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
CONN D-SUB RCPT 37POS VERT PRESS
| Part | Number of Rows | Connector Type | Connector Style | Termination | Current Rating (Amps) | Number of Positions | Voltage Rating | Material Flammability Rating | Flange Feature | Shell Size, Connector Layout | Contact Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Contact Material | Contact Finish Thickness | Dielectric Material | Color | Contact Finish Thickness | Contact Finish Thickness | Features | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 2 | Receptacle Female Sockets | D-Sub | Press-Fit | 5 A | 37 | 300 VDC | UL94 V-0 | Housing/Shell (M3) | 4 (DC C) | Signal | Through Hole | -55 °C | 125 °C | Gold | Phosphor Bronze | Flash | Polybutylene Terephthalate (PBT) | Black | ||||
Amphenol ICC (FCI) | 2 | Receptacle Female Sockets | D-Sub | Press-Fit | 5 A | 37 | 300 VDC | UL94 V-0 | Housing/Shell (4-40) | 4 (DC C) | Signal | Through Hole | -55 °C | 125 °C | Gold | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Black | 0.76 Ám | 30 Áin | |||
Amphenol ICC (FCI) | 2 | Receptacle Female Sockets | D-Sub | Press-Fit | 5 A | 37 | 300 VDC | UL94 V-0 | Female Screwlock (4-40) Mating Side | 4 (DC C) | Signal | Through Hole | -55 °C | 125 °C | Gold | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Black | 0.76 Ám | 30 Áin | Shielded | ||
 Amphenol ICC (FCI) | 2 | Receptacle Female Sockets | D-Sub | Press-Fit | 5 A | 37 | 300 VDC | UL94 V-0 | Housing/Shell (4-40) | 4 (DC C) | Signal | Through Hole | -55 °C | 125 °C | Gold | Phosphor Bronze | Flash | Polybutylene Terephthalate (PBT) | Black | Steel Tin-Nickel Plated | |||
Amphenol ICC (FCI) | 2 | Receptacle Female Sockets | D-Sub | Press-Fit | 5 A | 37 | 300 VDC | UL94 V-0 | Female Screwlock (4-40) Mating Side | 4 (DC C) | Signal | Through Hole | -55 °C | 125 °C | Gold | Phosphor Bronze | Flash | Polybutylene Terephthalate (PBT) | Black | ||||
Amphenol ICC (FCI) | 2 | Receptacle Female Sockets | D-Sub | Press-Fit | 5 A | 37 | 300 VDC | UL94 V-0 | Housing/Shell (M3) | 4 (DC C) | Signal | Through Hole | -55 °C | 125 °C | Gold | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Black | 0.76 Ám | 30 Áin | |||
Amphenol ICC (FCI) | 2 | Receptacle Female Sockets | D-Sub | Press-Fit | 5 A | 37 | 300 VDC | UL94 V-0 | Housing/Shell (4-40) | 4 (DC C) | Signal | Through Hole | -55 °C | 125 °C | Gold | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Black | 0.76 Ám | 30 Áin | Steel Tin-Nickel Plated | ||
Amphenol ICC (FCI) | 2 | Receptacle Female Sockets | D-Sub | Press-Fit | 5 A | 37 | 300 VDC | UL94 V-0 | Housing/Shell (M3) | 4 (DC C) | Signal | Through Hole | -55 °C | 125 °C | Gold | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Black | 0.76 Ám | 30 Áin | |||
Amphenol ICC (FCI) | 2 | Receptacle Female Sockets | D-Sub | Press-Fit | 5 A | 37 | 300 VDC | UL94 V-0 | Female Screwlock (4-40) Mating Side | 4 (DC C) | Signal | Through Hole | -55 °C | 125 °C | Gold | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Black | 0.76 Ám | 30 Áin | |||
Amphenol ICC (FCI) | 2 | Receptacle Female Sockets | D-Sub | Press-Fit | 5 A | 37 | 300 VDC | UL94 V-0 | Housing/Shell (M3) | 4 (DC C) | Signal | Through Hole | -55 °C | 125 °C | Gold | Brass | Polybutylene Terephthalate (PBT) | Black | 0.76 Ám | 30 Áin | Steel Tin-Nickel Plated |
