EPL.1S Series

Manufacturer: LEMO

Catalog

CONN CIRC RCPT 4POS GOLD SOLDER

Part	Insert Material	Number of Positions	Contact Material	Shell Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Orientation	Ingress Protection	Primary Material	Current Rating (Amps)	Connector Type	Fastening Type	Shielding	Features	Shell Size - Insert	Contact Finish - Mating	Material Flammability Rating	Shell Finish	Body Finish	Body Material	Dielectric Material	Center Contact Plating	Mating Cycles	Shield Termination	Impedance	Center Contact Material	Cable Group	Contact Termination	Housing Color	Connector Style

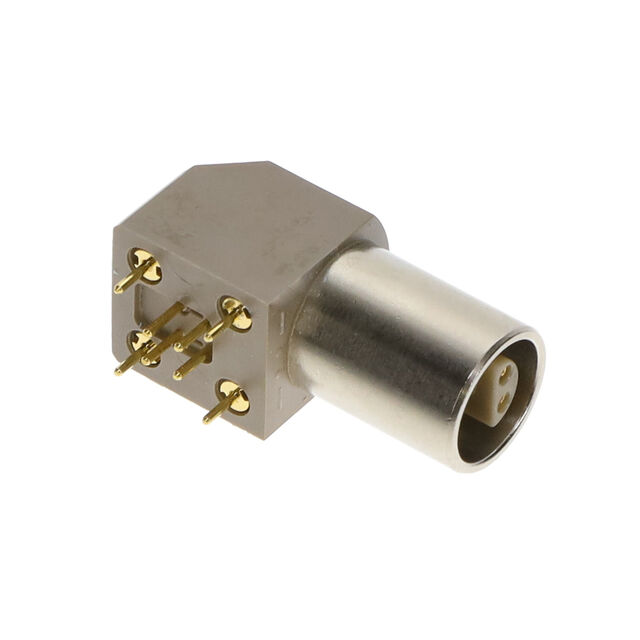

LEMO EPL.1S.304.HLN	Polyetheretherketone (PEEK)	4	Brass Bronze	Brass and Polyphenylene Sulfide (PPS)	Right Angle Through Hole	-55 C	250 °C	Solder	Keyed	IP50 - Dust Protected	Metal	6 A	Receptacle Female Sockets and Male Pins	Push-Pull	Shielded	Ground	304	Gold	UL94 V-0	Nickel
LEMO EPL.1S.306.HLN	Polyetheretherketone (PEEK)	6	Brass Bronze	Brass and Polyphenylene Sulfide (PPS)	Right Angle Through Hole	-55 C	250 °C	Solder	Keyed	IP50 - Dust Protected	Metal	6 A	Receptacle Female Sockets and Male Pins	Push-Pull	Shielded	Ground	306	Gold	UL94 V-0	Nickel
LEMO EPL.1S.275.NTN					Right Angle Through Hole	-55 C	250 °C			IP50 - Dust Protected			Receptacle Female Socket	Push-Pull							Nickel	Brass	Polytetrafluoroethylene (PTFE)	Gold	1000	Solder	75 Ohms	Beryllium Copper	179B 187A 223 302 400 59B RG-58C	Solder	Silver	Coaxial
LEMO EPL.1S.302.HLN	Polyetheretherketone (PEEK)	2	Brass Bronze	Brass and Polyphenylene Sulfide (PPS)	Right Angle Through Hole	-55 C	220 °C	Solder	Keyed	IP50 - Dust Protected	Metal	6 A	Receptacle Female Sockets and Male Pins	Push-Pull	Shielded	Ground	302	Gold	UL94 V-0	Nickel
