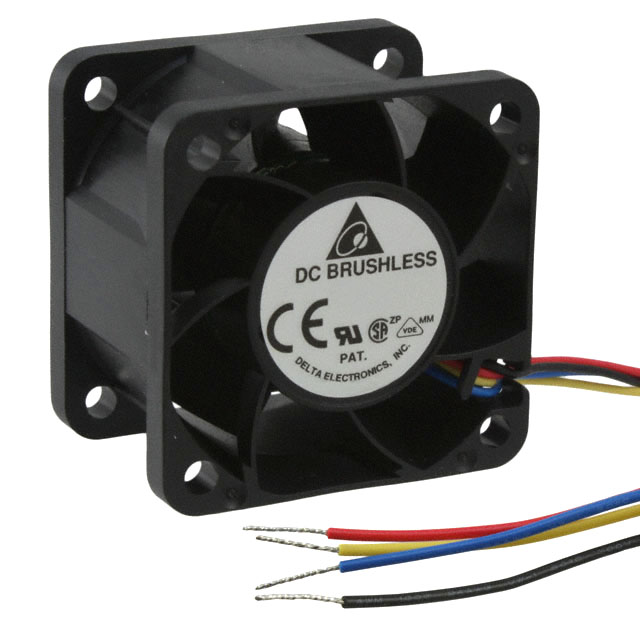

FFB0412 Series

Catalog

FAN AXIAL 40X28MM 12VDC WIRE

Part	Current Rating (Amps)	Material - Frame	Lifetime @ Temp.	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Termination	RPM	Bearing Type	Power (Watts)	Weight [custom]	Weight [custom]	Air Flow	Air Flow	Width [x]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Fan Type	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Voltage - Rated	Noise	Static Pressure	Static Pressure	Weight	Weight

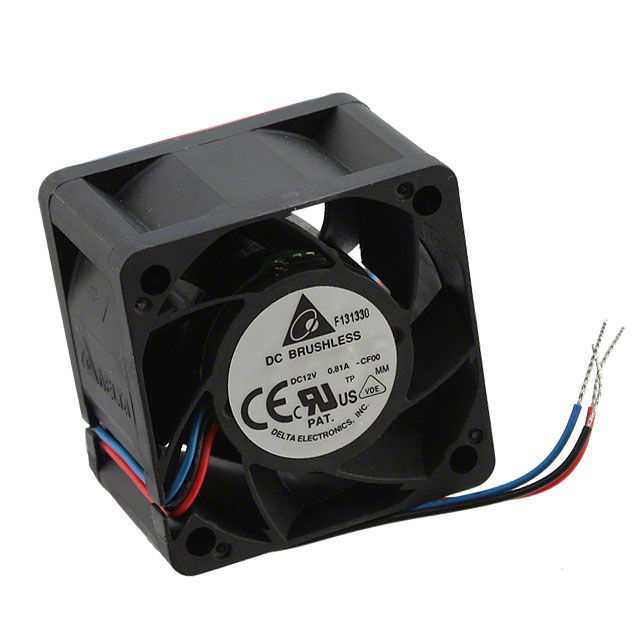

Delta Electronics FFB0412UHN-CF00	650 mA	Plastic	70000 Hrs	Plastic	5.5 VDC	13.2 VDC	3 Wire Leads	18500 RPM	Ball	7.8 W	47.17 g	0.104 lb	27.1 CFM	0.759 m³/min	28 mm	Locked Rotor Protection Speed Sensor (Tach)	70 °C	-10 °C	Tubeaxial	CE cURus VDE	40 mm	40 mm	12 VDC	58.5 dB	525.8 Pa	2.111 in H2O

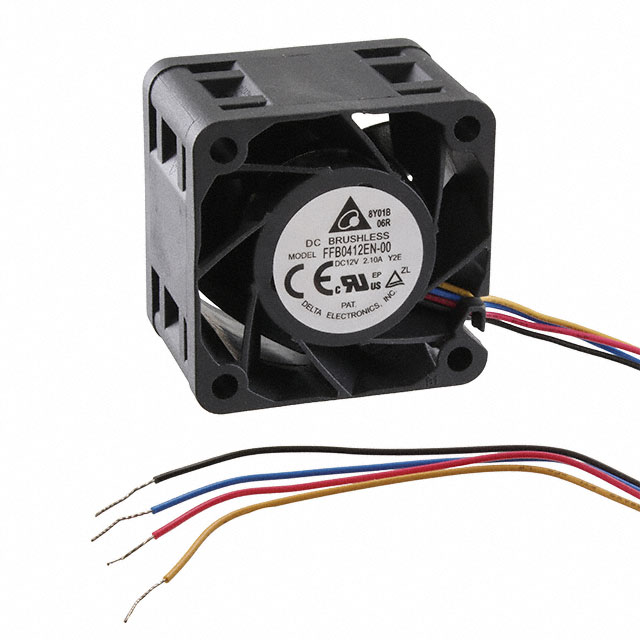

Delta Electronics FFB0412EN-00Y2E	1.45 A	Plastic	70000 Hrs	Plastic	10.8 VDC	13.2 VDC	4 Wire Leads	25000 RPM	Ball	17.4 W	51.26 g	0.113 lb	32.9 CFM	0.921 m³/min	28 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	70 °C	-10 °C	Tubeaxial	CE cURus TUV	40 mm	40 mm	12 VDC	64 dB(A)	1105.9 Pa	4.44 in H2O

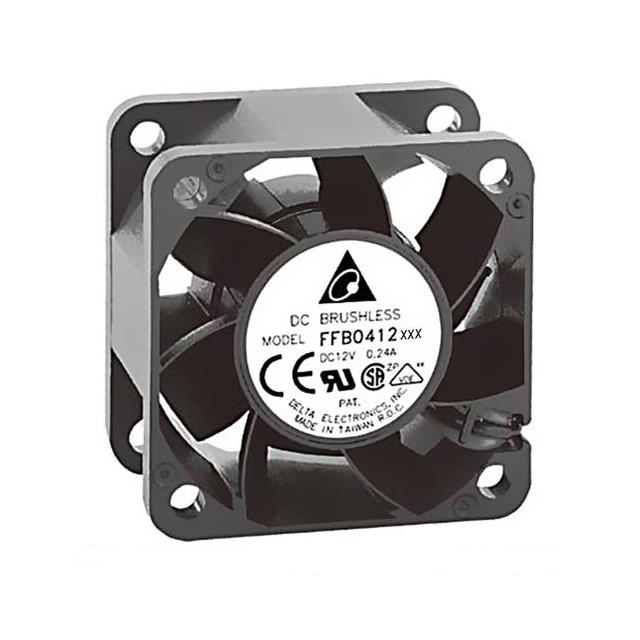

Delta Electronics FFB0412UHN-CR00

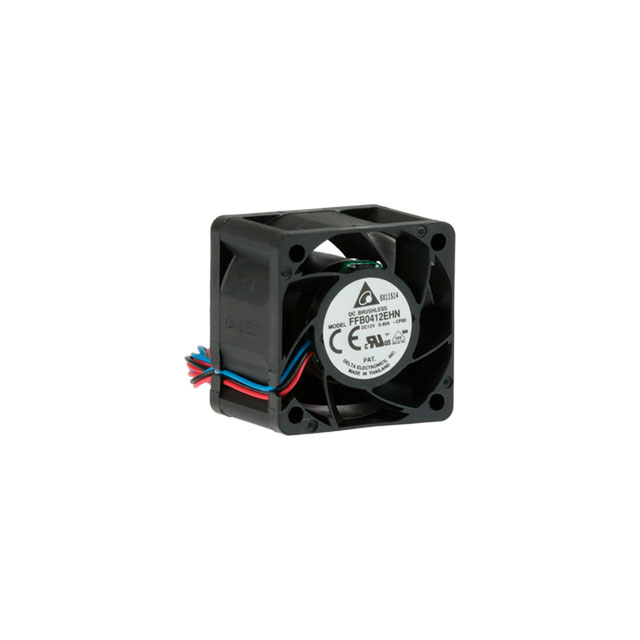

Delta Electronics FFB0412EHN-CF00	0.33 A	Plastic	70000 Hrs	Plastic	5.5 VDC	13.2 VDC	3 Wire Leads	14500 RPM	Ball	3.96 W	47.17 g	0.104 lb	20.3 CFM	0.568 m³/min	28 mm	Locked Rotor Protection Speed Sensor (Tach)	70 °C	-10 °C	Tubeaxial	CE cURus VDE	40 mm	40 mm	12 VDC	53 dB	306.9 Pa	1.232 in H2O

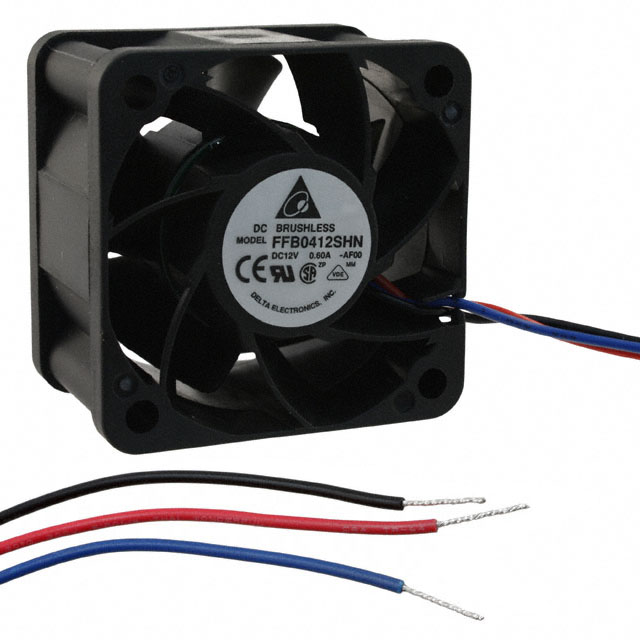

Delta Electronics FFB0412SHN-AF00	400 mA	Plastic	70000 Hrs	Plastic	4 VDC	12.6 VDC	3 Wire Leads	13000 RPM	Ball	4.8 W			23.1 CFM	0.647 m³/min	28 mm	Locked Rotor Protection Speed Sensor (Tach)	70 °C	-10 °C	Tubeaxial	CE CSA UL VDE	40 mm	40 mm	12 VDC	52.5 dB(A)	265.5 Pa	1.066 in H2O	0.078 lb	35.38 g

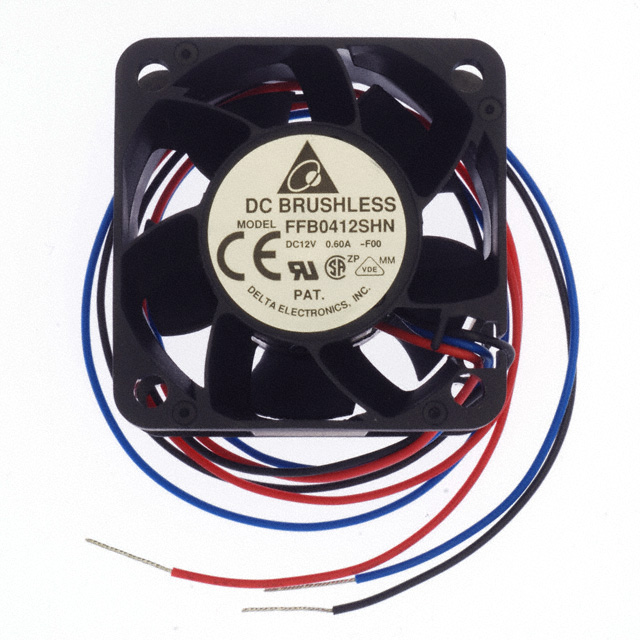

Delta Electronics FFB0412SHN-F00	0.5 A	Plastic	40 °C 50000 Hrs	Plastic	4 VDC	13.8 VDC	3 Wire Leads	13000 RPM	Ball	6 W	32.21 g	0.071 lb	24 CFM	0.672 mł/min	28 mm	Locked Rotor Protection Speed Sensor (Tach)	60 °C	-10 °C	Tubeaxial	CE CSA UL VDE	40 mm	40 mm	12 VDC	54.5 dB	267.8 Pa	1.075 in H2O
Delta Electronics FFB0412HHN	110 mA	Plastic	70000 Hrs	Plastic	4.5 V	13.8 VDC	2 Wire Leads	8000 RPM	Ball	1.32 W	32.21 g	0.071 lb	13.2 CFM	0.37 m³/min	28 mm		70 °C	-10 °C	Tubeaxial	CE CSA UL VDE	40 mm	40 mm	12 VDC	41 dB	92.2 Pa	0.37 in H2O
Delta Electronics FFB0412SHN-AR00	400 mA	Plastic	70000 Hrs	Plastic	4 VDC	12.6 VDC	3 Wire Leads	13000 RPM	Ball	4.8 W			23.1 CFM	0.647 m³/min	28 mm	Locked Rotor Sensor	70 °C	-10 °C	Tubeaxial	CE CSA UL VDE	40 mm	40 mm	12 VDC	52.5 dB(A)	265.5 Pa	1.066 in H2O	0.078 lb	35.38 g

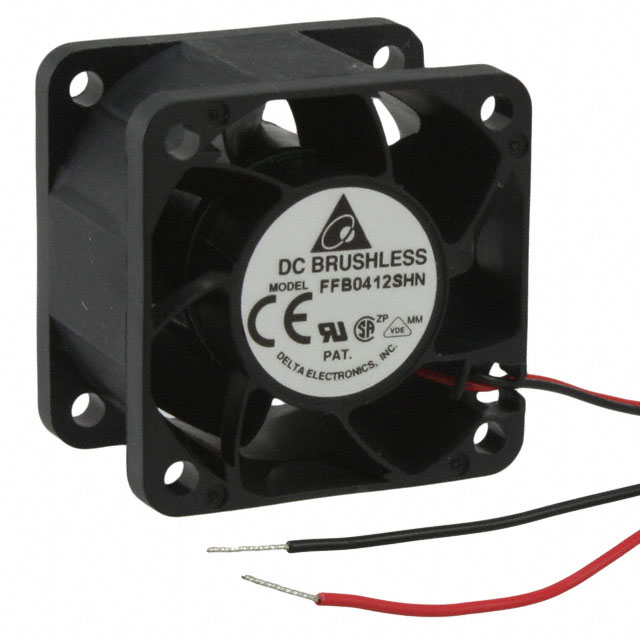

Delta Electronics FFB0412SHN	0.5 A	Plastic	40 °C 50000 Hrs	Plastic	4 VDC	13.8 VDC	2 Wire Leads	13000 RPM	Ball	6 W	32.21 g	0.071 lb	24 CFM	0.672 mł/min	28 mm		60 °C	-10 °C	Tubeaxial	CE CSA UL VDE	40 mm	40 mm	12 VDC	54.5 dB	267.8 Pa	1.075 in H2O
Delta Electronics FFB0412UHN-SP4Z	0.84 A	Plastic	70000 Hrs	Plastic	7 V	13.2 VDC	4 Wire Leads	23000 RPM	Ball	10.08 W			26.5 CFM	0.742 m³/min	28 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	70 °C	-10 °C	Tubeaxial	CE CSA UL VDE	40 mm	40 mm	12 VDC	59.9 dB(A)	784.7 Pa	3.15 in H2O	0.115 lb	52.16 g
