ANT9520 Series
Manufacturer: Pulse Electronics
Beta
⌘K

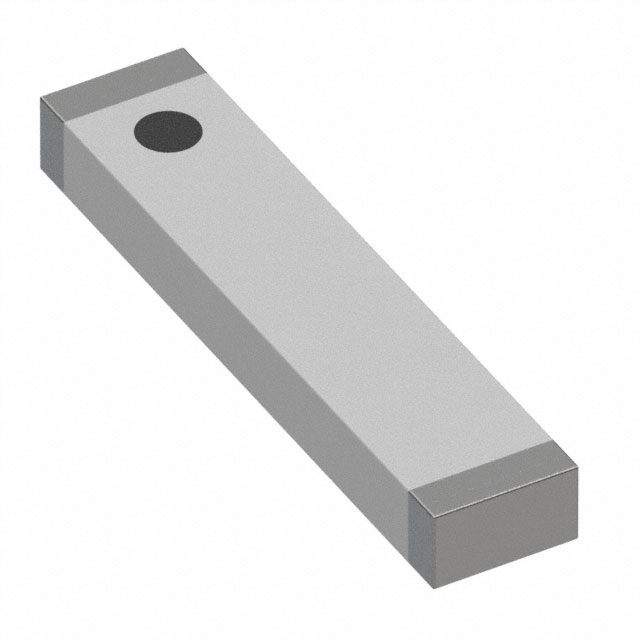

ANTENNAS 9520 2.4G CERAMIC HELIX CHIP ANTENNA, TYPE06
| Part | Power - Max | Frequency Group Minimum (UHF) | Frequency Group | Frequency Group Maximum (UHF) | Gain | Number of Bands | Mounting Type | Termination | Height (Max) | Frequency (Center/Band) | Applications | Antenna Type | Return Loss | RF Family/Standard | Frequency Range (Min) | Frequency Range (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 1 VA | 2 GHz | UHF | 3 GHz | 2.85 dBi | 1 | Surface Mount | Solder | 0.043 in | 2.45 GHz | Bluetooth ISM Wi-Fi Zigbee™ | Chip | 7.36 dB | 802.15.4 Bluetooth General ISM WiFi | 2.4 GHz | 2.5 GHz |
