SCNRF-6AAP Series
Manufacturer: Suntsu Electronics, Inc
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
CONN SMA JACK R/A 50 OHMS
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Dielectric Material | Body Finish | Center Contact Plating | Body Material | Voltage Rating | Number of Ports | Mounting Type | Impedance | Contact Termination | Connector Type | Frequency - Max | Housing Color | Center Contact Material | Fastening Type | Connector Style | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

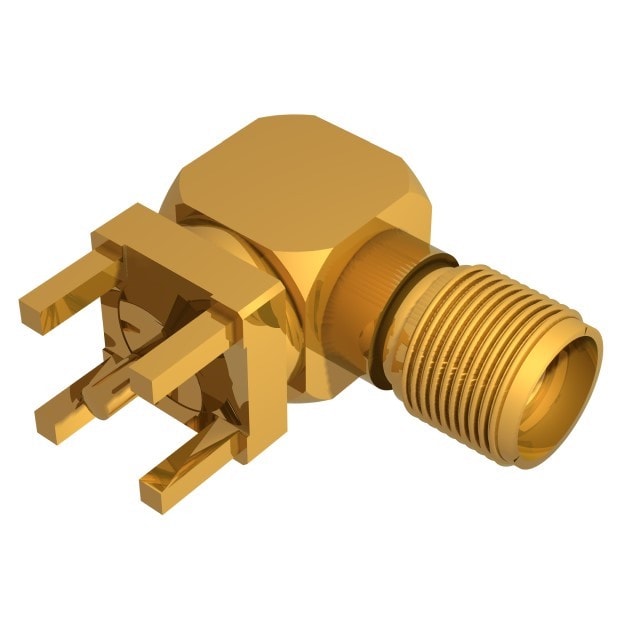

 Suntsu Electronics, Inc | -55 °C | 85 °C | Polytetrafluoroethylene (PTFE) | Gold | Gold | Brass | 335 V | 1 | Right Angle Through Hole | 50 Ohm | Solder | Female Socket Jack | 6000 MHz | Gold | Brass | Threaded | SMA | Solder |

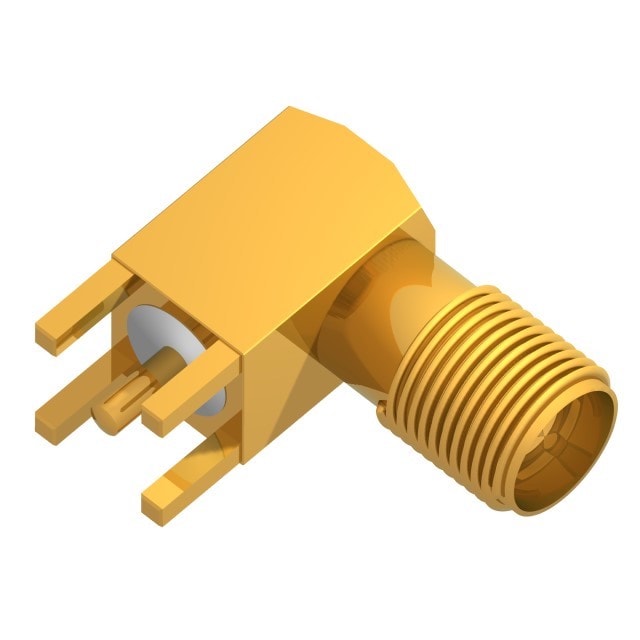

 Suntsu Electronics, Inc | -55 °C | 85 °C | Polytetrafluoroethylene (PTFE) | Gold | Gold | Brass | 335 V | 1 | Right Angle Through Hole | 50 Ohm | Solder | Female Socket Jack Male Pin | 6000 MHz | Gold | Brass | Threaded | RP-SMA | Solder |

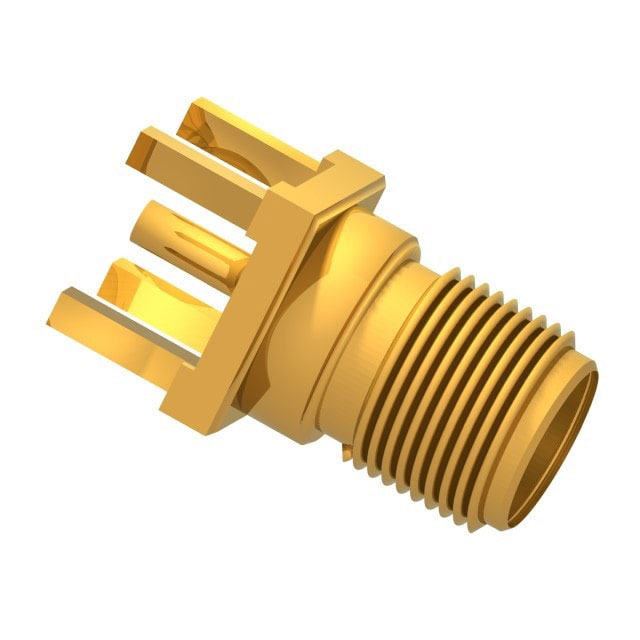

 Suntsu Electronics, Inc | -55 °C | 85 °C | Polytetrafluoroethylene (PTFE) | Gold | Gold | Brass | 335 V | 1 | Through Hole | 50 Ohm | Solder | Female Socket Jack | 6000 MHz | Gold | Brass | Threaded | SMA | Solder |
